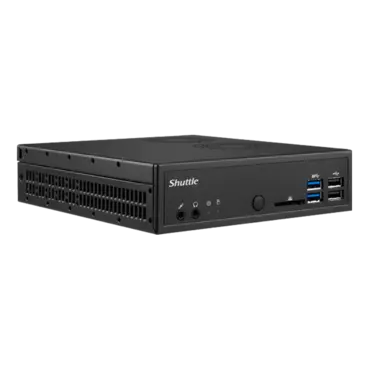

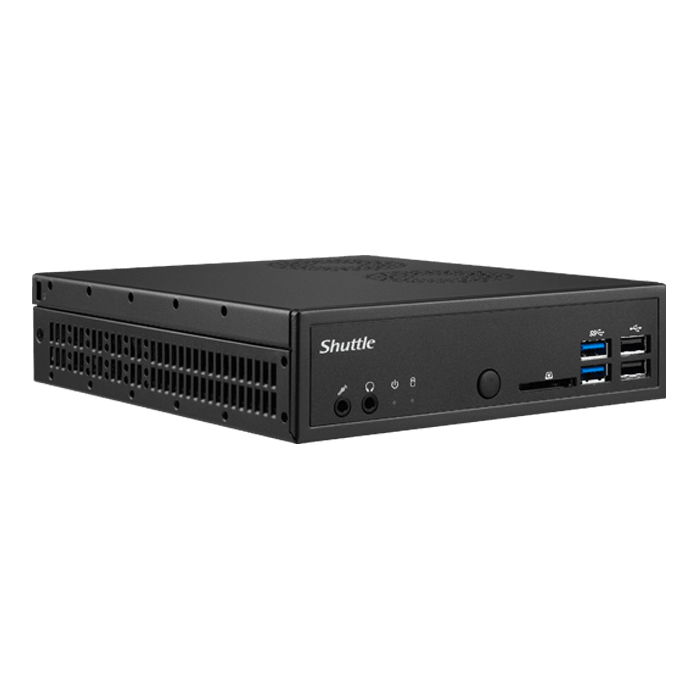

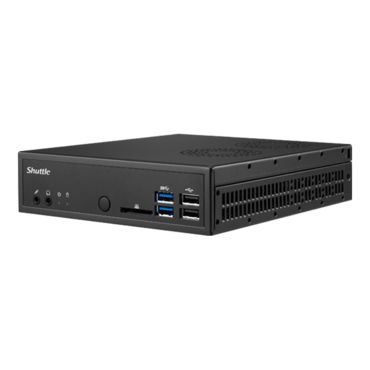

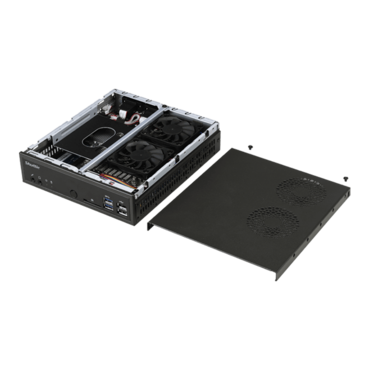

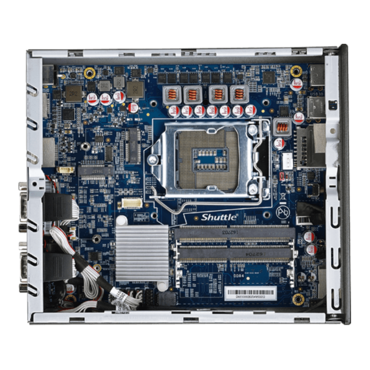

DH310S, Intel® H310 Chipset, 2x DDR4 SO-DIMM, 1x M.2 NVMe/SATA, 1x 2.5" HDD/SSD, 90W Power Adapter, Mini PC Barebone
Quantity:
- SKU: 12587823
- Manufacturer: SHUTTLE
- MPN: DH310S
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$276.19
- Easy to fit compact size for commercial applications in limited spaces
- Intel® 8th generation LGA1151v2 65W processors supported
- Supports dual independent displays with DisplayPort and HDM
| PROCESSOR | Supports Intel® Coffee Lake-S Core® i3/i5/i7, Pentium®, Celeron® CPU max. TDP 65W, LGA 1151v2 | |
| MEMORY | 2 x DDR4 2400/2666 MHz SODIMM slots, 16GB per DIMM (max 32GB) | |
| VIDEO OUTPUT | HDMI 2.0 + DisplayPort, Supports dual independent displays
4K playback (dual channel memory recommended) |
|
| AUDIO | Realtek ALC662 HD audio | |
| ETHERNET | Intel Chip i211 x 2 Dual LAN
10/100/1000 Mb/s |
Supports Wake-ON-LAN function
Supports Teaming function |
| STORAGE INTERFACE | SATA 6.0 GB/s interface | |
| ONBOARD CONNECTORS | (1) SATA connector w/ power
(1) 4 pin fan connectors (1) RS232 voltage switch |
(1) VGA connector (for PVG01 use)
(1) Auto power on header (1) Front audio header |

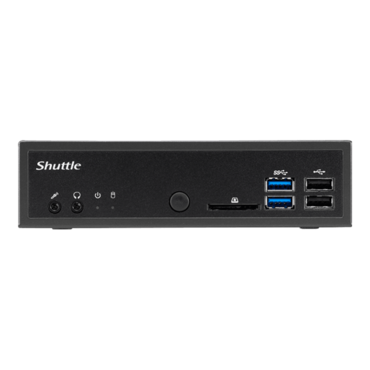

| FRONT PANEL | (1) Power Button
(1) Power LED (1) HDD LED (2) USB 2.0 ports |
(2) USB 3.1 Gen 1 ports
(1) MIC-in (1) External headphone jack 1/8" (1) SD Card Reader |

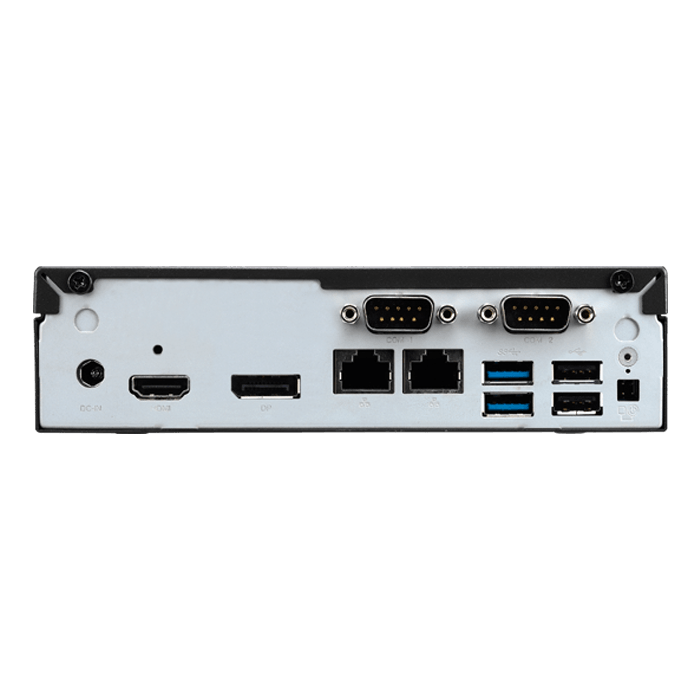

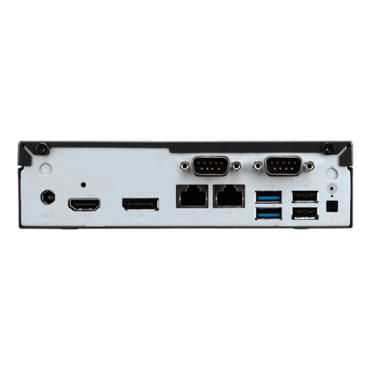

| BACK PANEL | (1) External 4 pin header
(2) USB 3.1 Gen 1 ports (2) USB 2.0 ports (1) HDMI 2.0 port (1) DisplayPort (2) RJ45 Gigabit LAN port |
(1) Kensington Lock
(1) RS232* (1) RS232/RS422/RS485* (2) Wireless antenna fixture (1) DC-in |
| DRIVE BAYS | (1) 2.5" HDD/SSD drive bay | |
| DIMENSIONS | 7.5(L) x 6.5(W) x 1.7(H) inches | |
| POWER | Input: 100 - 240V AC
Output: 19V 4.74A DC or 12V/7.5A DC |
90W power adapter |
| ACCESSORIES | Quick Guide
Driver DVD Power cord Screws |
VESA mount
VESA mount quick guide SATA cable 802.11 b/g/n WLAN module (optional) |
| EXPANSION SLOT | (1) M.2 2230 Type E key socket | (1) M.2 2280 Type M slot |
| OS SUPPORT | Windows 10 64 bit, Linux | |
