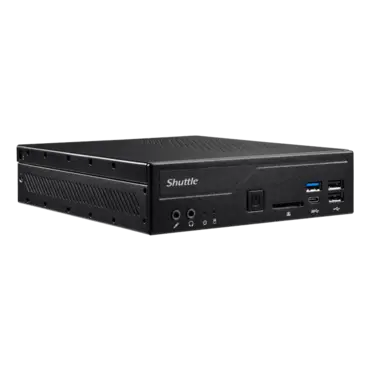

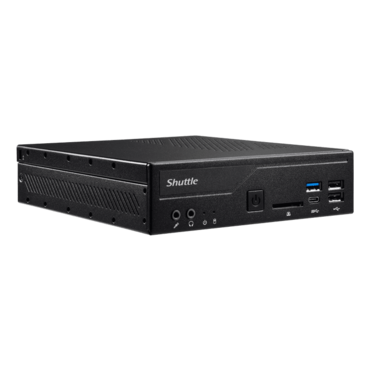

DH410S, Intel® H410 Chipset, 2x DDR4 SO-DIMM, M.2, 2.5" HDD/SSD, Intel® UHD Graphics, Slim PC Barebone
Quantity:
- SKU: 13949579
- Manufacturer: SHUTTLE
- MPN: DH410S
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$321.94
| FORM FACTOR | 1.3L chassis |
|---|---|
| PROCESSOR | Support Cometlake-s LGA1200 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor |
| CHIPSET | Intel H410 Express chipset |
| MEMORY |
2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 2666/2933 MHz |
| VIDEO OUTPUT |
HDMI 1.4 + DisplayPort, Dual video output 4K playback (Dual channel memory recommended) Integrated in CPU |
| AUDIO | Realtek ALC662 High Definition Audio |
| ETHERNET |
Realtek RTL8111H 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface |
| ONBOARD CONNECTORS |
(1) 4pin fan connector (1) 1x4 pin USB header (1) VGA(For PVG01 use) (1) SATA connector w/power (1) Front audio header (1) Auto power on header |
| FRONT PANEL |
(2) USB 2.0 ports (2) USB 3.2 Gen1 ports (Type C+Type A) (1) Microphone-In (1) Earphone-Out (1) Power button (1) Power LED (1) HDD LED (1) SD Card reader |
| BACK PANEL |
(1) RJ45 Gigabit LAN port w/LED (1) HDMI port (1) Display port (2) USB 2.0 ports (2) USB 3.2 Gen1 ports (1) External power on/Clear CMOS header (1) DC-in (2) Wireless Antenna fixture (1) Kensington lock |
| DRIVE BAYS | (1) 2.5" HDD / SSD bay |
| DIMENSIONS | 190(L) x 165(W) x 43(H) mm |
| POWER |
90W Power Adapter Input:100- 240V AC 19V 4.74A DC |
| ACCESSORIES |
XPC Multilanguage Quick User Guide XPC DVD Driver Power cord Thermal Grease HDD Screw pack 90W adapter |
| EXPANSION SLOT |
(1) M.2 2280/60/42 Type M key socket (1) M.2 2230 Type E key socket |
| OS SUPPORT |
Windows 10 64 bit O.S Linux |
