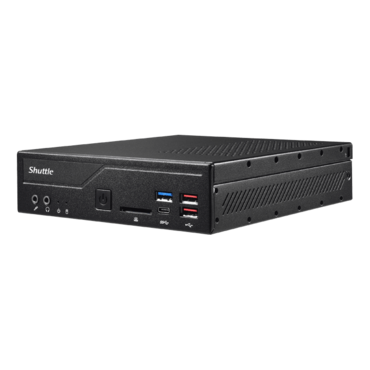

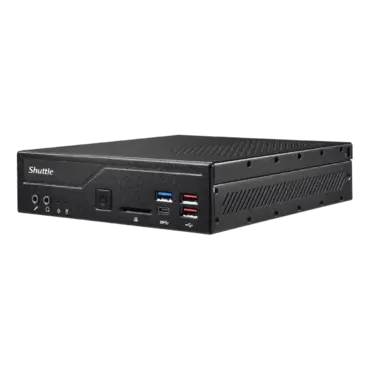

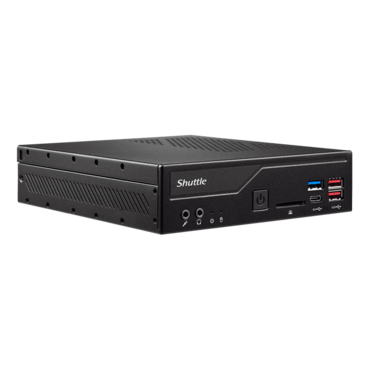

DH670, LGA 1700, 2x DDR4 SO-DIMM, M.2, 2.5" HDD/SSD, 2x COM, 2x HDMI, 2x DP, Slim Embedded PC Barebone

DH670, LGA 1700, 2x DDR4 SO-DIMM, M.2, 2.5" HDD/SSD, 2x COM, 2x HDMI, 2x DP, Slim Embedded PC Barebone

SKU: 15068993
Manufacturer: SHUTTLE
MPN: DH670
Availability: CONTACT US

Price

$451.65

PROCESSOR	Supports Intel® Alder Lake-S® i3/i5/i7/i9 series, Pentium, and Celeron® LGA 1700 65W processors
MEMORY	2 x DDR4 3200 MHz. Supports dual channel up to 64GB (32GB x 2)
VIDEO GRAPHICS	Intel HD Graphics
VIDEO OUTPUT	HDMI 2.0 x 2 + DisplayPort x 2, Supports four independent displays, Supports 4K Ultra HD
AUDIO	Realtek ALC662/897/888S HD audio
ETHERNET	Intel i210/i211 x 2 Dual LAN 10/100/1000 MB/s operation	Supports Wake on LAN function Supports Teaming mode
STORAGE INTERFACE	SATA 6 GB/s
ONBOARD CONNECTORS	(1) 4 pin fan connector (1) VGA (for PVG01 use) (1) 1x4 pin USB header (for WWN03) (1) RS232 voltage switch	(1) SATA connector w/ power (1) Front audio header (1) Auto power on header

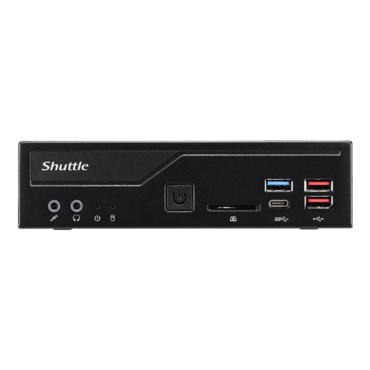

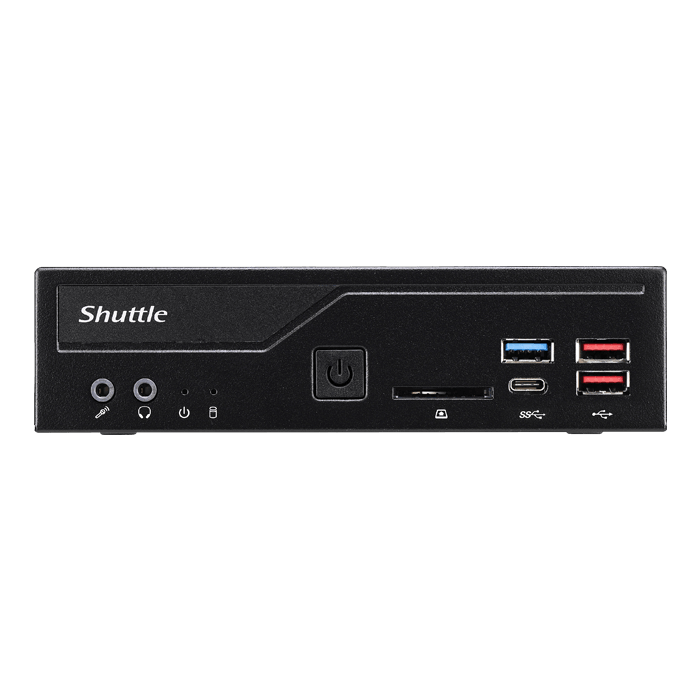

FRONT PANEL	(1) Power Button (1) Power LED (1) HDD LED (2) USB 3.2 Gen 1 (Type-C x 1)	(2) USB 3.2 Gen 2 (1) External microphone jack 1/8" (1) External headphone jack 1/8" (1) SD Card Reader

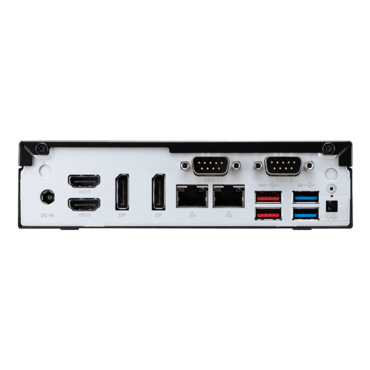

BACK PANEL	(2) HDMI 2.0b (2) DisplayPort (2) USB 3.2 Gen 1 (2) USB 3.2 Gen 2 (2) Gigabit LAN ports w/ LED (2) Kensington Lock	(1) RS232/RS422/RS485* (1) RS232* (1) External 4 pin header (2) Wireless Antenna holes (1) DC-in
DRIVE BAYS	(1) 2.5" HDD/SSD bay
DIMENSIONS	7.5(L) x 6.5(W) x 1.7(H) inches
POWER	Input: 100 - 240V AC Output: 19V/6.32A DC	120W power supply
ACCESSORIES	Quick Guide Screw package Power cord Driver DVD	VESA mount VESA mount quick guide Thermal grease HDD screw pack
EXPANSION SLOT	(1) M.2 2280 Type M	(1) M.2 2230 Type E key socket
OS SUPPORT	Windows 10/11 64 bit, Linux
