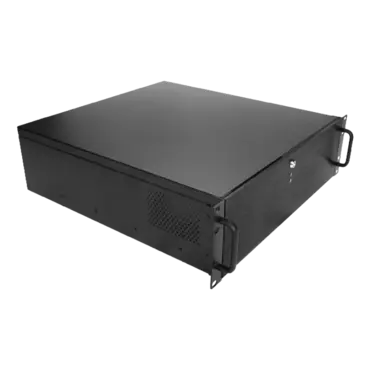

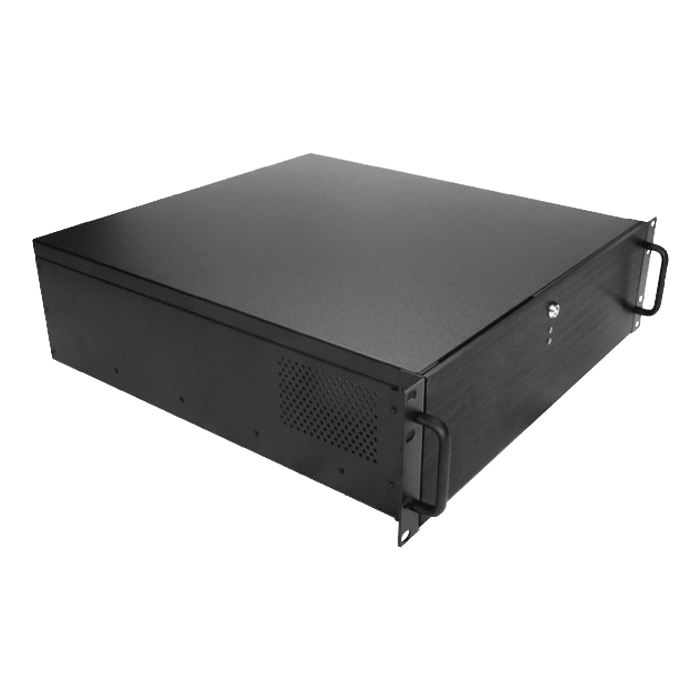

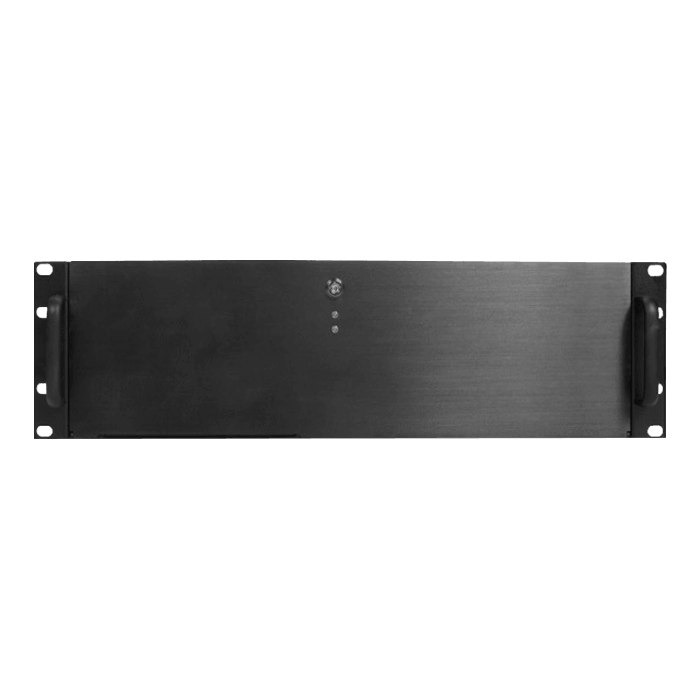

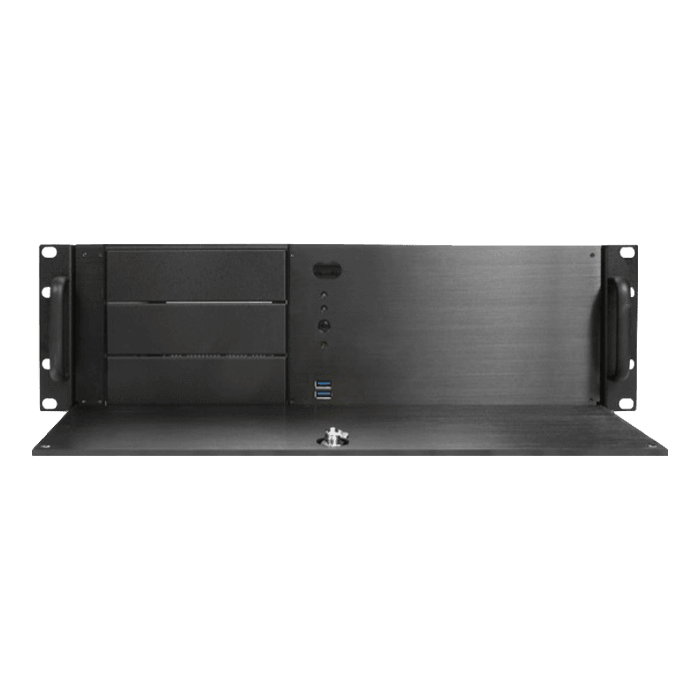

- Sleek aluminum front bezel with key lock design
- Supports standard ATX and mini redundant power supply

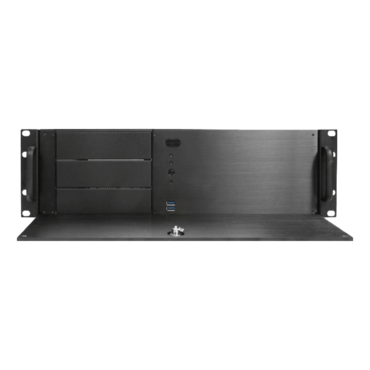

- Standard 3x 5.25" bays available
- 2x USB 3.0 ports in front for easy access
- Rackmount and desktop convertible
Model Number | DN-300 |
RoHS Compliance Version | Yes |
Form factor | 3 U |

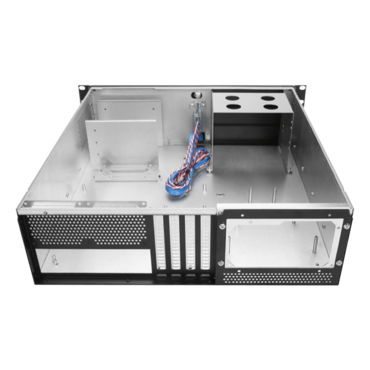

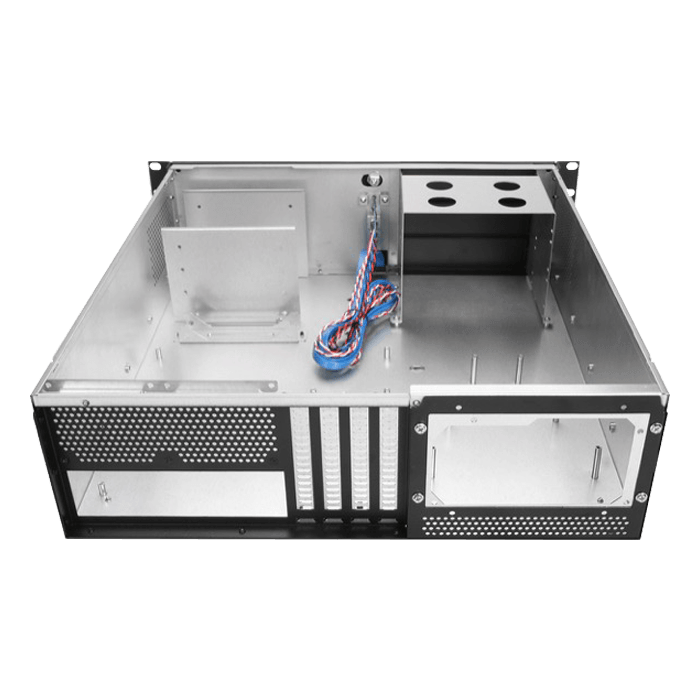

Standard Drive Bays | 3.5" Drive (internal): 4
5.25" Drives: 3 |
Indicators | Power, HDD |
Switches | Power |
Supported PSU Type | ATX PS2/ mini-Redundant |

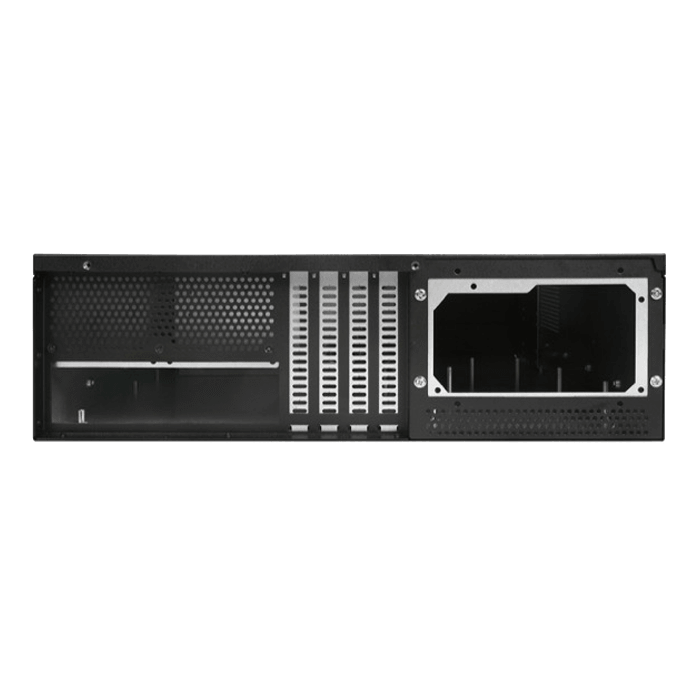

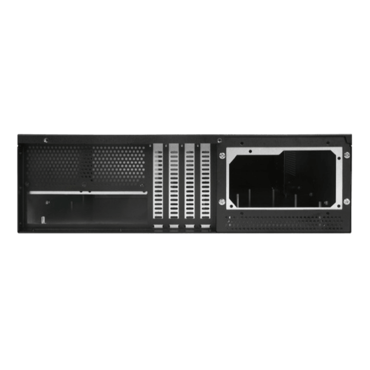

Expansion Slots | 4 |
Security | Key Lock |
Material of Front Bezel | Aluminum |
Material of Handle | Aluminum |
Material of Main Chassis | SGCC 1.0mm |
Color of Front Bezel | Black |
Color of Main Chassis | Black |
Front Connector | 2x USB 3.0 |
Motherboard Size | 9.6 x 9.6 (microATX, mini-ITX) |
Optional Fan: | 120mm x1, 80mm x2 |
Dimensions (WxHxD) | 18.98" x 5.25" x 19.26"
482.1 mm x 133.3 mm x 489.2 mm |
Notes | - if sliding rails will be used, please check the rail loading capacity if suitable for the system configuration. |
