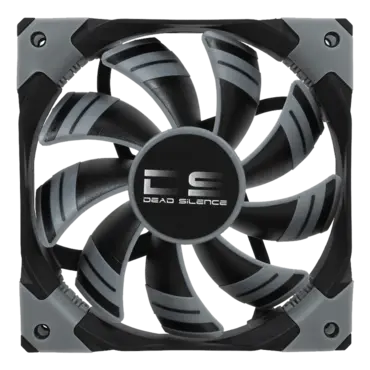

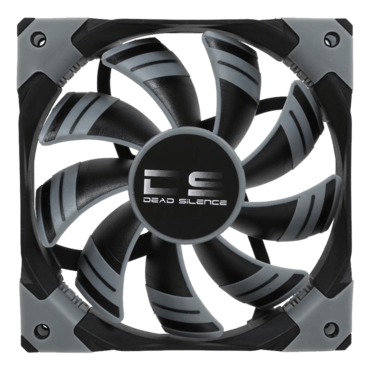

DS 120mm Black, 1500 RPM, 81.5 CFM, 23.1 dBA, Cooling Fan

SKU: 8725311

Manufacturer: AEROCOOL

MPN: DS 120mm Black

Availability: Available


Price: $16.08
or as low as $1/month
Quantity:
  • One of world’s most Silence fan with breakthrough technology and innovation.
  • Beautifully finished “Dual Color and Dual Material Fan” with four color combinations and LEDs.
  • The world’s first dual-layered fan blades - combination of plastic and rubber fan blades to absorb “Wind” noise.
  • “Golf Ball” surface design on the back rubber side of the fan blades to minimize the air turbulence.
  • Optimized fan blade angle design for a perfect balance of airflow and noise.
  • Noise and shock reduction fan frame incorporating four Silencer Blocks and anti-vibration rubber pads on each mounting holes.
  • Fluid Dynamic Bearing (FDB) delivers longer life span, higher precision rotation and anti-shock function.
  • Low starting voltage of 3V.
  • Four Anti-vibration screws are included for easier installation.
  • Power cables are "black" sleeved with both 3pin and Molex 4pin connectors.
  • Low speed 7V Voltage Reduction Cable included for ultra-low speed with unrecognizable noise.
DS-120mm Black
Dimensions 120 X 120 X 25mm
Net Weight 170g
Gross Weight 240g (Retail box included)
Bearing System FDB (Fluid Dynamic Bearing)
Rated Voltage 12V
Starting Voltage 3.0V
Rated Current 0.3A
Power Consumption 3.6W
Power Connector  3Pin with signal cable
Accessories 3pin to Molex 4pin adapter x1
7V voltage reduction 3pin adapter x1
Screws x4
Rubber rivet x4
MTBF 100,000 hours
Performance 12V 7V
Speed (US/Canadian version) 1500 RPM±10% 1100 RPM±10%
Air Flow 81.5 CFM (138.1 m³/h) 62.5 CFM (105.9 m³/h)
Air Pressure 2.29 mm H2O 1.25 mm H2O
Noise 23.1dBA 14.8 dBA
