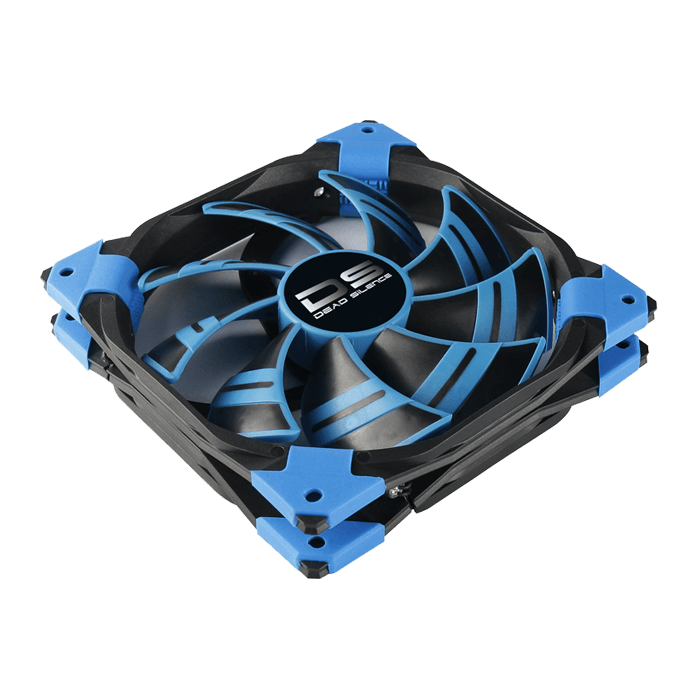

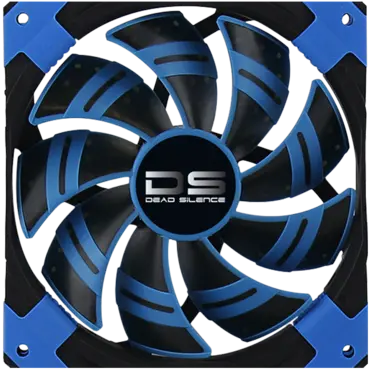

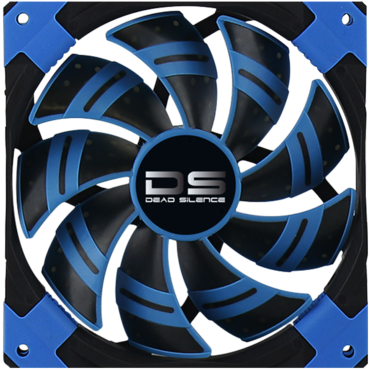

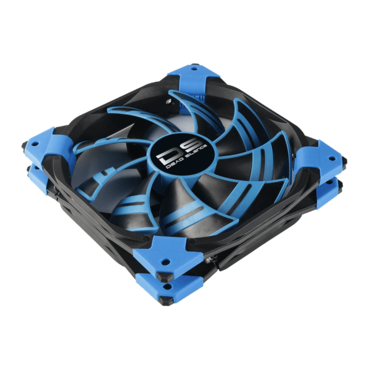

DS 120mm, Blue LEDs, 1500 RPM, 81.5 CFM, 23.1 dBA, Cooling Fan
Quantity:
- SKU: 8725672
- Manufacturer: AEROCOOL
- MPN: DS 120mm Blue
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$22.97
- One of world’s most Silence fan with breakthrough technology and innovation.
- Beautifully finished “Dual Color and Dual Material Fan” with four color combinations and LEDs.
- The world’s first dual-layered fan blades - combination of plastic and rubber fan blades to absorb “Wind” noise.
- “Golf Ball” surface design on the back rubber side of the fan blades to minimize the air turbulence.
- Optimized fan blade angle design for a perfect balance of airflow and noise.
- Noise and shock reduction fan frame incorporating four Silencer Blocks and anti-vibration rubber pads on each mounting holes.
- Fluid Dynamic Bearing (FDB) delivers longer life span, higher precision rotation and anti-shock function.
- Low starting voltage of 3V.
- Four Anti-vibration screws are included for easier installation.
- Power cables are "black" sleeved with both 3pin and Molex 4pin connectors.
- Low speed 7V Voltage Reduction Cable included for ultra-low speed with unrecognizable noise.
| DS-120mm Blue | ||
| Dimensions | 120 X 120 X 25mm | |
| Net Weight | 170g | |
| Gross Weight | 240g (Retail box included) | |
| Bearing System | FDB (Fluid Dynamic Bearing) | |
| Rated Voltage | 12V | |
| Starting Voltage | 3.0V | |
| Rated Current | 0.3A | |
| Power Consumption | 3.6W | |
| Power Connector | 3Pin with signal cable | |
| Accessories | 3pin to Molex 4pin adapter x1 7V voltage reduction 3pin adapter x1 Screws x4 Rubber rivet x4 |
|
| MTBF | 100,000 hours | |
| Performance | 12V | 7V |
| Speed (US/Canadian version) | 1500 RPM±10% | 1100 RPM±10% |
| Air Flow | 81.5 CFM (138.1 m³/h) | 62.5 CFM (105.9 m³/h) |
| Air Pressure | 2.29 mm H2O | 1.25 mm H2O |
| Noise | 23.1dBA | 14.8 dBA |
