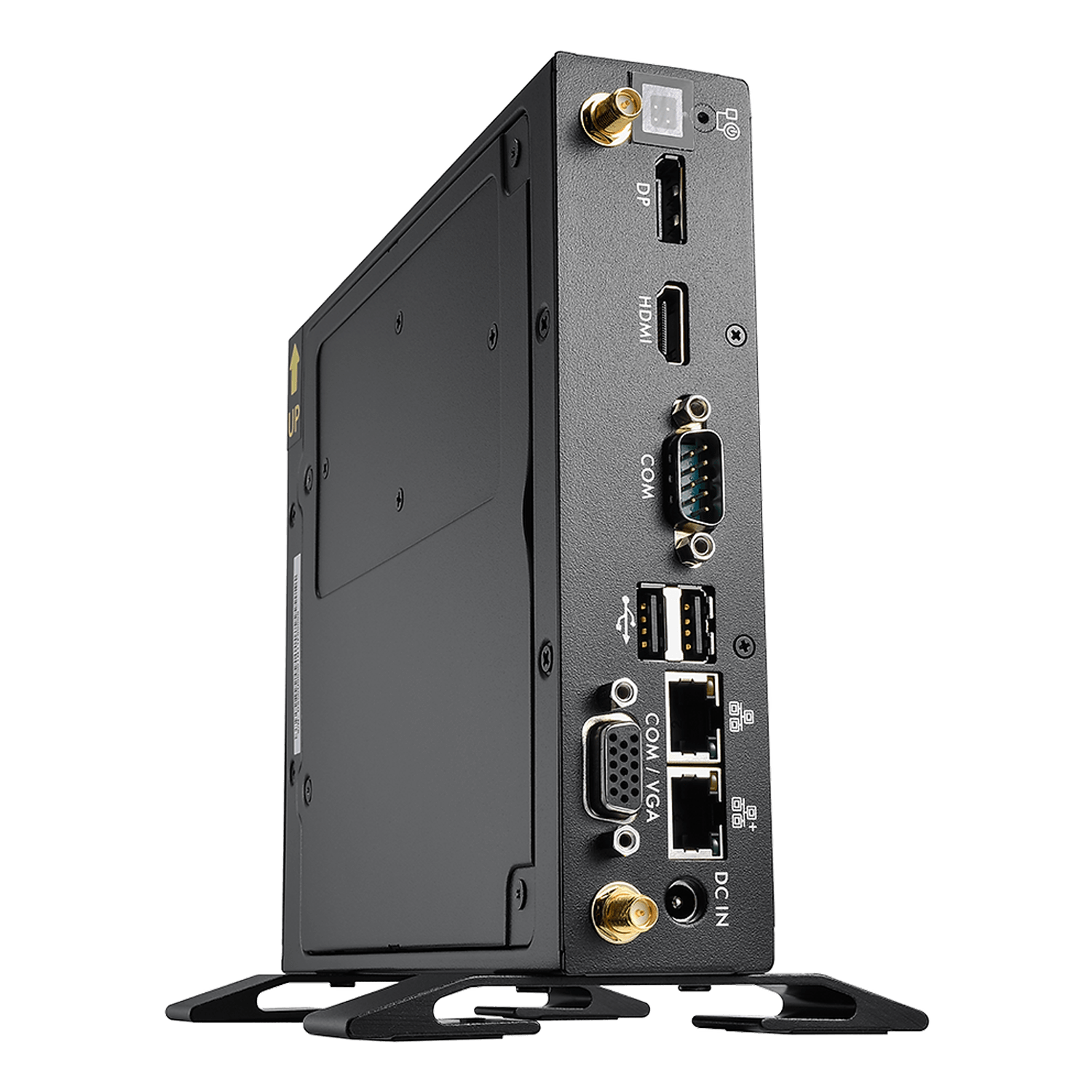

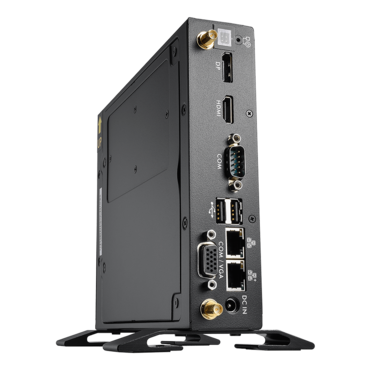

DS50U3, Intel® Core™ i3-1315U, 2x DDR5 SO-DIMM, M.2, 2.5" HDD/SSD, Intel® Iris® Xe Graphics, Fanless Slim PC Barebone
- SKU: 18345267
- Manufacturer: SHUTTLE
- MPN: DS50U3
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$860.24
DS50U3, Intel® Core™ i3-1315U, 2x DDR5 SO-DIMM, M.2, 2.5" HDD/SSD, Intel® Iris® Xe Graphics, Fanless Slim PC Barebone
The DS50U fanless computer series is a fanless 1.3-litre slim PC with a robust metal chassis and excellent connectivity. It supports dual UHD/4K video, traditional D-Sub/VGA connectivity, and an Intel "Raptor-Lake-U" processor for 2160p/60 video. Installation is easy with space for memory, a 2.5" drive, and an M.2-2280 SSD. Offering high performance and energy efficiency, it's approved for 24/7 use, perfect for digital signage, POS, Kiosks, Thin Clients, Office PC, and Multimedia
| FORM FACTOR | Shuttle 1.3L Chassis |
| PROCESSOR | Intel Alder Lake-U Celeron 7305 Intel Raptor lake-U Core i3-1315U Intel Raptor lake-U Core i5-1335U Intel Raptor lake-U Core i7-1355U |
| MEMORY | 2 x 262 pin DDR5 SODIMM slots, 32GB per DIMM (Max 64GB) Dual Channel DDR5 up to 5200Mhz |
| VIDEO OUTPUT | (1)HDMI 2.0b + (1)DisplayPort 1.4 + (1) VGA video outputs Support triple independent display |
| AUDIO | Realtek ALC888S 2 channel High Definition Audio |
| ETHERNET | (1)Intel GbE Lan / (1)Intel 2.5 GbE Lan 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function Support Teaming function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface NVMe interface |
| ONBOARD CONNECTORS | (1) 2.5 inch SATA connector (1) USB2.0 header (1) Auto Power on Jumper (1) RS232 voltage switch (1) External 4 pin header |

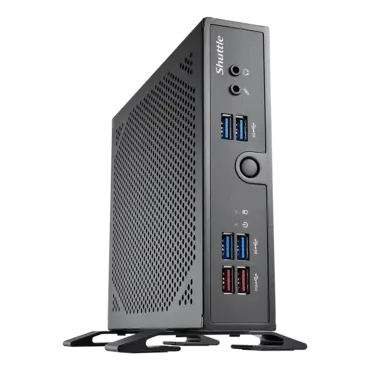

| FRONT PANEL | (1) Power on button (1) Power LED (1) HDD LED (2) USB 3.2 Gen2 (4) USB 3.2 Gen1 (1) Mic in (1) Headphone out |

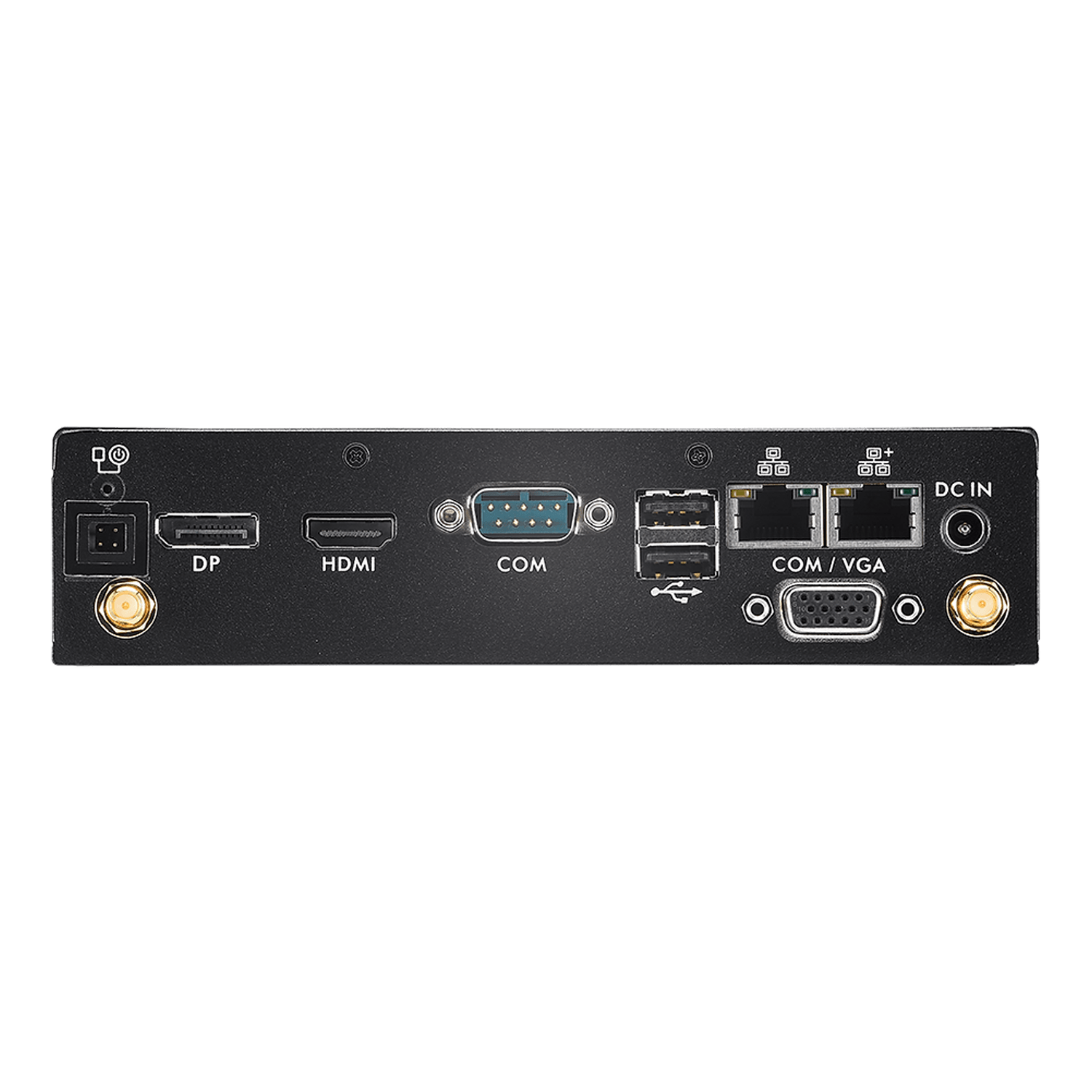

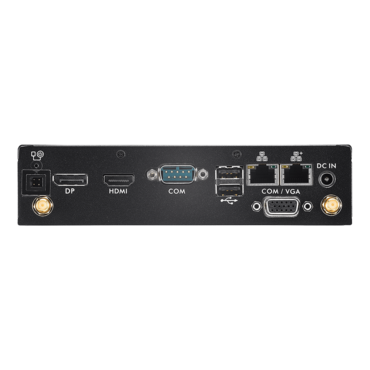

| BACK PANEL | (2) RJ45 LAN (1) HDMI (1) DisplayPort (1) VGA (1) RS232/RS422/RS485 (2) USB 2.0 (1) External 4 pin header (Clear CMOS/Power Switch/5V) (1) DC-in (1) Kensington lock (2) Antenna fixture |
| DRIVE BAYS | (1) 2.5" HDD / SSD bay |
| DIMENSIONS | 200(L) x 165(W) x 39.5(H) mm |
| POWER | 90W 19V Adapter bundled Input:100- 240V AC |
| ACCESSORIES | XPC Multilanguage Quick User Guide XPC DVD Driver Food stand VESA mount VESA Screw pack Power cord Thermal Grease HDD Screw pack 90W adapter |
| EXPANSION SLOT | (2) M.2 2280 Type M key socket (1) M.2 2230 Type E Key socket |
| OS SUPPORT | Windows 11 Linux |
| GRAPHICS | Integrated Intel® Iris® Xe (Feature depends on processor) |
| NET WEIGHT | NW:1.6 kg GW:2.85 kg |
| CERTIFICATION | Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI , RCM , VCCI , UKCA |
| OPERATING TEMPERATURE | 0°C~40°C |
