Home › Components › Barebones › Network Attached Storage (NAS) › Desktop NAS

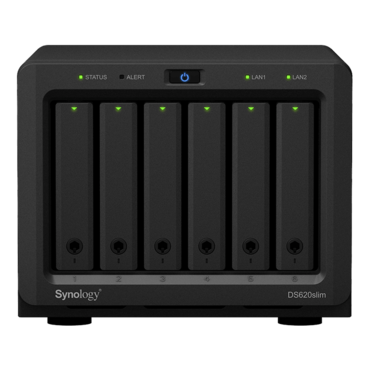

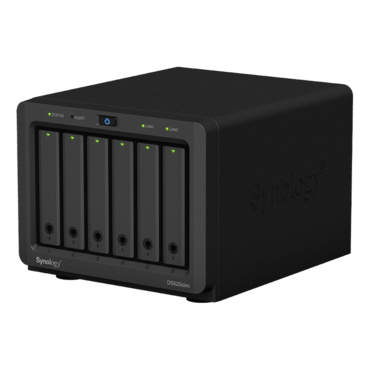

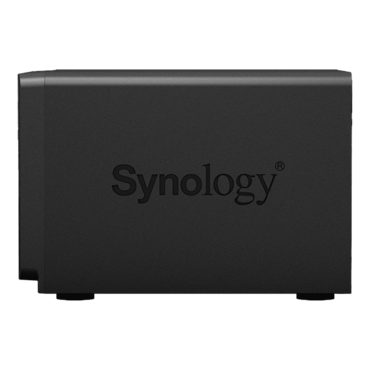

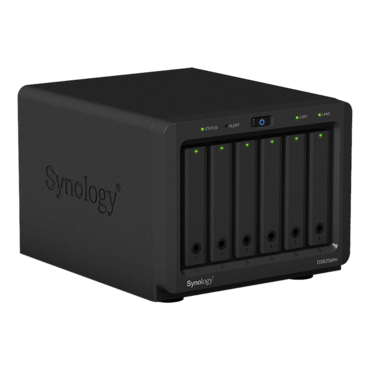

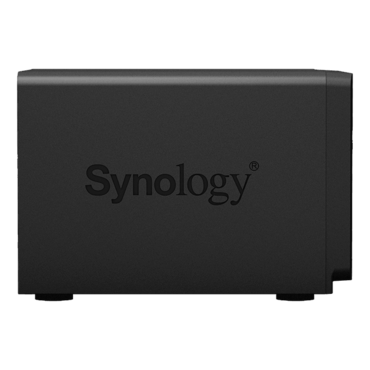

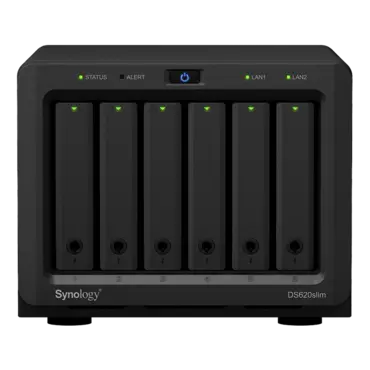

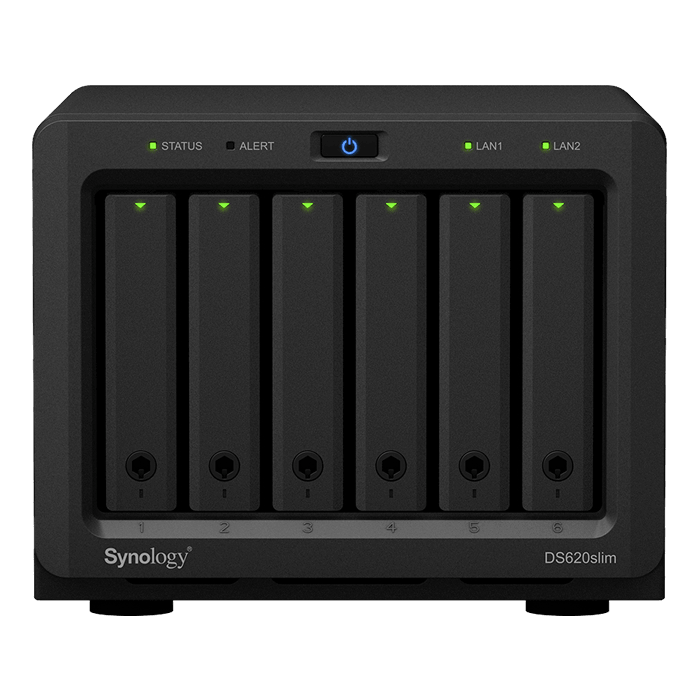

DS620slim 6-bay NAS Server, Intel® Celeron® J3355 2-core 2.5 GHz, 6GB DDR3 RAM (2GB pre-installed), SATA 6Gb/s, GbLAN / 2, USB 2.0 / 2, 65W PSU

DS620slim 6-bay NAS Server, Intel® Celeron® J3355 2-core 2.5 GHz, 6GB DDR3 RAM (2GB pre-installed), SATA 6Gb/s, GbLAN / 2, USB 2.0 / 2, 65W PSU

SKU: 12904532
Manufacturer: SYNOLOGY
MPN: DS620SLIM
Availability: CONTACT US

Price

$540.78

CPU	CPU Model	Intel Celeron J3355
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	2-core 2.0 (base) / 2.5 (burst) GHz
	Hardware Encryption Engine (AES-NI)	✔
	Hardware Transcoding Engine	H.264 (AVC), H.265 (HEVC), MPEG-2 and VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 30
Memory	System Memory	2 GB DDR3L non-ECC SODIMM
	Memory Module Pre-installed	2 GB (2 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	6 GB (2 GB + 4 GB)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage	Drive Bays	6
	Compatible Drive Type	2.5" SATA HDD 2.5" SATA SSD
	Hot Swappable Drive	✔
	Notes	"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

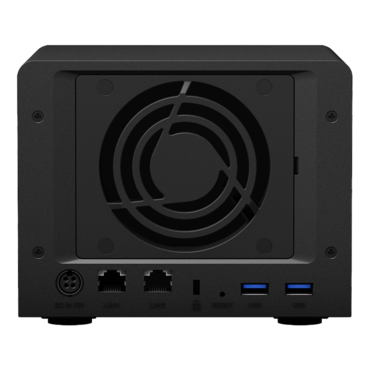

External Ports	RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support)
	USB 3.2 Gen 1 Port*	2
	Notes	The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
	Notes	exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance	Size (Height x Width x Depth)	121 mm x 151 mm x 175 mm
Appearance	Weight	1.4 kg
Others	System Fan	80 mm x 80 mm x 1 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan	✔
	Brightness Adjustable Front LED Indicators	✔
	Power Recovery	✔
	Noise Level*	20.5 dB(A)
	Scheduled Power On / Off	✔
	Wake on LAN / WAN	✔
	Power Supply Unit / Adapter	65 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption*	34.88 W (Access) 7.59 W (HDD Hibernation)
	British Thermal Unit	119.1 BTU/hr (Access) 25.92 BTU/hr (HDD Hibernation)
	Notes	Power consumption is measured when it is fully loaded with Western Digital 1TB WD10JFCX hard drive(s). Noise Level Testing Environment: Fully loaded with WD 1TB WD10JFCX hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 17.2 dB(A); Temperature: 23.6°C; Humidity: 58.2%.
Temperature	Operating Temperature	5°C to 40°C (40°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI EAC VCCI RCM
Warranty	2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
Warranty	Notes	Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories	DDR3 non-ECC SODIMM: D3NS1866L-4G 2.5" SATA SSD: SAT5210 VisualStation: VS360HD Surveillance Device License Pack
