DWM60100XX Swivel/Tilt Wall Mount for 60" to 100" TVs and Monitors, UL Certified

  • SKU: 9511468
  • Manufacturer: TRIPP LITE
  • MPN: DWM60100XX
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
DWM60100XX Swivel/Tilt Wall Mount for 60" to 100" TVs and Monitors, UL Certified

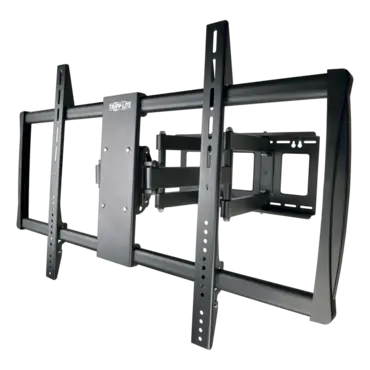

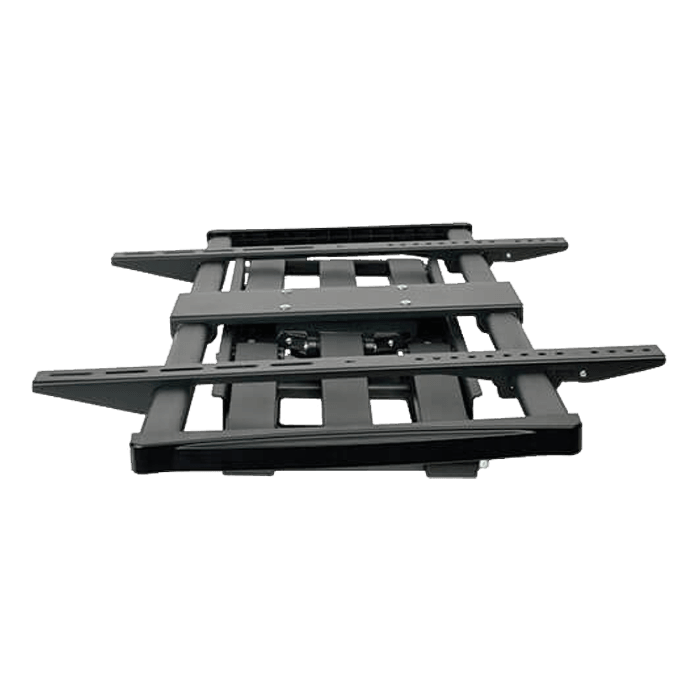

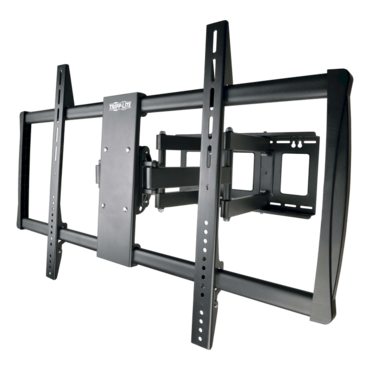

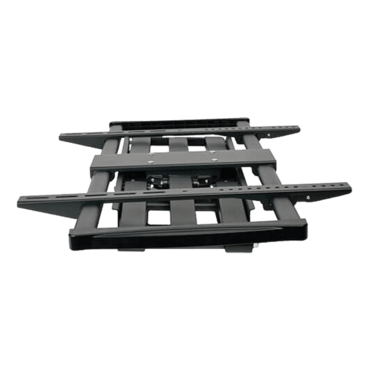

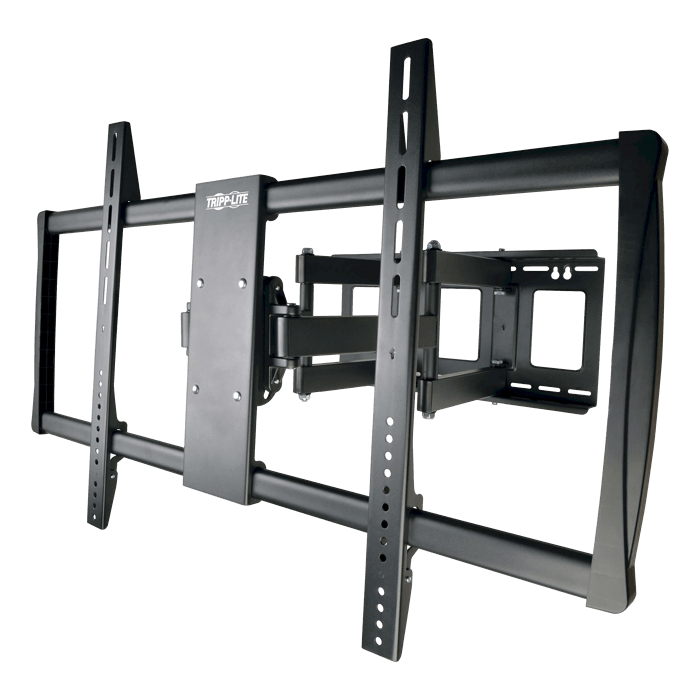

Tripp Lite's VESA-compliant DWM60100XX Full-Motion Flat-Screen Wall Mount offers full-motion articulation and can free up valuable space in your workstation by allowing you to effortlessly reposition your display at any time, even after installation. Its sleek design features convenient one-touch display adjustment with tilt and swivel capabilities and fits most 60- to 100-inch flat-panel displays. Its durable, all-metal frame with scratch-resistant, powder-coat finish withstands the stress of repeated use and blends easily into any décor. It comes with all necessary mounting hardware and supports weights of up to 300 lbs. A built-in level adjustment ensures perfect positioning. For peace of mind, the DWM60100XX comes backed by a 5-year warranty.

  • Fits most flat-panel televisions, monitors and other displays from 60 to 100 in.
  • Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
  • Articulated arm with 6 pivots adjusts independently for angle
  • Mounting hardware included
  • Tested in accordance with UL Standard 2442
Color Black
Degrees of Motion -15/+15 Tilt; 90 Swivel; -3/+3 Level Adjustment
Material of Construction Steel
Maximum Screen Size (in.) 100
Maximum Weight Capacity (lbs.) 275
Min/Max Arm Extension (in.) 2.76 min to 24.61 max
Minimum Screen Size (in.) 60
Motion Full
Mounting Location Wall
Number of Displays 1
Shipping Dimensions (hwd / in.) 3.14 x 23.35 x 46.00
Shipping Weight (lbs.) 38.10
Unit Dimensions (hwd / in.) 24.2 x 36.5 x 24.62
Unit Weight (lbs.) 31.50
VESA Pattern (mm) 200x200; 200x300; 200x400; 200x500; 300x200; 300x300; 300x400; 300x500; 300x600; 400x200; 400x300; 400x400; 400x500; 400x600; 500x200; 500x300; 500x400; 500x500; 500x600; 600x300; 600x400; 600x500; 600x600; 600x900; 700x300; 700x400; 700x500; 700x600; 800x400; 800x500; 800x600; 900x500; 900x600
