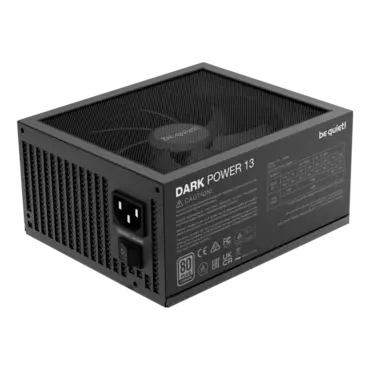

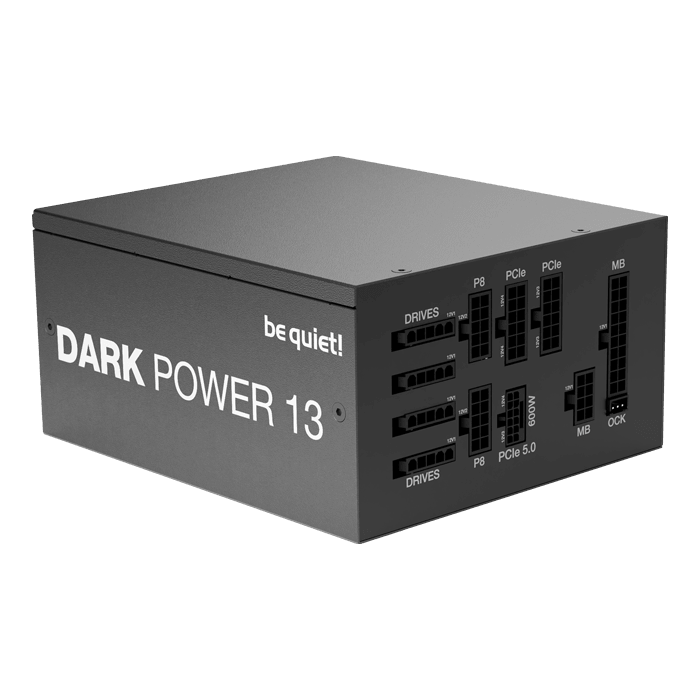

Dark Power 13, 80 PLUS Titanium 1000W, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 15886175
  • Manufacturer: be quiet!
  • MPN: BN661
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$289.90
Quantity:
Dark Power 13, 80 PLUS Titanium 1000W, Fully Modular, ATX Power Supply

Dark Power 13 1000W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 95.2%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.

  • 80 PLUS Titanium efficiency (up to 95.2%)
  • ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connector
  • Improved frameless Silent Wings fan for virtually inaudible operation
  • Full-mesh front with funnel shape air inlet upholds the high air circulation abilities
  • Overclocking key switches between four 12V rails and one massive 12V rail
  • Active Rectifier + full bridge LLC technology provides unmatched signal stability and extremely high efficiency
  • Modular cable management for maximum convenience
  • 10-year manufacturer’s warranty
General data
Model Dark Power 13 1000W
Continuous power (W) 1000
Peak power (W) 1100
Form factor Version 3.0
Form factor EPS 12V Version 2.92
Topology Active Rectifier + Full bridge + LLC + SR + DC/DC
Digitally controlled -
Voltage (Vac) 100 - 240
Frequency (Hz) 50 - 60
Input current (A) 13 / 6
Power factor at 100% load >0.98
Modern standby
Power consumption in standby (W) <0.13
Average life time (h / 25°C) >100,000
Operating temperature up to (°C) 40
Efficiency
80 PLUS certification Titanium
Efficiency (%) at 230V, 2% load 72.0
Efficiency (%) at 230V, 10% load 90.7
Efficiency (%) at 230V, 20% load 94.8
Efficiency (%) at 230V, 50% load 95.2
Efficiency (%) at 230V, 100% load 93.3
Fan and cooling technology
Fan Silent Wings
Fan size (mm) 135
Bearing technology FDB
Motor technology 6-pole fan motor
Max. fan speed (rpm) 1800
dB(A) at 10% load 8.1
dB(A) at 20% load 8.1
dB(A) at 50% load 8.6
dB(A) at 100% load 25.8
Output
Multi-rail operation (12V rails) 4
12V single rail operation
Overclocking key
+3.3V (A) 25
+5V (A) 25
+12V1 (A) 32
+12V2 (A) 32
+12V3 (A) 40
+12V4 (A) 40
+12V5 (A) -
+12V6 (A) -
-12V (A) 0.5
+5Vsb (A) 3
Max. combined power 12V (W) 996
Max. combined power 3.3V + 5V (W) 125
Hold-up time at 100% load (ms) 23.2
Power good signal (ms) 100 - 150
Cables and connectors
Modular cables
Sleeved cables all
Flat cables -
Maximum cable length (cm) 105
Cable length to motherboard (cm) 60
No. of cables 12
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) 1
P4 (CPU) -
12VHPWR cable / W 1 / 600
PCI-e 6+2-pin (GPU) 4
PCI-e 6-pin (GPU) -
SATA 13
PATA 3
FDD (Floppy) -
Protection
OTP (over temperature protection)
OCP (over current protection)
OPP (over power protection)
SCP (short circuit protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SIP (Surge & Inrush Protection)
Safety certification
BSMI
CB
CCC -
CE
cRUus -
cTUVus
CU
FCC
RCM
TÜV
UKCA
Environmental directives
Energy Star 8.0
ErP
WEEE
RoHs
Triman
Scope of delivery
Thumb screws
Screws
Cable ties
Velcro cable ties
User manual languages DE, EN, ES, FR, PL, RU, TW, CN, JP, KC
OCK slot bracket with switch / OCK jumper
SFX-to-ATX adapter bracket -
Casing
Dimensions without cable (L x W x H), (mm) 175 x 150 x 86
Weight (kg) 2.03
Color Black
Service
Warranty (Years) 10
Express replacement service in first year DE, FR
International hotline / free of charge √ / DE, FR
Logistics data and RRP
Article number BN661
EAN code 4260052189634
Dimensions, package (L x W x H), (mm) 350 x 120 x 270
Gross weight, package (kg) 4.48
