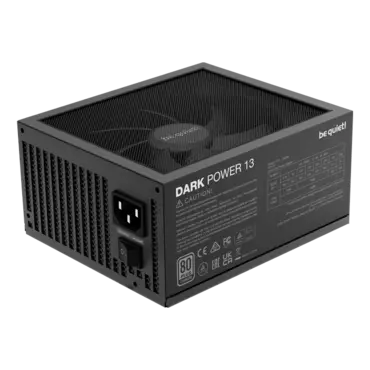

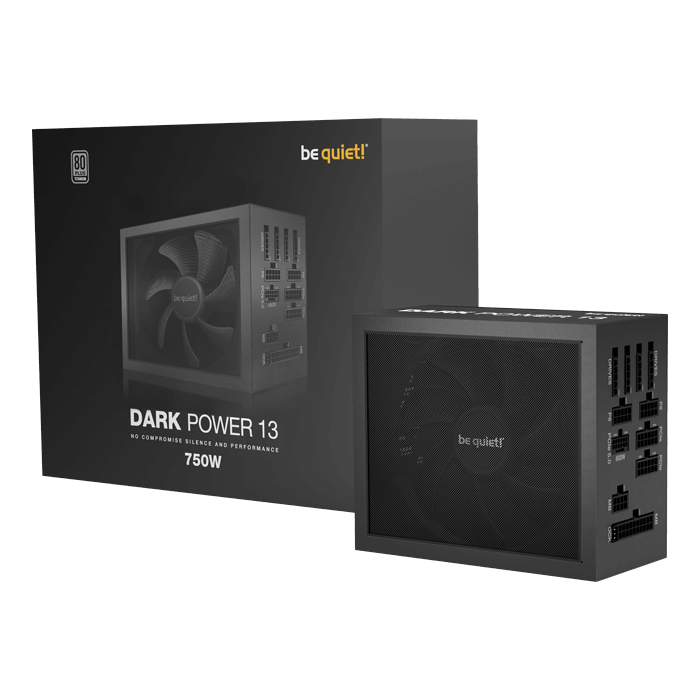

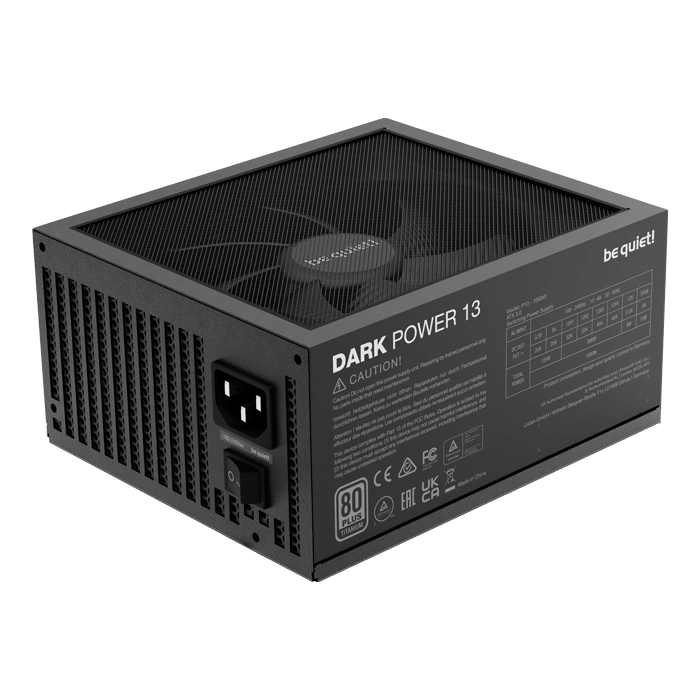

Dark Power 13, 80 PLUS Titanium 750W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 15883774
- Manufacturer: be quiet!
- MPN: BN659
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$209.90
Dark Power 13, 80 PLUS Titanium 750W, Fully Modular, ATX Power Supply
Dark Power 13 750W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 95.8%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.
- 80 PLUS Titanium efficiency (up to 95.8%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connector
- Improved frameless Silent Wings fan for virtually inaudible operation
- Full-mesh front with funnel shape air inlet upholds the high air circulation abilities
- Overclocking key switches between four 12V rails and one massive 12V rail

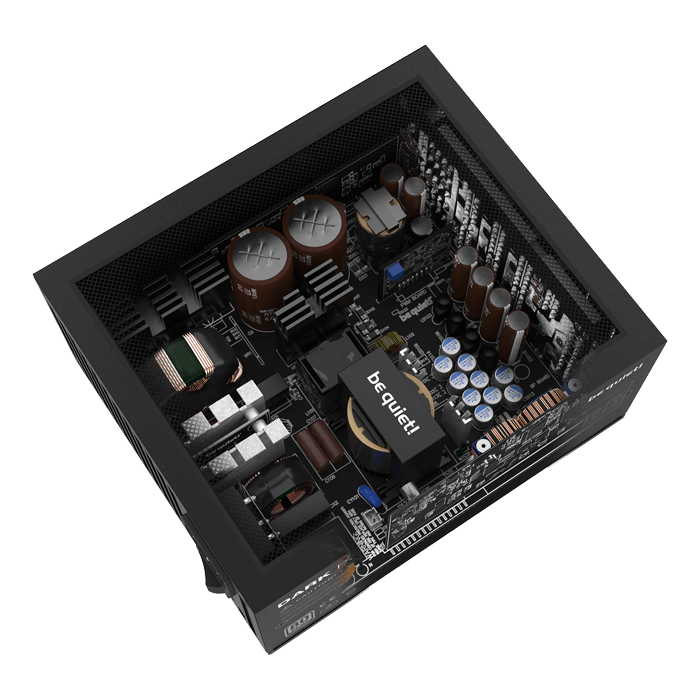

- Active Rectifier + full bridge LLC technology provides unmatched signal stability and extremely high efficiency

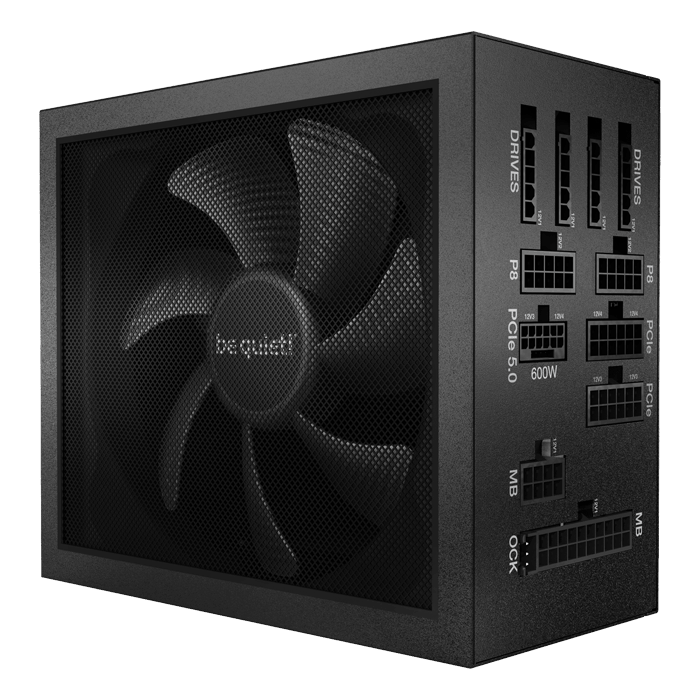

- Modular cable management for maximum convenience
- 10-year manufacturer’s warranty
| General data | |
| Model | Dark Power 13 750W |
| Continuous power (W) | 750 |
| Peak power (W) | 850 |
| Form factor | Version 3.0 |
| Form factor EPS 12V | Version 2.92 |
| Topology | Active Rectifier + Full bridge + LLC + SR + DC/DC |
| Digitally controlled | - |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 9 / 4.5 |
| Power factor at 100% load | >0.98 |
| Modern standby | √ |
| Power consumption in standby (W) | <0.13 |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 40 |
| Efficiency | |
| 80 PLUS certification | Titanium |
| Efficiency (%) at 230V, 2% load | 72.2 |
| Efficiency (%) at 230V, 10% load | 91.8 |
| Efficiency (%) at 230V, 20% load | 94.8 |
| Efficiency (%) at 230V, 50% load | 95.8 |
| Efficiency (%) at 230V, 100% load | 93.8 |
| Fan and cooling technology | |
| Fan | Silent Wings |
| Fan size (mm) | 135 |
| Bearing technology | FDB |
| Motor technology | 6-pole fan motor |
| Max. fan speed (rpm) | 2100 |
| dB(A) at 10% load | 7.9 |
| dB(A) at 20% load | 8.5 |
| dB(A) at 50% load | 9 |
| dB(A) at 100% load | 18.8 |
| Output | |
| Multi-rail operation (12V rails) | 4 |
| 12V single rail operation | √ |
| Overclocking key | √ |
| +3.3V (A) | 22 |
| +5V (A) | 22 |
| +12V1 (A) | 25 |
| +12V2 (A) | 25 |
| +12V3 (A) | 30 |
| +12V4 (A) | 30 |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0.5 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 744 |
| Max. combined power 3.3V + 5V (W) | 110 |
| Hold-up time at 100% load (ms) | 22.6 |
| Power good signal (ms) | 100 - 150 |
| Cables and connectors | |
| Modular cables | √ |
| Sleeved cables | all |
| Flat cables | - |
| Maximum cable length (cm) | 105 |
| Cable length to motherboard (cm) | 60 |
| No. of cables | 12 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12VHPWR cable / W | 1 / 600 |
| PCI-e 6+2-pin (GPU) | 4 |
| PCI-e 6-pin (GPU) | - |
| SATA | 12 |
| PATA | 3 |
| FDD (Floppy) | - |
| Protection | |
| OTP (over temperature protection) | √ |
| OCP (over current protection) | √ |
| OPP (over power protection) | √ |
| SCP (short circuit protection) | √ |
| OVP (over Voltage protection) | √ |
| UVP (under Voltage protection) | √ |
| SIP (Surge & Inrush Protection) | √ |
| Safety certification | |
| BSMI | √ |
| CB | √ |
| CCC | √ |
| CE | √ |
| cRUus | - |
| cTUVus | √ |
| CU | √ |
| FCC | √ |
| RCM | √ |
| TÜV | √ |
| UKCA | √ |
| Environmental directives | |
| Energy Star | 8.0 |
| ErP | √ |
| WEEE | √ |
| RoHs | √ |
| Triman | √ |
| Scope of delivery | |
| Thumb screws | √ |
| Screws | √ |
| Cable ties | √ |
| Velcro cable ties | √ |
| User manual languages | DE, EN, ES, FR, PL, RU, TW, CN, JP, KC |
| OCK slot bracket with switch / OCK jumper | √ |
| SFX-to-ATX adapter bracket | - |
| Casing | |
| Dimensions without cable (L x W x H), (mm) | 175 x 150 x 86 |
| Weight (kg) | 1.96 |
| Color | Black |
| Service | |
| Warranty (Years) | 10 |
| Express replacement service in first year | DE, FR |
| International hotline / free of charge | √ / DE, FR |
| Logistics data and RRP | |
| Article number | BN659 |
| EAN code | 4260052189610 |
| Dimensions, package (L x W x H), (mm) | 350 x 120 x 270 |
| Gross weight, package (kg) | 4.23 |
