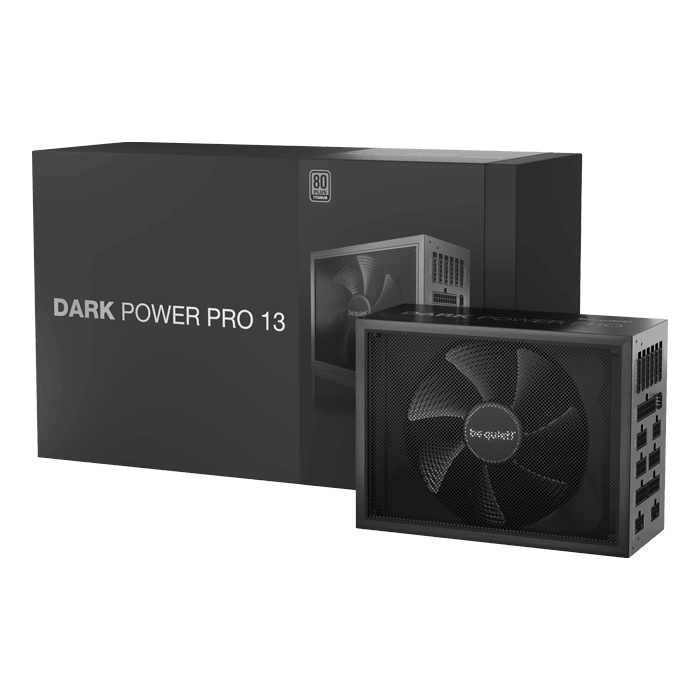

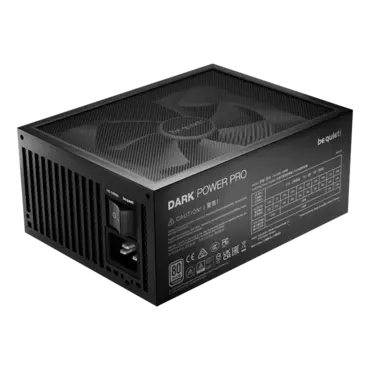

Dark Power Pro 13, 80 PLUS Titanium 1300W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 16144734
- Manufacturer: be quiet!
- MPN: BN500
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$419.90
Dark Power Pro 13, 80 PLUS Titanium 1300W, Fully Modular, ATX Power Supply
CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
he be quiet! Dark Power Pro 13 1300W offers 80 PLUS® Titanium efficiency, world-class performance and ATX 3.0 compliance for next-gen GPU compatibility.
Dark Power Pro 13 1300W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 94.4%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.

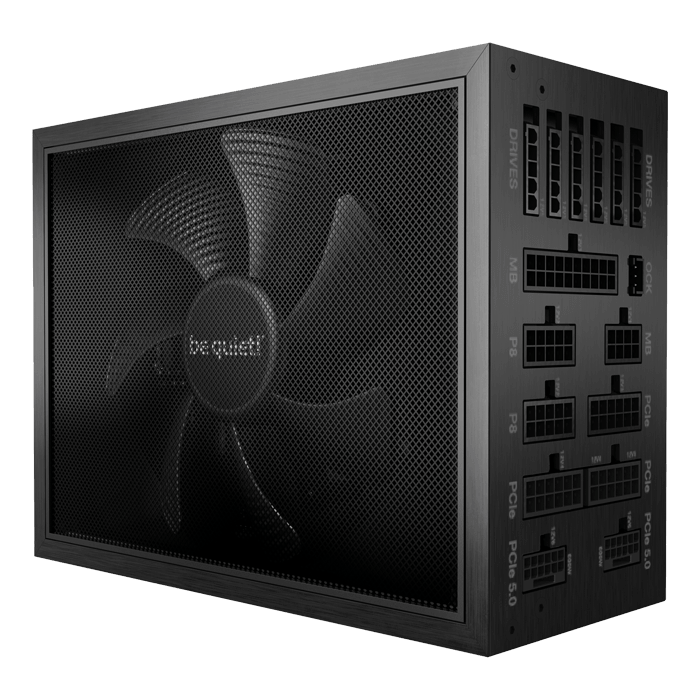

Dark Power Pro 13 1300W is an ATX 3.0 PSU and comes with both native integration of the two 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 6 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
- 80 PLUS Titanium efficiency (up to 94.4%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions

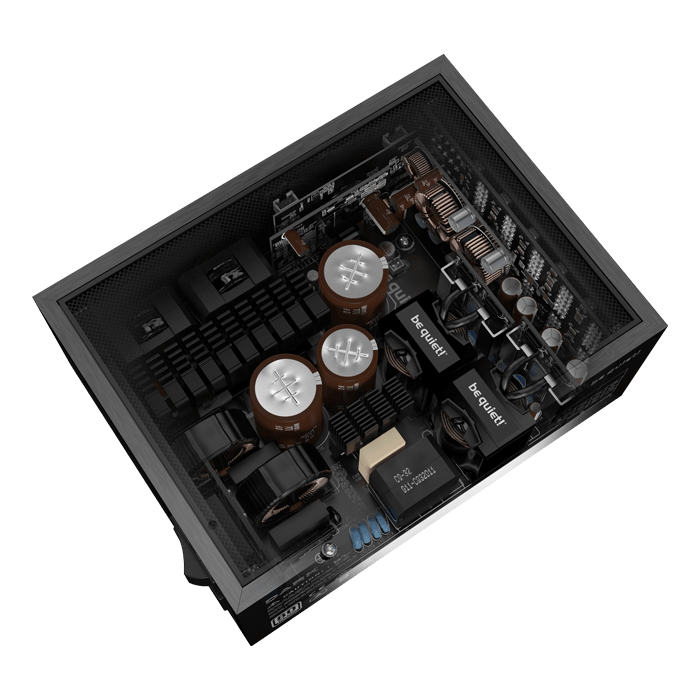

- Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability

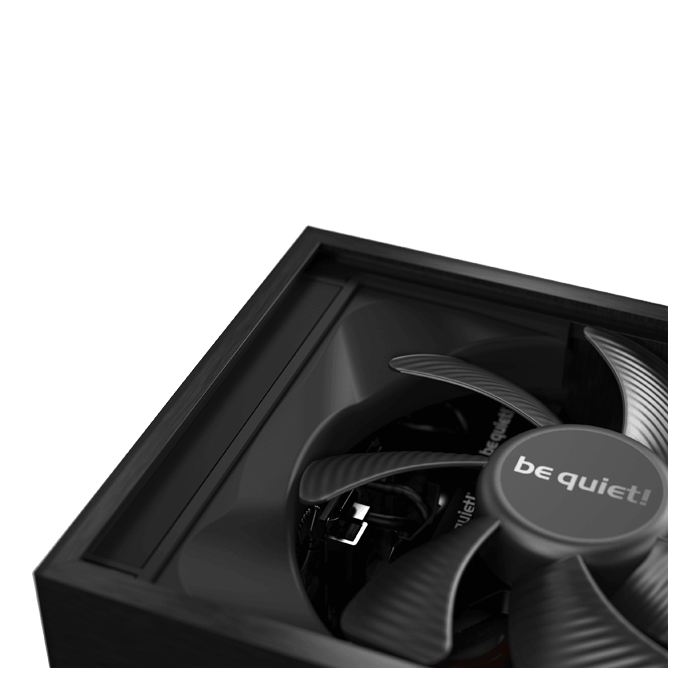

- Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
- Overclocking key switches between six 12V rails and one massive 12V rail

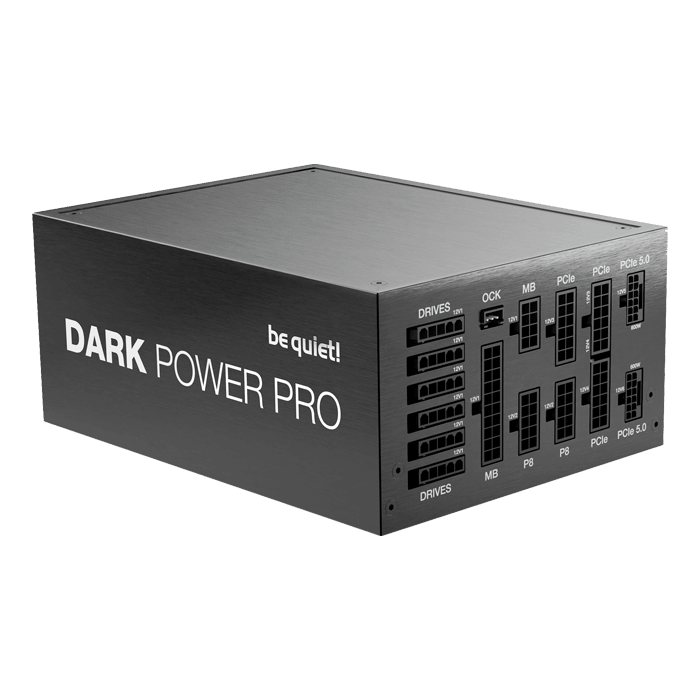

- Aluminum case and modular individually sleeved cables for magnificent appearance
- 10-year manufacturer’s warranty
| General data | |
| Model | Dark Power Pro 13 1300W |
| Continuous power (W) | 1300 |
| Peak power (W) | 1400 |
| Form factor | Version 3.0 |
| Form factor EPS 12V | Version 2.92 |
| Topology | Full bridge + LLC + SR + DC/DC |
| Digitally controlled | √ |
| Voltage ( Vac ) | 100 - 240 |
| Frequency ( Hz ) | 50 - 60 |
| Input current (A) | 16 / 8 |
| Power factor at 100% load | >0.99 |
| Modern standby | √ |
| Power consumption in standby (W) | <0.06 |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 50 |
| Efficiency | |
| 80 PLUS certification | Titanium |
| Efficiency (%) at 230V, 2% load | 73.1 |
| Efficiency (%) at 230V, 10% load | 91.6 |
| Efficiency (%) at 230V, 20% load | 93.6 |
| Efficiency (%) at 230V, 50% load | 94.4 |
| Efficiency (%) at 230V, 100% load | 92.8 |
| Fan and cooling technology | |
| Fan | Silent Wings |
| Fan size (mm) | 135 |
| Bearing technology | FDB |
| Motor technology | 6-pole fan motor |
| Max. fan speed (rpm) | 2400 |
| dB(A) at 10% load | 10.2 |
| dB(A) at 20% load | 10.2 |
| dB(A) at 50% load | 10.2 |
| dB(A) at 100% load | 23.2 |
| Output | |
| Multi-rail operation ( 12V rails ) | 6 |
| 12V single rail operation | √ |
| Overclocking key | √ |
| +3.3V (A) | 25 |
| +5V (A) | 25 |
| +12V1 (A) | 35 |
| +12V2 (A) | 35 |
| +12V3 (A) | 40 |
| +12V4 (A) | 40 |
| +12V5 (A) | 55 |
| +12V6 (A) | 55 |
| -12V (A) | 0.5 |
| +5Vsb (A) | 3.5 |
| Max. combined power 12V (W) | 1300 |
| Max. combined power 12VHPWR (W) | 800 |
| Max. combined power 3.3V + 5V (W) | 150 |
| Hold-up time at 100% load (ms) | 18 |
| Power good signal (ms) | 100-150 |
| Cables and connectors | |
| Modular cables | √ |
| Sleeved cables | √ |
| Flat cables | - |
| Maximum cable length (cm) | 105 |
| Cable length to motherboard (cm) | 60 |
| No. of cables | 16 |
| ATX -Motherboard ( 20+4-pin ) | 1 |
| P4 +4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12VHPWR cables | 2 |
| PCI-e 6+2-pin ( GPU ) | 6 |
| PCI-e 6-pin ( GPU ) | - |
| SATA | 16 |
| PATA | 5 |
| FDD (Floppy) | - |
| Protection | |
| OTP (over temperature protection) | √ |
| OCP (over current protection) | √ |
| OPP (over power protection) | √ |
| SCP (short circuit protection) | √ |
| OVP (over Voltage protection) | √ |
| UVP (under Voltage protection) | √ |
| SIP (Surge & Inrush Protection) | √ |
| Safety certification | |
| BSMI | √ |
| CB | √ |
| CCC | √ |
| CE | √ |
| cRUus | - |
| cTUVus | √ |
| CU | √ |
| FCC | √ |
| RCM | √ |
| TÜV | √ |
| UKCA | √ |
| Environmental directives | |
| Energy Star | 8.0 |
| ErP | √ |
| WEEE | √ |
| RoHS | √ |
| Triman | √ |
| Scope of delivery | |
| Thumb screws | √ |
| Screws | √ |
| Cable ties | √ |
| Velcro cable ties | √ |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW, KR |
| OCK slot bracket with switch / OCK jumper | √ |
| SFX -to- ATX adapter bracket | - |
| Casing | |
| Dimensions without cable (L x W x H), (mm) | 200 x 150 x 86 |
| Weight (kg) | 2.41 |
| Color | Black |
| Service | |
| Warranty (Years) | 10 |
| Express replacement service in first year | DE, FR |
| International hotline / free of charge | √ / DE, FR |
| Logistics data and RRP | |
| Article number | BN500 |
| EAN code | 4260052190036 |
| Dimensions, package (L x W x H), (mm) | 417 x 253 x 152 |
| Gross weight, package (kg) | 6.8 |
