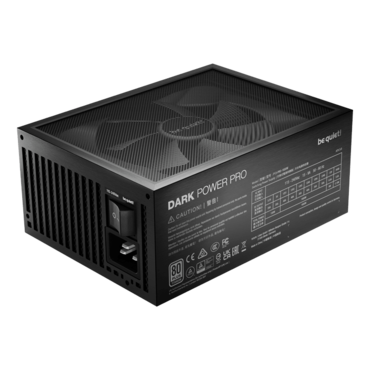

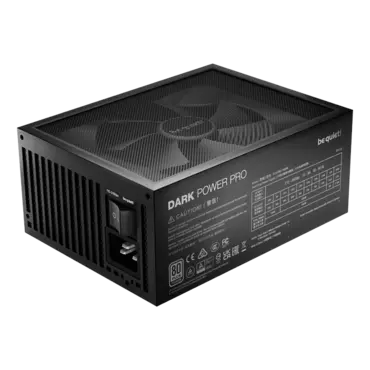

Dark Power Pro 13, 80 PLUS Titanium 1600W, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 16142955
  • Manufacturer: be quiet!
  • MPN: BN501
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$459.90
Quantity:
Dark Power Pro 13, 80 PLUS Titanium 1600W, Fully Modular, ATX Power Supply

CUTTING EDGE TECHNOLOGIES AND PERFORMANCE

The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency, world-class performance and ATX 3.0 compliance for next-gen GPU compatibility.
Dark Power Pro 13 1600W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 94.5%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.
Dark Power Pro 13 1600W is an ATX 3.0 PSU and comes with both native integration of the two 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 6 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.

  • 80 PLUS Titanium efficiency (up to 94.5%)
  • ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
  • Handles massive power excursions

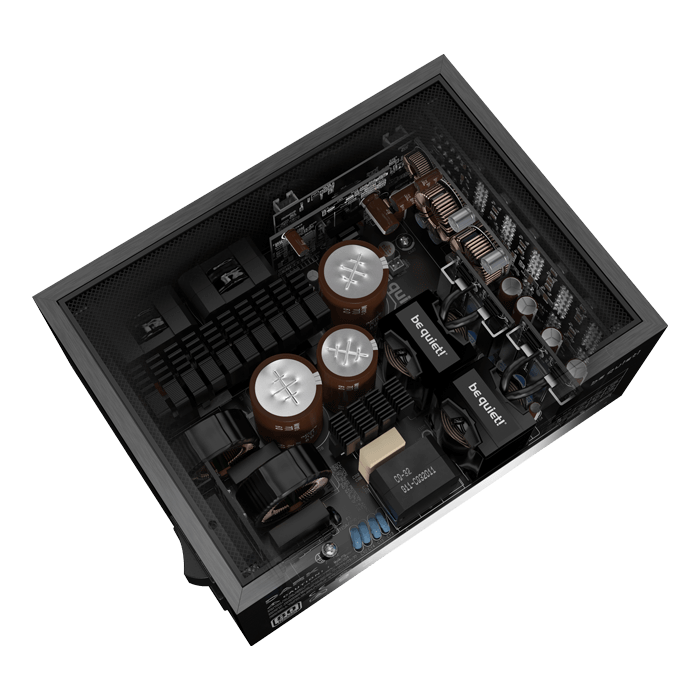

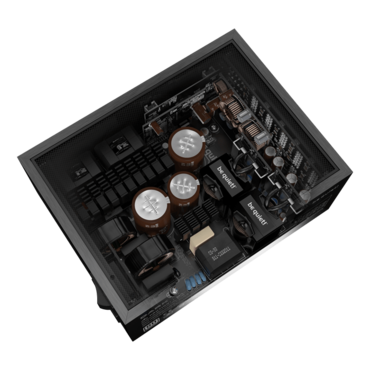

  • Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability

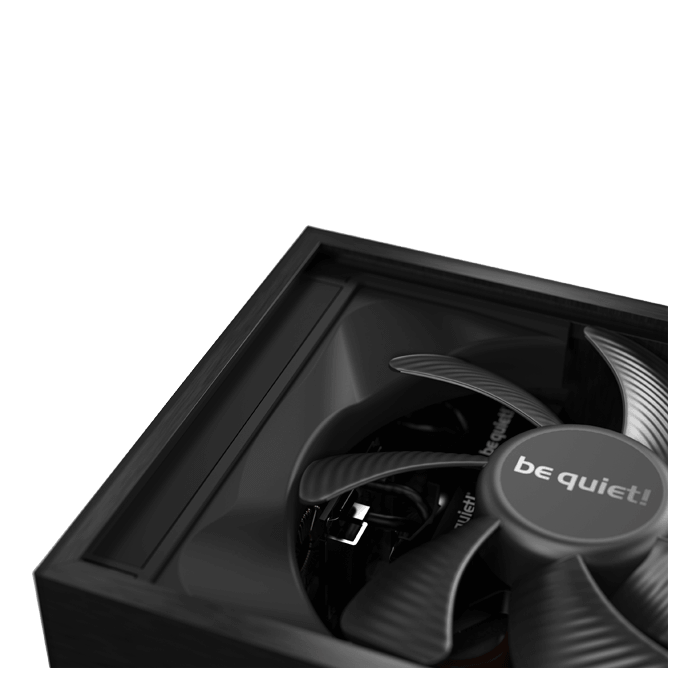

  • Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
  • Overclocking key switches between six 12V rails and one massive 12V rail
  • Aluminum case and modular individually sleeved cables for magnificent appearance
  • 10-year manufacturer’s warranty
General data
Model Dark Power Pro 13 1600W
Continuous power (W) 1600
Peak power (W) 1700
Form factor Version 3.0
Form factor EPS 12V Version 2.92
Topology Full bridge + LLC + SR + DC/DC
Digitally controlled
Voltage (Vac) 100 - 240
Frequency (Hz) 50 - 60
Input current (A) 17 / 9
Power factor at 100% load >0.99
Modern standby
Power consumption in standby (W) <0.06
Average life time (h / 25°C) >100,000
Operating temperature up to (°C) 50
Efficiency
80 PLUS certification Titanium
Efficiency (%) at 230V, 2% load 73.7
Efficiency (%) at 230V, 10% load 92.6
Efficiency (%) at 230V, 20% load 94.2
Efficiency (%) at 230V, 50% load 94.5
Efficiency (%) at 230V, 100% load 92.2
Fan and cooling technology
Fan Silent Wings
Fan size (mm) 135
Bearing technology FDB
Motor technology 6-pole fan motor
Max. fan speed (rpm) 2600
dB(A) at 10% load 9.5
dB(A) at 20% load 9.6
dB(A) at 50% load 9.8
dB(A) at 100% load 31.1
Output
Multi-rail operation (12V rails) 6
12V single rail operation
Overclocking key
+3.3V (A) 25
+5V (A) 25
+12V1 (A) 40
+12V2 (A) 40
+12V3 (A) 45
+12V4 (A) 45
+12V5 (A) 55
+12V6 (A) 55
-12V (A) 0.5
+5Vsb (A) 3.5
Max. combined power 12V (W) 1600
Max. combined power 12VHPWR (W) 1000
Max. combined power 3.3V + 5V (W) 150
Hold-up time at 100% load (ms) 18
Power good signal (ms) 100 - 150

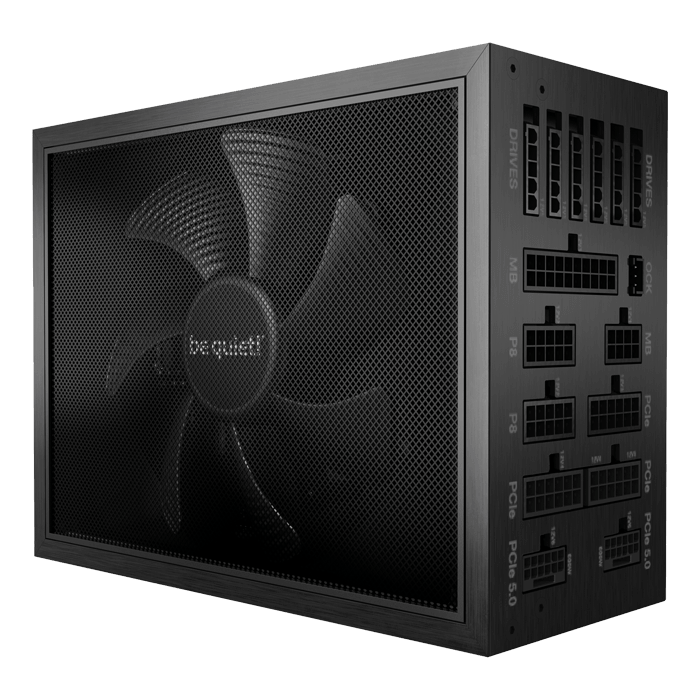

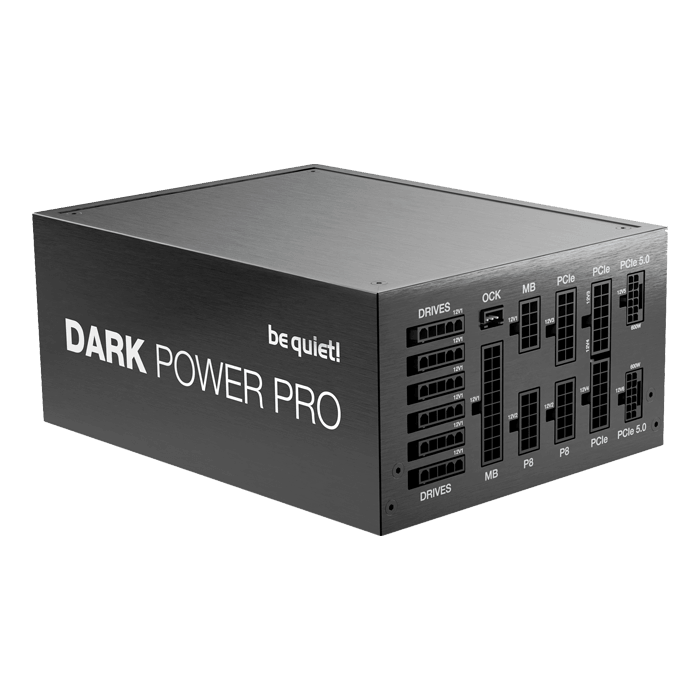

Cables and connectors
Modular cables
Sleeved cables
Flat cables -
Maximum cable length (cm) 105
Cable length to motherboard (cm) 60
No. of cables 16
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) 1
P4 (CPU) -
12VHPWR cables 2
PCI-e 6+2-pin (GPU) 6
PCI-e 6-pin (GPU) -
SATA 16
PATA 5
FDD (Floppy) -
Protection
OTP (over temperature protection)
OCP (over current protection)
OPP (over power protection)
SCP (short circuit protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SIP (Surge & Inrush Protection)
Safety certification
BSMI
CB
CCC
CE
cRUus -
cTUVus
CU
FCC
RCM
TÜV
UKCA
Environmental directives
Energy Star 8.0
ErP
WEEE
RoHS
Triman

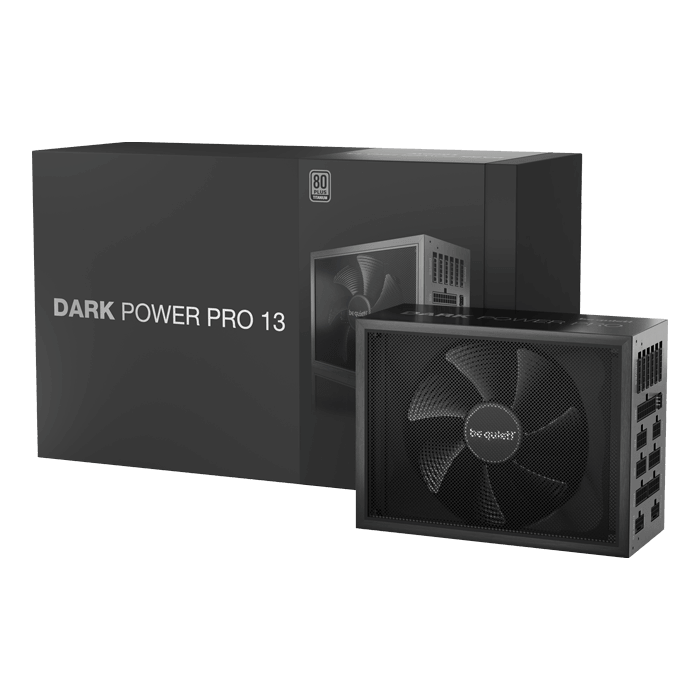

Scope of delivery
Thumb screws
Screws
Cable ties
Velcro cable ties
User manual languages CN, DE, EN, ES, FR, JP, PL, RU, TW, KR
OCK slot bracket with switch / OCK jumper
SFX-to-ATX adapter bracket -
Casing
Dimensions without cable (L x W x H), (mm) 200 x 150 x 86
Weight (kg) 2.44
Color Black
Service
Warranty (Years) 10
Express replacement service in first year DE, FR
International hotline / free of charge ✓ / DE, FR
Logistics data and RRP
Article number BN501
EAN code 4260052190043
Dimensions, package (L x W x H), (mm) 417 x 253 x 152
Gross weight, package (kg) 6.9
