Dark Rock 4, 160mm Height, 200W TDP, Copper/Aluminum CPU Cooler
Quantity:
- SKU: 11954949
- Manufacturer: be quiet!
- MPN: BK021
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$83.35

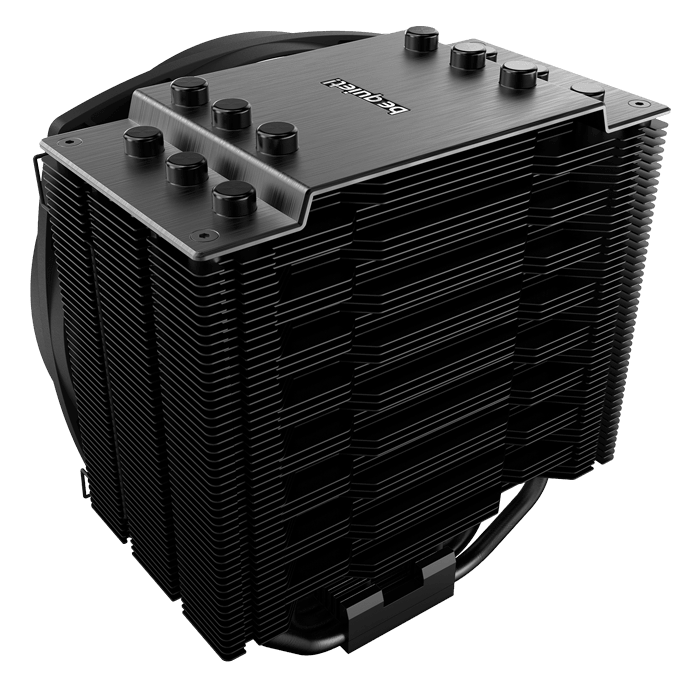

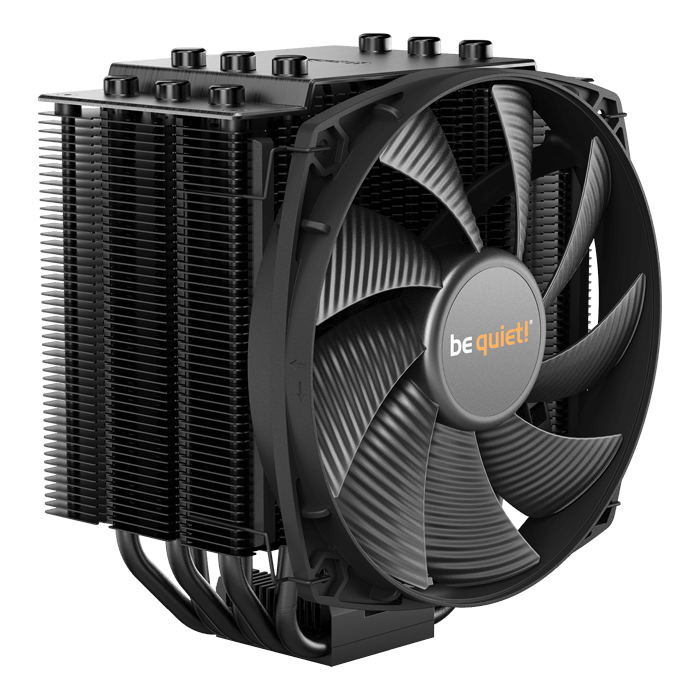

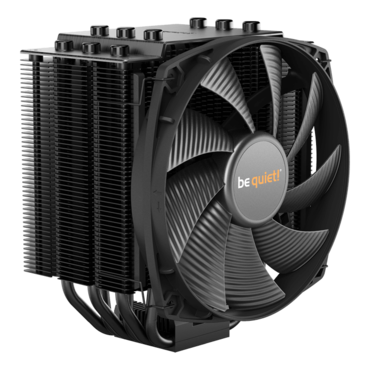

Dark Rock 4, 160mm Height, 200W TDP, Copper/Aluminum CPU Cooler
Dark Rock 4 offers an extreme cooling performance of 200W TDP and virtually inaudible operation. Perfect for overclocked systems and demanding workstations.
- Virtually inaudible Silent Wings 135mm PWM fan
- Achieves only 21.4dB(A) at maximum fan speed

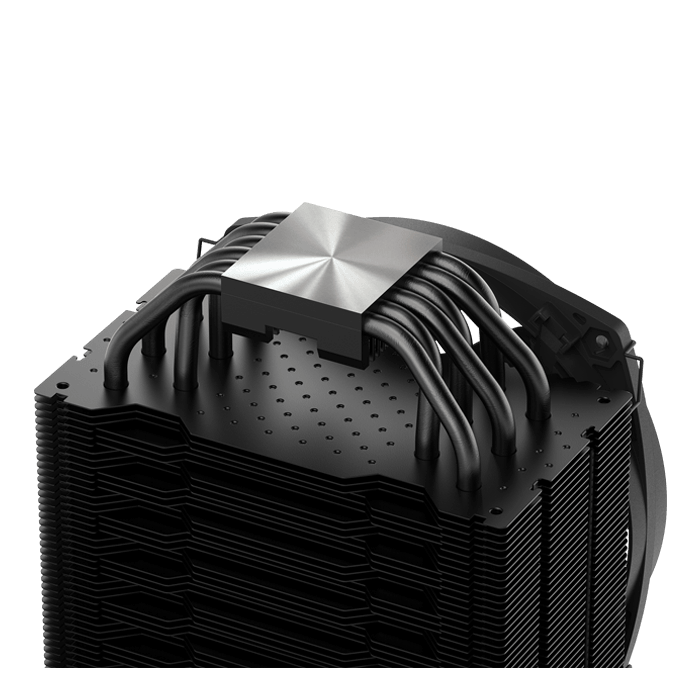

- Six high-performance copper heat pipes
- Airflow-optimized, wave-contoured cooling fins
- Easily installable black installation kit can be mounted from above
- Supports an additional 120mm fan; clips are included in scope of delivery
- Brushed aluminum top cover with diamond cut finish
- 3-year manufacturer’s warranty
- German product conception, design and quality control
| General data | |
|---|---|
| Model | Dark Rock 4 |
| Overall dimensions without mounting material (L x W x H), (mm) | 159.4 x 136 x 96.3 |
| Total weight (kg) | 0.92 |
| TDP (W) | 200 |
| Socket compatibility | Intel: LGA 1150 / 1151 / 1155 / 1156 / 1200 / 1366 / 2011(-3) Square ILM / 2066
AMD: AM2(+) / AM3(+) / AM4 / FM1 / FM2(+) |
| Fan model, number | 1x Silent Wings 135mm PWM |
| Decoupled fan mounting | ✓ |
| Overall noise level (dB(A)) @ 50/75/100% (rpm) | 10.5 / 15.6 / 21.4 |
| Infographics | |
| Heatsink specifications | |
| Dimensions (L x W x H), (mm) | 159.4 x 136 x 74.3 |
| Number of fins | 51 |
| Fin material | Aluminum |
| Base material | Copper |
| CPU contact surface | CNC machined |
| Heatpipe number / Diameter (mm) | 6, 6 |
| Surface treatment | Aluminum / black ceramic spray painted |
| Fan specifications | |
| Fan dimensions (mm) | 135 x 135 x 22 |
| +SilentWings | ✓ |
| Speed @ 100% PWM (rpm) | 1,400 |
| Bearing technology | Fluid Dynamic Bearing |
| Motor technology | 6-pole fan motor |
| Rated voltage (V) | 12 |
| Input current (A) | 0.11 |
| Input power (W) | 1.32 |
| Connector | 4-pin PWM |
| Cable length (mm) | 220 |
| Lifespan (h / 25°C) | 300,000 |
| Accessories | |
| Thermal grease (g) | Corning TC-5121C / 0.5 |
| Mounting set Intel & AMD | ✓ |
| Y-Cable | - |
| User manual languages | DE, EN, FR, ES, PL, RU |
| Service | |
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR |
