Define 7 Mini, No PSU, microATX, Black, Mini Tower Case
Quantity:
- SKU: 15108302
- Manufacturer: Fractal Design
- MPN: FD-C-DEF7M-01
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$157.91

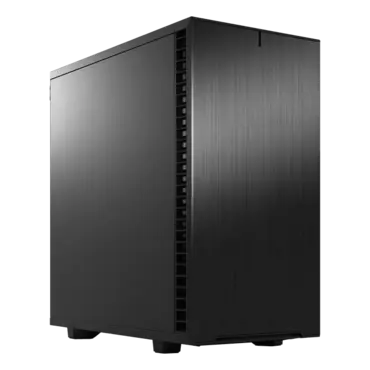

Define 7 Mini, No PSU, microATX, Black, Mini Tower Case
Re-defining balance.
he Define 7 Mini offers the same stylish appeal and many of the life-improving features of its larger siblings, in a streamlined form factor. Its compact yet spacious interior can accommodate mATX and Mini ITX motherboards, and the option to use a GPU up to 331 mm with a 240 mm radiator in the top.
- Compact yet spacious interior accommodates mATX and Mini ITX motherboards
- Room for GPUs up to 331 mm with a 240 mm radiator in the top, or 306 mm with 25 mm thick fans in the fronts
- Support for 2x 2.5”/3.5” drives and up to 4x 2.5” drives (2x 2.5” brackets included)
- Top panel effortlessly swaps from closed steel panel to filtered ventilation
- Removable top fan bracket design opens up to fully expose the case interior for effortless installation and cable routing
- Silence-optimized construction with industrial sound-damped front, top, and side panels
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 1x 140 mm Dynamic X2 fans included)
- Five front USB ports including one USB-C with fast-charging support and speeds up to 10Gbps
- Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
- Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
- Integrated cable guides with cable straps further simplify cable management behind the board
| Specifications | |
| 3.5"/2.5" drive mounts | 2 (included) |
| Dedicated 2.5" drive mounts | 4 (2 included – note the 8 mm height limit on two of the positions) |
| Expansion slots | 4 |
| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio |
| Total fan mounts | 7x 120 mm or 4x 140 mm |
| Front fan | 3x 120/ 2x 140 mm (1x Dynamic X2 GP-14 included) |
| Top fan | 2x 120/140 mm |
| Rear fan | 1x 120 mm (1x Dynamic X2 GP-12 included) |
| Bottom fan | 1x 120 mm (requires HDD Cage to be removed) |
| Dust filters | Top, Front, Bottom and PSU |
| Cable routing space | 15-25 mm |
| Cable routing grommets | Yes |
| Fixed cable ties | Yes |
| Tool-less push-to-lock | Top, front and side panels |
| Captive thumbscrews | HDD, SSD and PSU brackets |
| Left side panel | Industrial sound-damped steel or tempered glass |
| Right side panel | Industrial sound-damped steel |
| Compatibility | |
| Motherboard compatibility | mATX / Mini-DTX / Mini ITX |
| Power supply type | ATX |
| Front radiator | 120/240, 140/280 (361 mm max height, 146 mm max width) |
| Top radiator | 120/240 mm (max 37 mm RAM with 121 mm wide radiator) |
| Rear radiator | 120 mm |
| Bottom radiator | 120 mm (requires HDD Cage to be removed) |
| PSU max length | 165 mm recommended with HDD Cage (200 mm without Hard Drive Cage) |
| GPU max length | 331 mm, 306 mm with front fan |
| CPU cooler max height | 167 mm |
| Dimensions | |
| Case dimensions (LxWxH) | 399 x 205 x 406 mm |
| Net weight | Solid: 7.49 kg TG: 6.84 kg |
| Package dimensions (LxWxH) | 462 x 277 x 471 mm |
| Gross weight | Solid: 9.05 kg TG: 8.4 kg |
| Other | |
| Package contents | Define 7 Mini, User manual, Accessory box, Ventilated top panel |
| SKU | Black Solid: FD-C-DEF7M-01, Black TG Light Tint: FD-C-DEF7M-02 |
| EAN | Black Solid: 7340172702818, Black TG Light Tint: 7340172702825 |
| UPC | Black Solid: 843276102814, Black TG Light Tint: 843276102821 |
| JAN | Black Solid: 4537694282291, Black TG Light Tint: 4537694282307 |
| Warranty | 2 Years |
