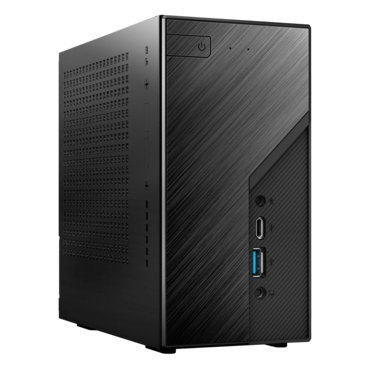

DeskMini B760W - TAA Compliant, Intel® B760 Chipset, 2x DDR4 SO-DIMM Memory, 2x M.2 SSD, 2x 2.5" HDD/SSD, 120W Power Adapter, Mini PC Barebone

Quantity:
  • SKU: 18034640
  • Manufacturer: ASROCK
  • MPN: DESKMINI B760W
  • Availability: CONTACT US
Starting At
$225.98
Quantity:
  • Supports 14th, 13th & 12th Gen Intel Core™ Processors (LGA1700), up to 65W
  • Dual DDR4-3200MHz SO-DIMMs, up to 64GB
  • Multi Video Outputs:1 x DisplayPort, HDMI & D-Sub
  • 1 x USB 3.2 Gen2x2 Type-C port (20 Gb/s)
  • 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (with USB Type-C Alt Mode)
  • 1 x USB 3.2 Gen2 Type-A port (10 Gb/s)
  • 1 x Blazing M.2 (PCIe Gen5 x4) Slot
  • 1 x Hyper M.2 (PCIe Gen4 x4) Slot
  • 2 x 2.5" HDD/SSD with RAID 0/1
  • 1 x M.2 Key-E for Wi-Fi
CPU - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700), Max. TDP 65W
Cooler - Supports Intel® CPU Cooler (Max. Height ? 47mm)
Memory - Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)
Chipset - Intel® B760
Graphics - Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)

*Supports up to 4 displays simultaneously
Audio - Realtek ALC269 Audio Codec
Storage - 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)*
- 1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode**
- 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode**

*Supports Intel® Volume Management Device (VMD)

**Supports NVMe SSD as boot disks
LAN - 2.5 Gigabit LAN (Dragon RTL8125BG)
WLAN - 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel® CNVi (Integrated Wi-Fi/BT)

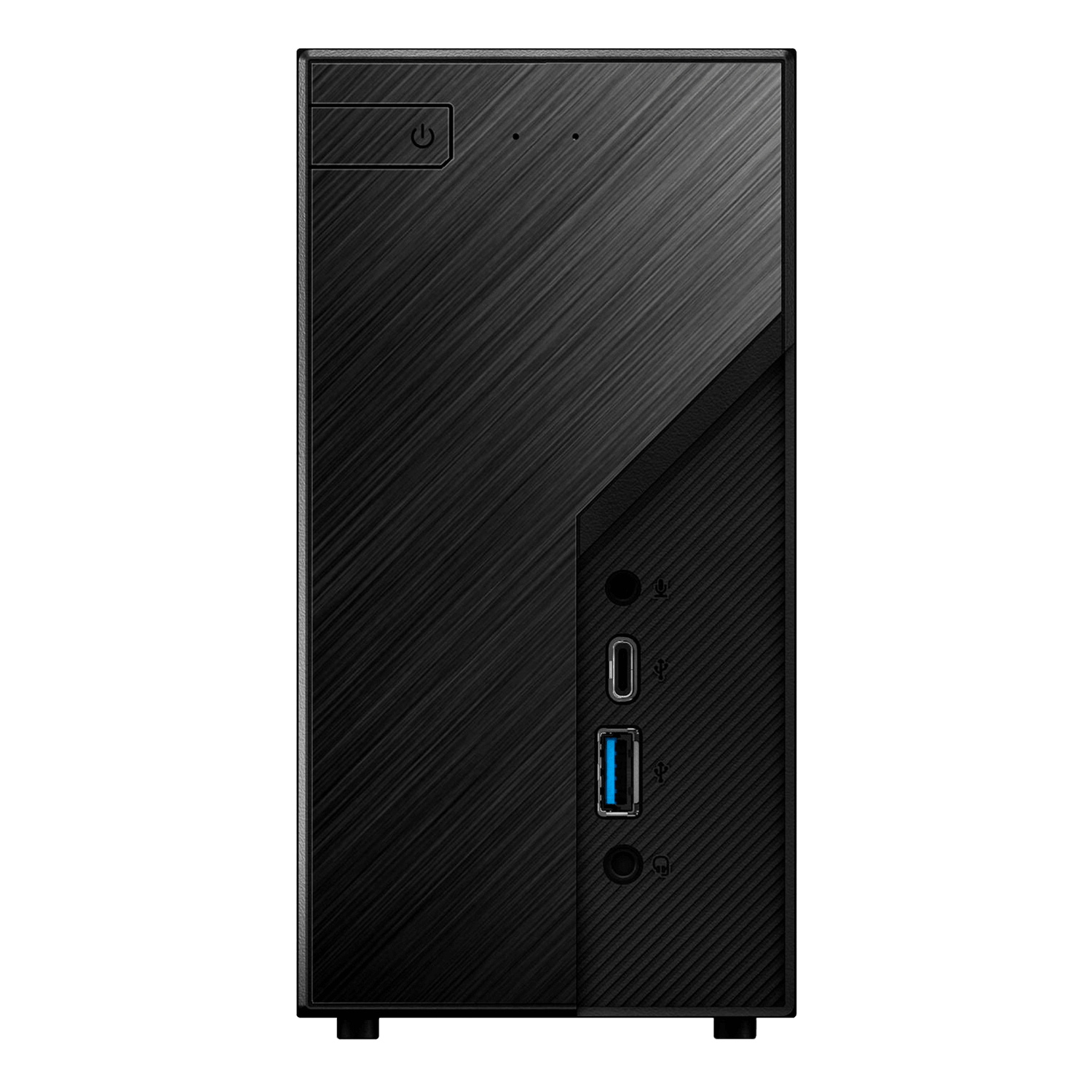

Front I/O - 1 x MIC-In
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x Head Phone with MIC Jack

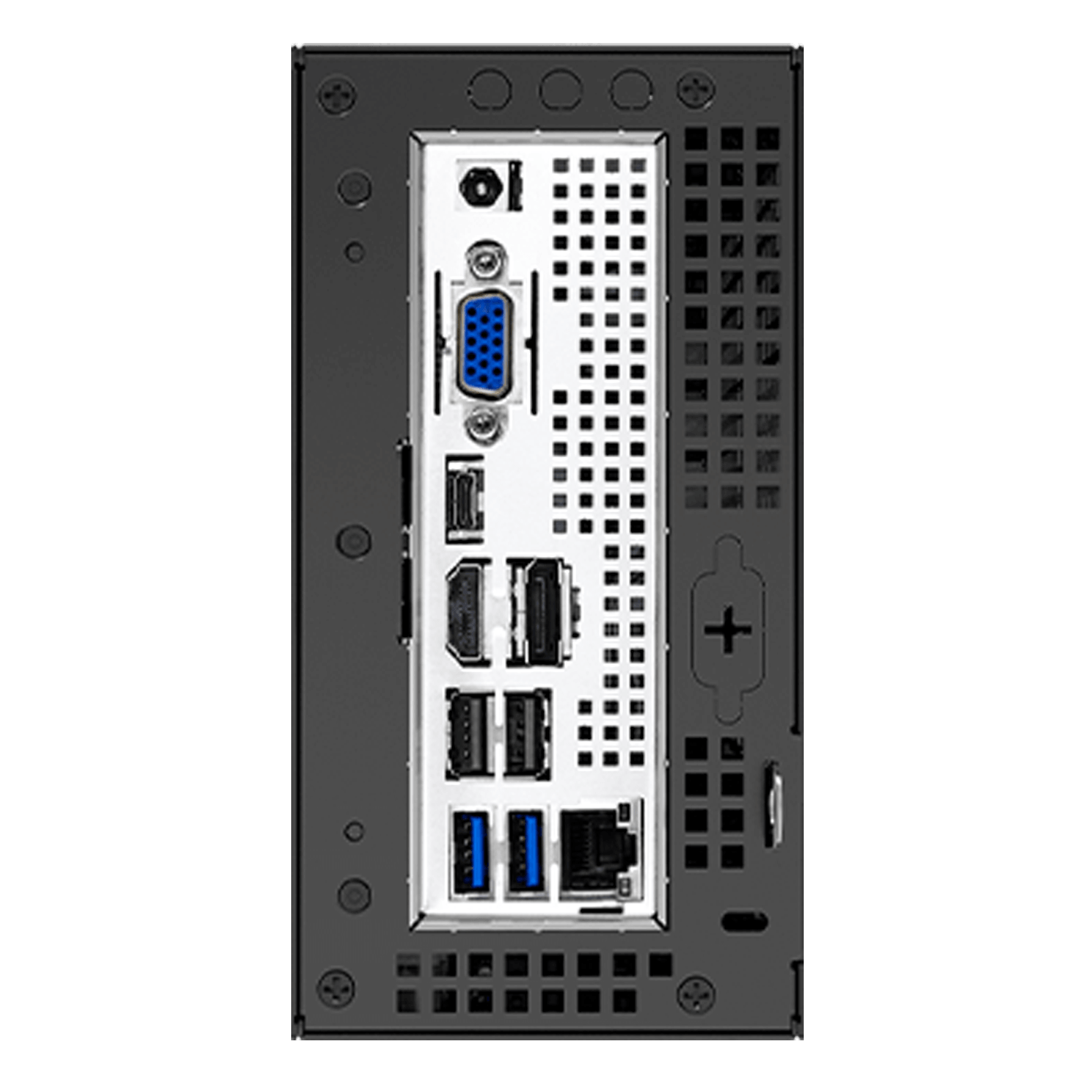

Rear I/O - 1 x DC-In Jack (Compatible with the 19V power adapter)
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode)
- 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED
Connectors - 1 x USB 2.0 Header
- 1 x Front Panel Header
- 2 x 4-Pin fan connectors (CPU, SYS)
- 1 x Internal Speaker Header (4-Pin)
- 1 x Audio Header (4-Pin)
Accessory - 2 x SATA Data with Power Cable
- 1 x 120W/19V adapter
- 1 x Screws Pack
- 1 x Intel® AC-3168 Wi-Fi Kit
Dimension - 155 x 155 x 80 mm (1.92L)
OS - Microsoft® Windows® 10 64-bit / 11 64-bit
