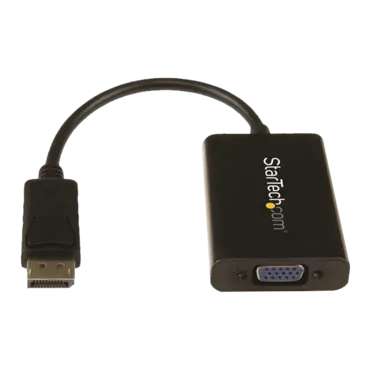

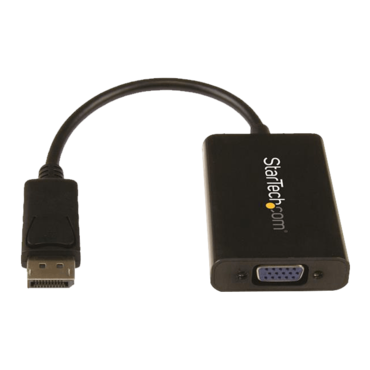

DisplayPort to VGA Adapter with Audio
This unique DisplayPort™ to VGA adapter is equipped with a built-in audio port which lets you connect DisplayPort equipped devices, such as an HP® EliteBook Folio 9470m laptop, to a VGA display or projector with audio.
- Group your VGA and audio ports together, to ensure they’re all accessible when you need them
- Substitute a damaged or blocked audio port by connecting your audio directly through the adapter
- Provide crystal-clear picture quality with support for high-definition video resolutions up to 1920x1200 or 1080p
- Maximum portability with a small footprint and lightweight design
Warranty Information | |
---|---|
Warranty | 2 Years |
Hardware | |
Active or Passive Adapter | Active |
Adapter Style | Adapters |
Audio | Yes |
Converter Type | Format Converter |
Performance | |
Audio Specifications | 2-channel stereo (3.5mm) |
Maximum Analog Resolutions | 1920x1200 / 1080p (output) |
Maximum Digital Resolutions | 1920x1200 / 1080p (input) |
Wide Screen Supported | Yes |
Connector(s) | |
Connector A | 1 - DisplayPort (20 pin) Male Input |
Connector B | 1 - VGA (15 pin, High Density D-Sub) Female Output |
1 - 3.5 mm Mini-Jack (3 Position) Female Output | |

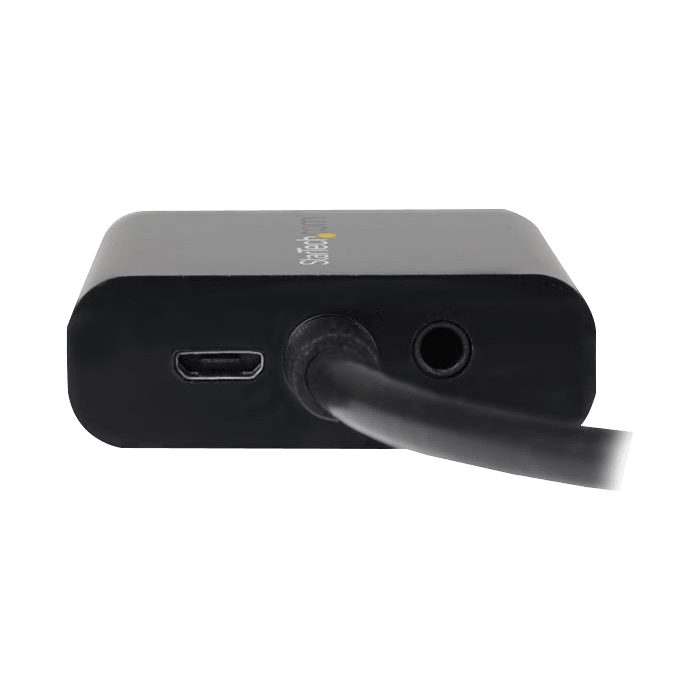

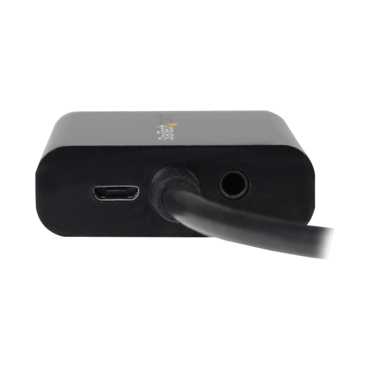

Connector Type(s) | 1 - USB Micro-B (5 pin) Female Input |
Power | |
Power Source | USB-Powered |
Environmental | |
Humidity | 40%~50%RH |
Operating Temperature | 0°C to 70°C (32°F to 158°F) |
Storage Temperature | -10°C to 55°C (14°F to 131°F) |
Physical Characteristics | |
Color | Black |
Product Height | 0.7 in [17 mm] |
Product Length | 2.6 in [67 mm] |
Product Weight | 1.7 oz [48 g] |
Product Width | 1.7 in [42 mm] |
Packaging Information | |
Shipping (Package) Weight | 2.3 oz [64 g] |
What's in the Box | |

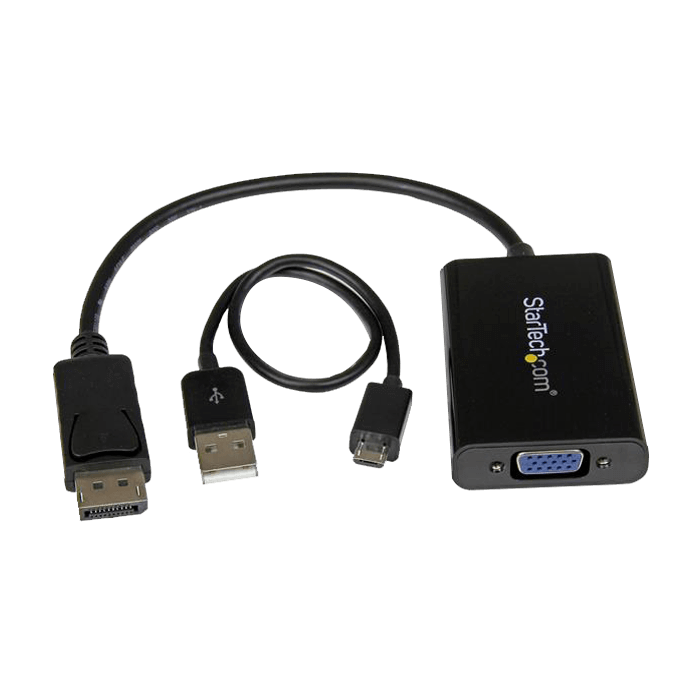

Included in Package | 1 - DisplayPort to VGA adapter |
1 - 0.25m Micro USB cable |
* Product appearance and specifications are subject to change without notice.
