Divider 500 TG Air Snow ATX Mid Tower Chassis

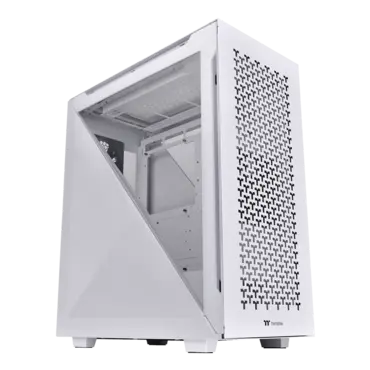

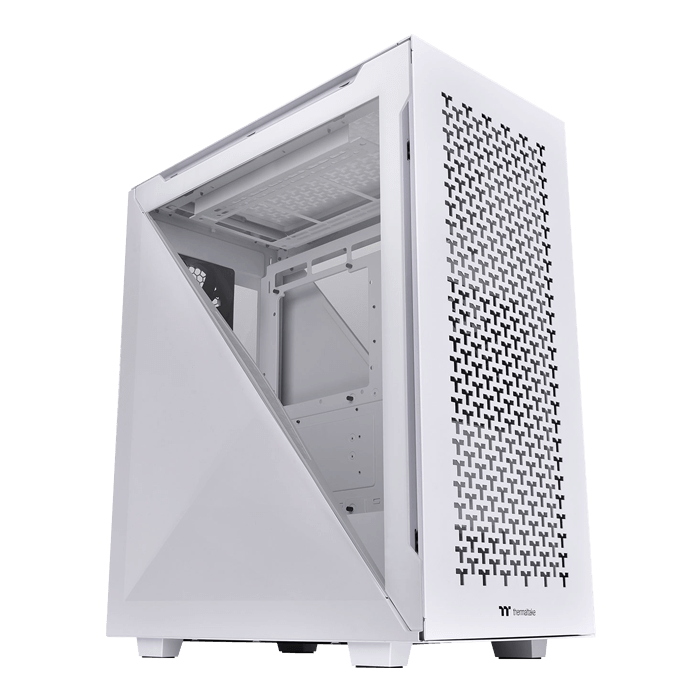

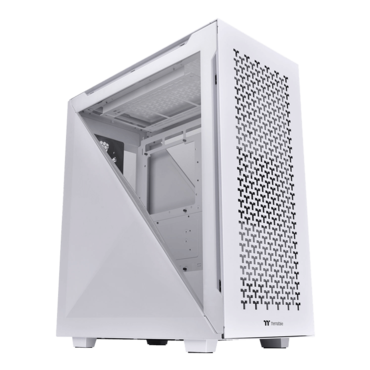

Thermaltake designed a brand-new case series that contains a mixture of open frame styled elements and customizable options blending all the functionalities into the Divider Series. The most exceptional feature of the Divider 500 TG Air Snow Mid Tower Case is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left and right sides. These panels are tool-free and easy to remove, offering a clear view of the components inside. Extra two symmetrical triangular options of tempered glass and steel panel enriches the appearance of the case when building the system. Additionally, the air edition comes with two airflow-optimized mesh panels at the front and top for massive airflow. The Divider 500 TG Air Snow Mid Tower Case is the next-gen gaming PC case for regular users, enthusiasts, and gamers, giving them unprecedented satisfaction.
P/N | CA-1T4-00M6WN-02 |
---|---|
SERIES | Divider |
MODEL | Divider 500 TG Air Snow |
CASE TYPE | Mid Tower |
DIMENSION (H X W X D) |
530 x 230 x 466 mm (20.9 x 9.1 x 18.3 inch) |
NET WEIGHT | 10.29 kg / 22.69 lbs. |
SIDE PANEL | 3mm Tempered Glass x 2 |
COLOR | White |
MATERIAL | SPCC |
COOLING SYSTEM |
Front(intake): 120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1 |
DRIVE BAYS -ACCESSIBLE -HIDDEN |
2 x 3.5”, 5 x 2.5” or 7 x 2.5” |
EXPANSION SLOTS | 7 (Rotatable Patented Design) |
MOTHERBOARDS | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
FAN SUPPORT |
Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Rear: 1 x 120mm |
RADIATOR SUPPORT |
Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 280mm, 1 x 140mm 1 x 240mm, 1 x 120mm Right (M/B Side): 1 x 240mm (vertical-installed GPU recommended), 1 x 120mm Rear: 1 x 120mm |
CLEARANCE |
CPU cooler max height: 155mm (with one TG and one steel side panel) 170mm (with two TG) VGA max length: 360mm (with radiator) 390mm (without radiator) PSU max length: 180mm (with HDD Cage) 220mm (without HDD Cage) |
