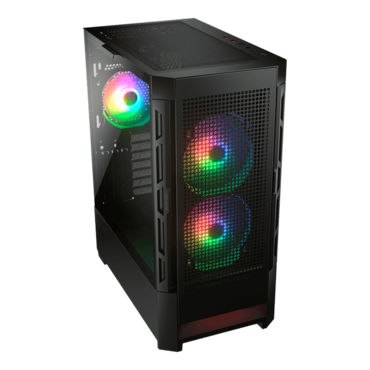

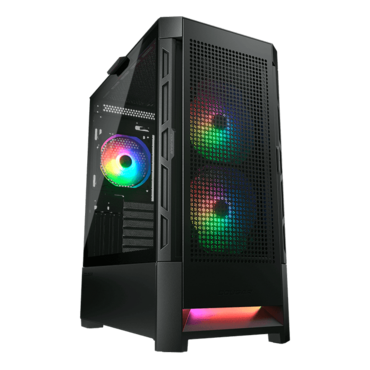

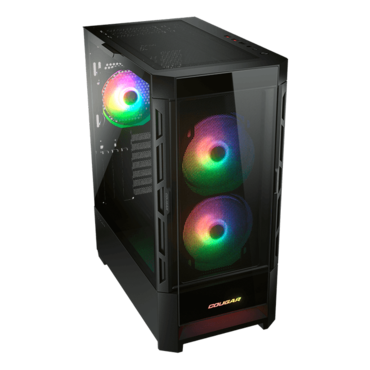

Duoface RGB, Tempered Glass, No PSU, E-ATX, Black, Mid Tower Case
Brilliant Lighting Scenery and Excellent Cooling Performance

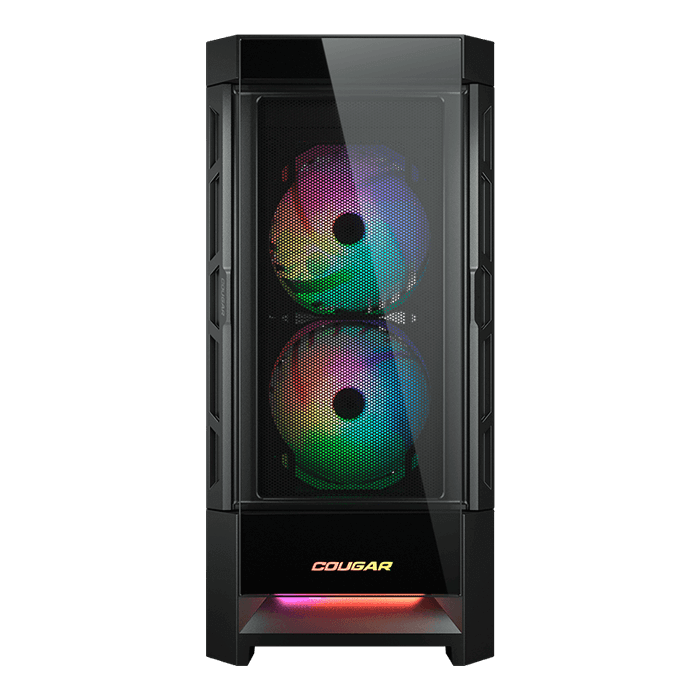

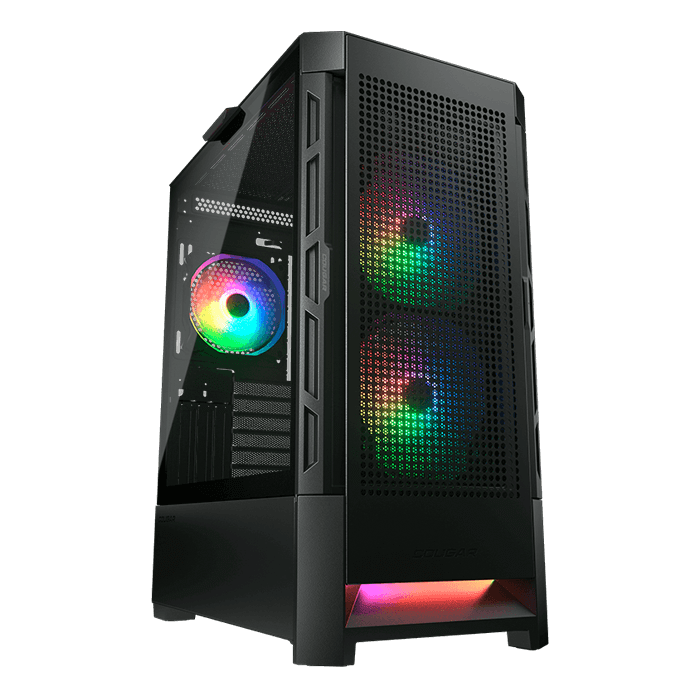

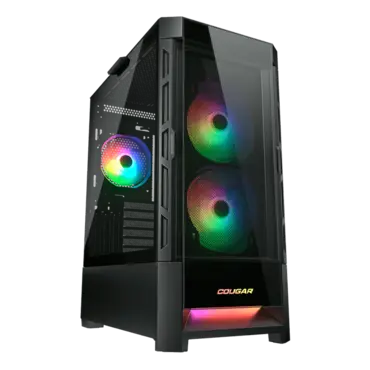

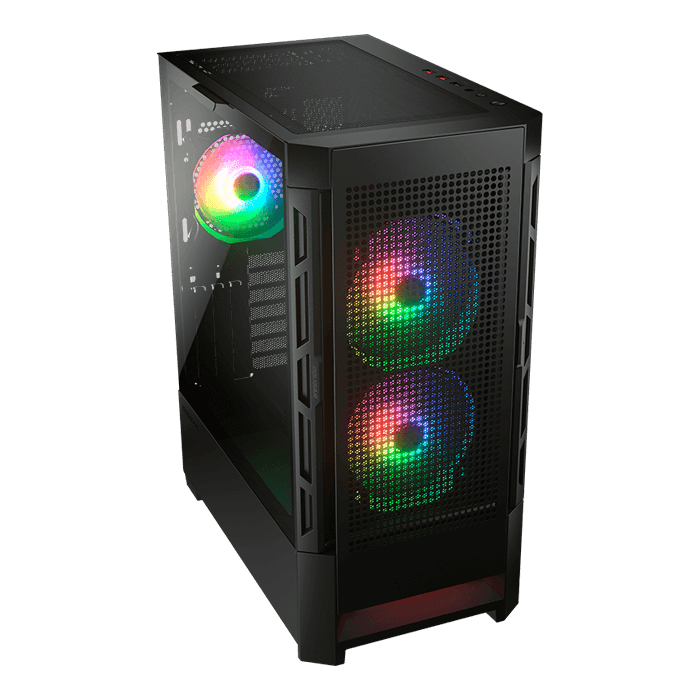

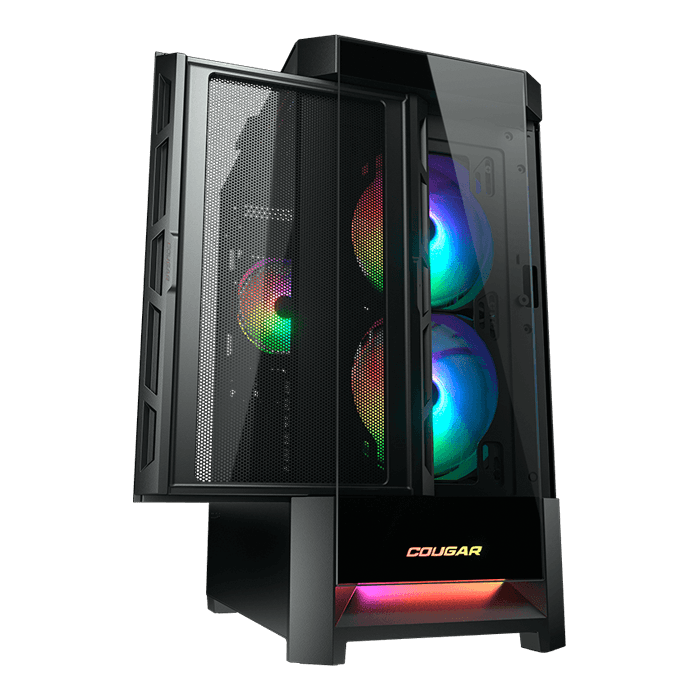

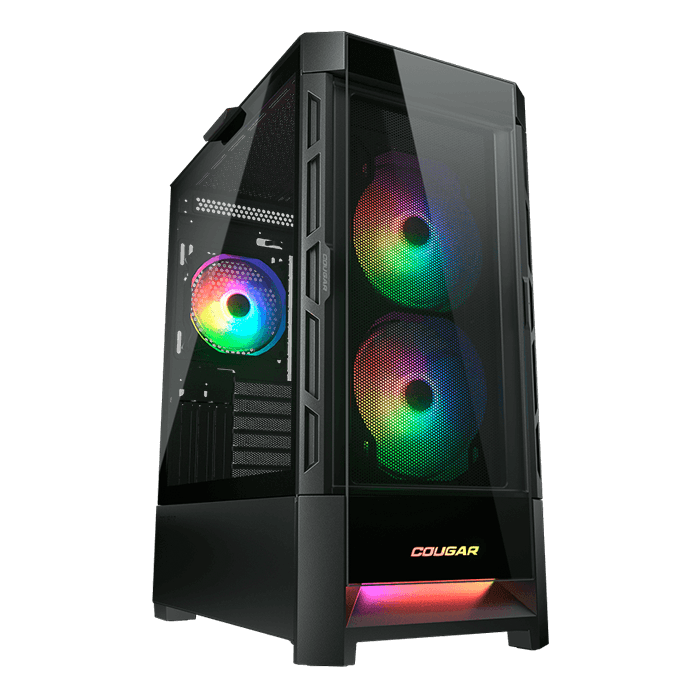

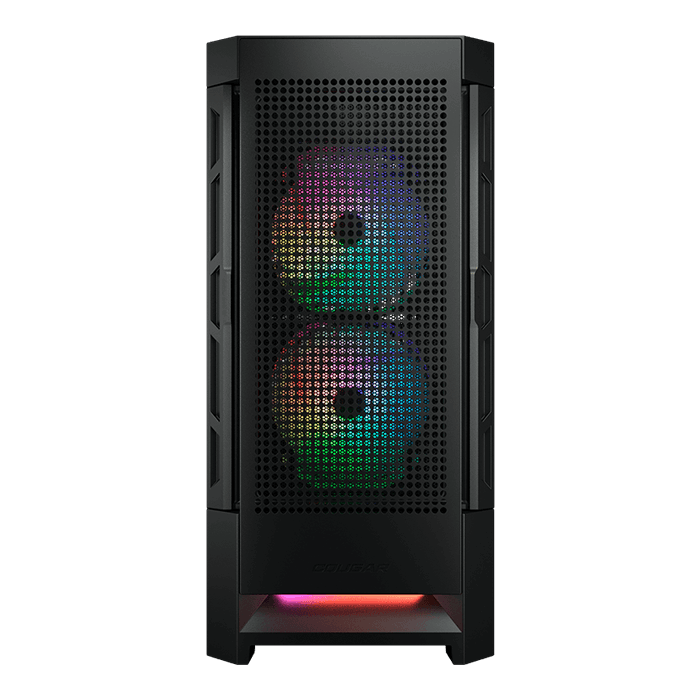

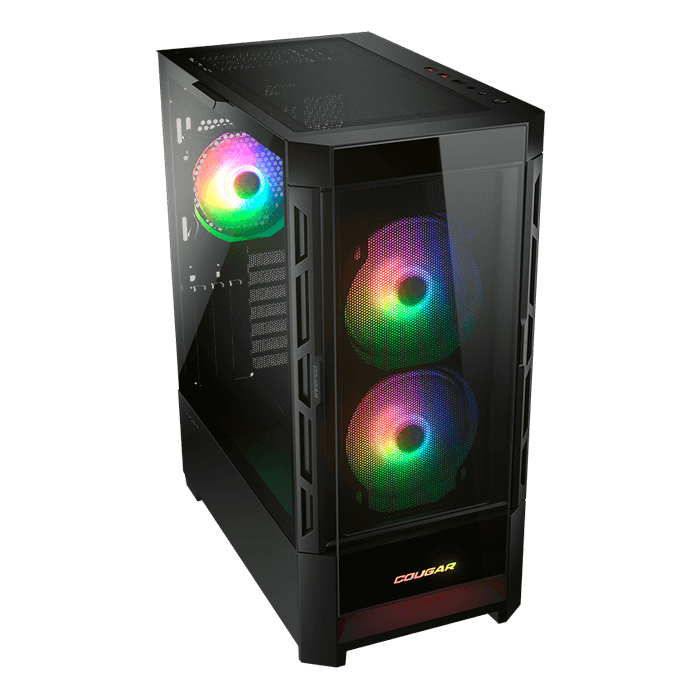

Duoface RGB is a combination of elegance and cooling performance. With two distinctive front panels, one for dazzling RGB lighting effects; the other for superior airflow and optimized cooling performance. Moreover, it also includes two massive 140mm ARGB fans, a 120mm ARGB fan, and a highlighted logo to bring you advanced illumination control. Duoface RGB is a 230mm wide-body design mid tower case that offers abundant space for CPU cooler, cable management, compatibility for a E-ATX motherboard, and high-end graphic cards up to 330mm. It’s an upgrade in every aspect compared to the past gaming cases.
Product Name | Duoface RGB | |
Case Form Factor | Mid Tower | |
Motderboard Type | Mini ITX / Micro ATX / ATX / CEB / *E-ATX | |
Dimensions (WxHxD) |
230 x 491 x 386 (mm) 9.1 x 19.3 x 15.2 (in) |
|

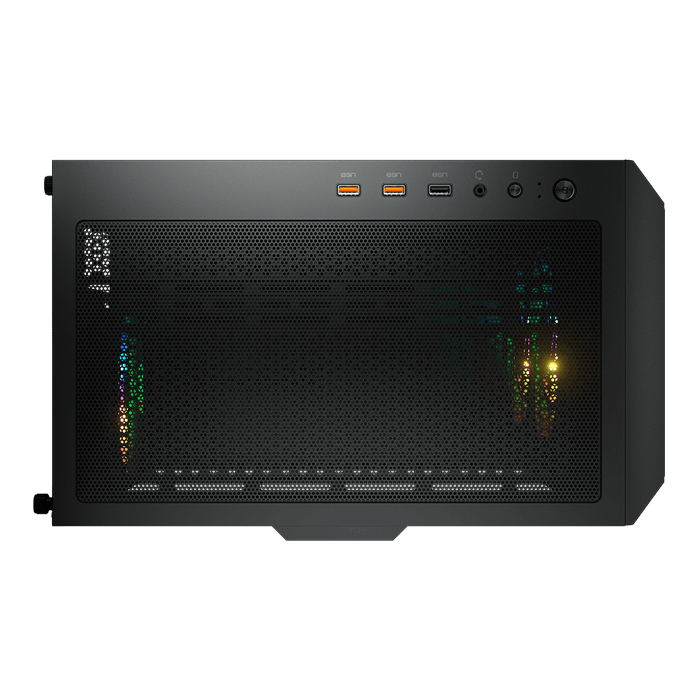

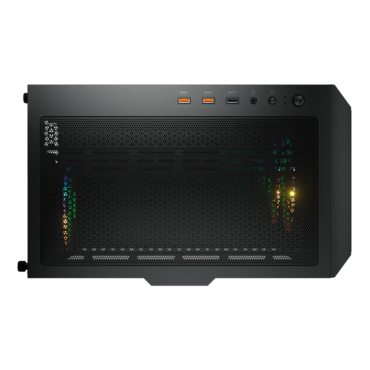

I/O Panel | USB 3.0 x 2, USB 2.0 x 1, 4 Pole Headset Audio Jack x1, RGB Button | |
3.5" Drive Bay | 2 | |
2.5" Drive Bay | 2 (2 SSD trays included) | |
Expansion Slots | 7+3 | |
Vertical GPU Support | Yes | |
Cooling Fan Support | Front | 120mm x 2 / 140mm x 2 |
Top | 120mm x 2 / 140mm x 2 | |
Rear | 120mm x 1 / 140mm x 1 | |
Pre-installed Fans | Front | 140mm ARGB fan x 2 |
Rear | 120mm ARGB fan x 1 | |
Speed | 1000 RPM | |
Connector | 5V 3 Pin (ARGB) / 3 Pin (Fan) | |
Maximun Number of Fans | 5 Max. | |
Water Cooling Support | Front | *280mm / 240mm / 140mm / 120mm |
Top | *280mm / 240mm / 140mm / 120mm | |
Rear | 120mm / 140mm | |

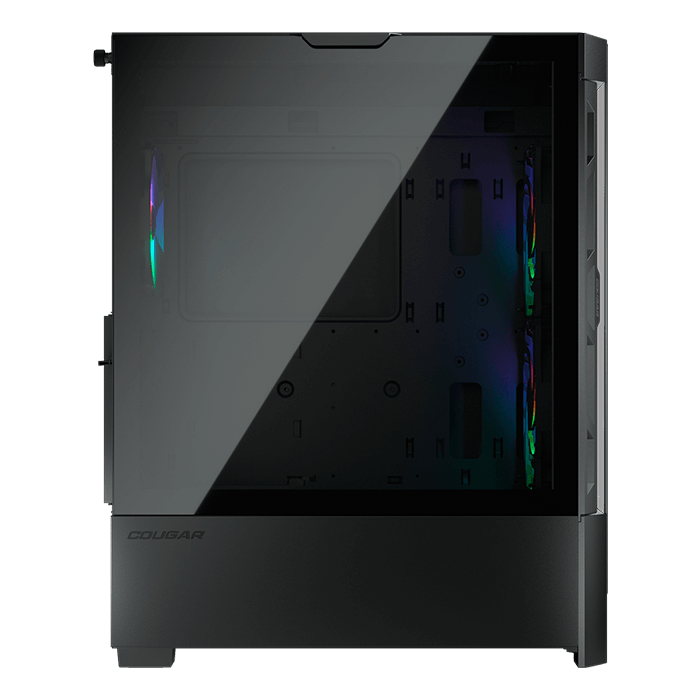

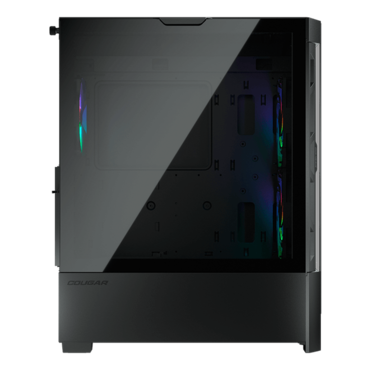

Transparent Left Panel | 4mm Tempered Glass | |
Onboard Lighting System | Yes | |
RGB Sync witd M/B | Yes | |
COUGAR Logo RGB Light | Yes | |
Max. Graphics Card Lengtd | 330 (mm) / 13 (in) | |
Max. CPU Cooler Height | 190 (mm) / 7.5 (in) | |
Max. PSU Lengtd | 160 (mm) / 6.3 (in) |
