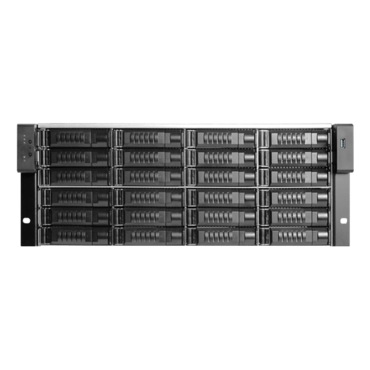

E Storage E4M24HD, 24x 3.5" Hotswap Bays, No PSU, E-ATX, Black, 4U Chassis
- SKU: 12666360
- Manufacturer: ISTARUSA
- MPN: E4M24HD
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
E Storage E4M24HD, 24x 3.5" Hotswap Bays, No PSU, E-ATX, Black, 4U Chassis
The E storage server series (E4M24HD) rackmount not only has the stylish appearance, but the functionality and flexibility make E series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the HD miniSAS 12Gb/s backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.
| Model Number | E4M24HD |
| RoHS Compliance | Yes |
| Form factor | 4 U |
| Standard Drive Bays | 2.5" Drive (internal): 2
Hotswap 3.5": 24 |
| Hotswap HDD Type: | 2.5" & 3.5" SAS I/II/III & SATA I/II/III |
| Indicators | Power + Fan Failure + HDD LED |
| Switches | Power On/Off, Reset, Mute |
| Supported PSU Type | ATX, 2U and Mini Redundant |
| Expansion Slots | 7 |
| Material of Handle | Aluminum |
| Material of Main Chassis | Heavy-duty SGCC Cold-rolled Steel |
| Front Connector | 1x USB 3.0 |
| Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
| Cooling Fan | 3x120mm |
| Dimensions (WxHxD) | 19.00" x 7.00" x 27.00"
482.6 mm x 177.8 mm x 685.8 mm |
