E306L-DE4BL, Blue HDD Handle, 3x 5.25", 3x 3.5" Drive Bays, 4x 3.5" Hotswap Bays, No PSU, E-ATX, Black/Blue, 3U Chassis

Quantity:
  • SKU: 6913829
  • Manufacturer: ISTARUSA
  • MPN: E306L-DE4BL
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$405.95
Quantity:
E306L-DE4BL, Blue HDD Handle, 3x 5.25", 3x 3.5" Drive Bays, 4x 3.5" Hotswap Bays, No PSU, E-ATX, Black/Blue, 3U Chassis

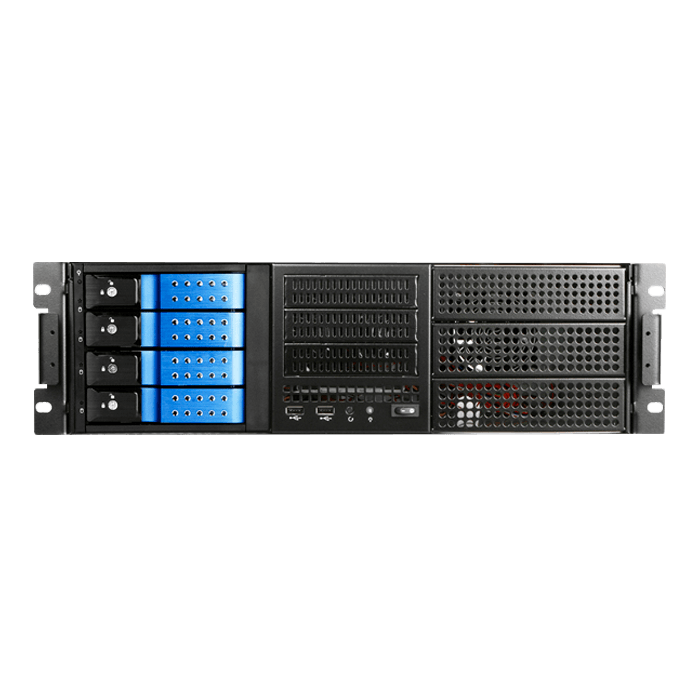

E306L-DE4BL series rackmount chassis is designed with 4 x 3.5" hotswap drive bays, three 5.25" drive bays, and three 3.5" drive bays for any RAID configuration. Four 80mm and two 60mm fans are equipped with chassis to provide the best air ventilation preventing critical equipment from heat damage. E306L-DE4 also supports E-ATX motherbaord and redundant power supply to provide maximum reliability and performance for server applications.

E306L-DE4BL 3U EATX Rugged Rackmount 4x3.5" Trayless Hotswap Chassis

  • 1.2mm Steel Body Chassis
  • Supports E-ATX Motherboard
  • 80mm x4 and 60mm x2 Cooling Fans
  • Supports Front Access USB2.0 x2
  • 4x 3.5" Hotswap Drive Bays with Optional Color
Model Number E306L-DE4BL
RoHS Compliance Yes
Form factor 3 U
Standard Drive Bays 3.5" Drives: 3
Hotswap 3.5": 4
5.25" Drives: 3
Hotswap HDD Type: 3.5" SAS I/II & SATA I/II/III
Indicators Power, HDD
Switches Power, Reset
Supported PSU Type 2U, 3U
Expansion Slots 7
Material of Handle Aluminum
Material of Main Chassis Zinc-Coated Steel SECC 1.2mm
Color of Main Chassis Black
Front Connector 2x USB 2.0
Motherboard Size 12 x 13 (EATX, ATX, microATX)
Cooling Fan 2x60mm, 4x80mm
Ordering Information
(Part Number)
Blue HDD Handle:E306L-DE4BL
Dimensions (WxHxD) 19.00" x 5.19" x 25.10"
482.6 mm x 131.8 mm x 637.5 mm
