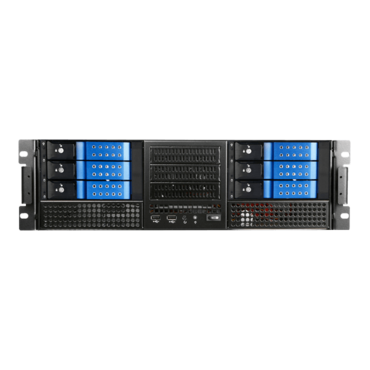

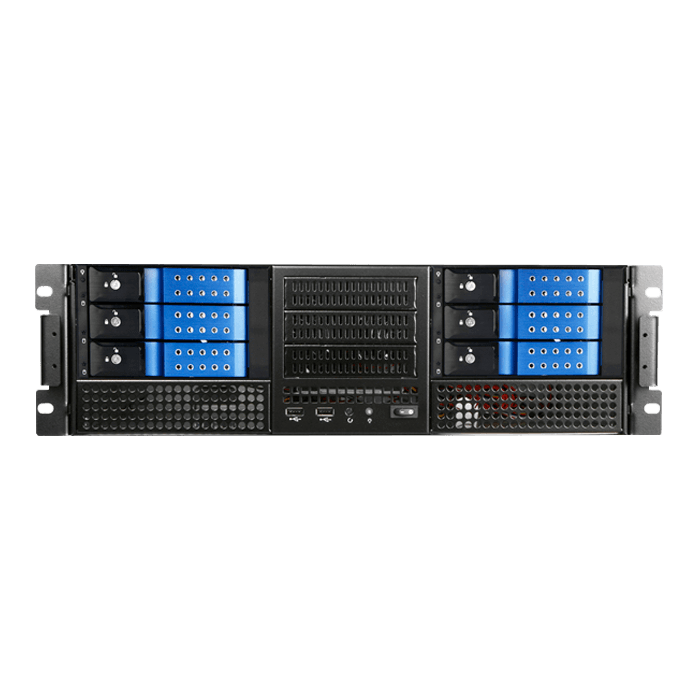

E306L-DE6BL, Blue HDD Handle, 2x 5.25", 3x 3.5" Drive Bays, 6x 3.5" Hotswap Bays, No PSU, E-ATX, Black/Blue, 3U Chassis
Quantity:
- SKU: 6913830
- Manufacturer: ISTARUSA
- MPN: E306L-DE6BL
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$469.20
E306L-DE6BL, Blue HDD Handle, 2x 5.25", 3x 3.5" Drive Bays, 6x 3.5" Hotswap Bays, No PSU, E-ATX, Black/Blue, 3U Chassis
E306L-DE6BL series rackmount chassis is designed with 6 x 3.5" hotswap drive bays, two 5.25" drive bays, and three 3.5" drive bays for any RAID configuration. Four 80mm and two 60mm fans are equipped with chassis to provide the best air ventilation preventing critical equipment from heat damage. E306L-DE6 also supports E-ATX motherbaord and redundant power supply to provide maximum reliability and performance for server applications.
E306L-DE6BL series rackmount chassis is designed with 6 x 3.5" hotswap drive bays, two 5.25" drive bays, and three 3.5" drive bays for any RAID configuration. Four 80mm and two 60mm fans are equipped with chassis to provide the best air ventilation preventing critical equipment from heat damage. E306L-DE6 also supports E-ATX motherbaord and redundant power supply to provide maximum reliability and performance for server applications.
E306L-DE6BL 3U EATX Rugged Rackmount 6x3.5" Trayless Hotswap Chassis
- 1.2mm Steel Body Chassis
- Supports E-ATX Motherboard
- 80mm x4 and 60mm x2 Cooling Fans
- Supports Front Access USB2.0 x2
- 6x 3.5" Hotswap Drive Bays with optional Color
| Model Number | E306L-DE6BL |
| RoHS Compliance | Yes |
| Form factor | 3 U |
| Standard Drive Bays | 3.5" Drives: 3
Hotswap 3.5": 6 5.25" Drives: 2 |
| Hotswap HDD Type: | 3.5" SAS I/II & SATA I/II/III |
| Indicators | Power, HDD |
| Switches | Power, Reset |
| Supported PSU Type | 2U, 3U |
| Expansion Slots | 7 |
| Material of Handle | Aluminum |
| Material of Main Chassis | Zinc-Coated Steel SECC 1.2mm |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
| Cooling Fan | 2x60mm, 4x80mm |
| Ordering Information
(Part Number) |
Blue HDD Handle:E306L-DE6BL |
| Dimensions (WxHxD) | 19.00" x 5.19" x 25.10"
482.6 mm x 131.8 mm x 637.5 mm |
