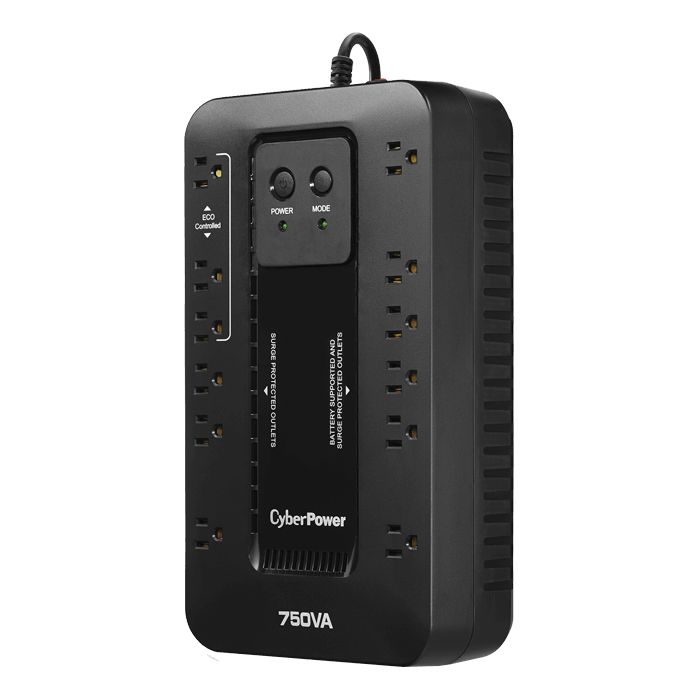

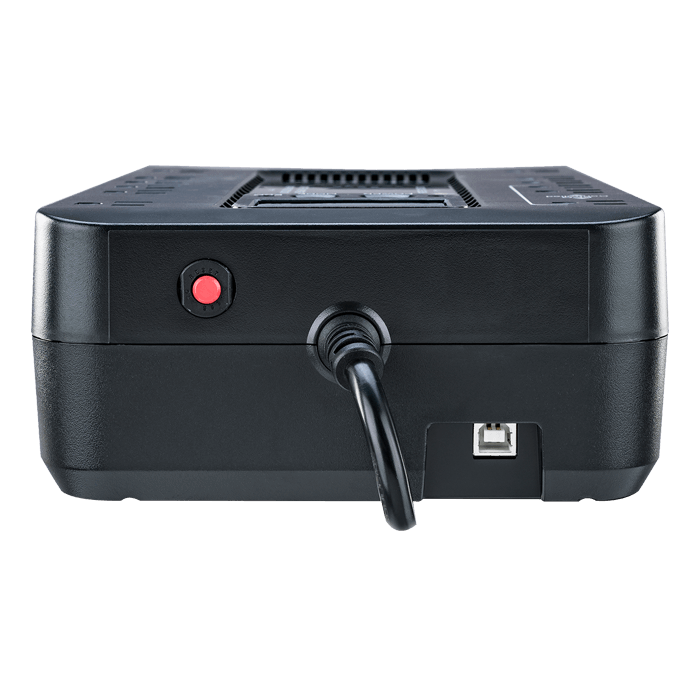

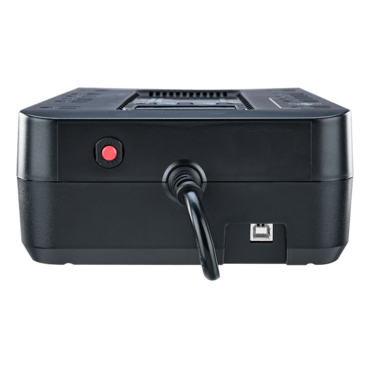

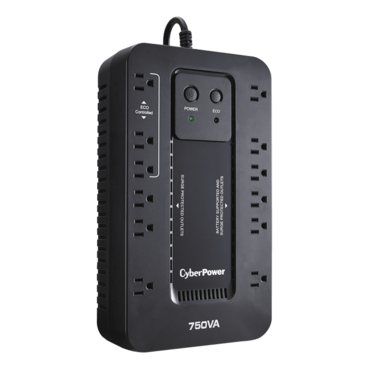

EC750GTAA, 750 VA/450 W, Simulated Sine Wave, Tower UPS - TAA Compliant
Quantity:
- SKU: 10281521
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: EC750GTAA
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$118.95
- Capacity:750 VA / 450 W
- Topology:Standby
- Waveform:Simulated Sine Wave
- Output:120 VAC ± 5%
- Plug type & cord:NEMA 5-15P, 5 ft. cord
- Outlet types:12 × NEMA 5-15R
- Communication:USB
- Management software:PowerPanel® Personal
- Warranty:3 year
| General | |
| Energy Saving | GreenPower UPS™ High-Efficiency |
| Energy Star Certified | Yes |
| UPS Topology | Standby |
| Battery | |
| Battery Type | Sealed Lead-Acid Battery |
| Field-serviceable Battery | Replaceable by qualified technician |
| Runtime at Full Load | 2.8 min |
| Runtime at Half Load | 10 min |
| Typical Recharge Time | 8 Hours |
| Input | |
| Circuit Breaker | 15 A |
| Cord Lengtd | 5 ft (1.5 m) |
| Input Frequency Range | 47 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Right Angle – 45° Offset |
| Output | |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 1% (auto-sensing) |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | 12 – NEMA 5-15R |
| Outlets – Battery & Surge Protected | 6 |
| Outlets – Eco Controlled | 3 |
| Outlets – Surge-Only Protected | 6 |
| Outlets – Total | 12 |
| Outlets – Widely Spaced | 4 |
| Output Power Factor | 0.6 |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | 4 ms |
| USB Charge Port | No |
| VA | 750 VA |
| Watts | 450 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 526 J |
| Management & Communications | |
| Audible Alarms |
Battery Mode Low Battery Overload |
| HID Compliant USB Port | Yes |
| LED Indicators |
Power On ECO On/Off |
| Management Cable | USB Cable |
| Software (Free Download) | PowerPanel® Personal |
| Physical | |
| Color | Black |
| Form Factor | Compact |
| Keyhole Mounting Slots | Yes |
| Material of Construction | Plastic |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 30.99 x 7.87 x 17.78 (cm) |
| Physical Dimensions – (WxHxD) (in) | 12.2 x 3.1 x 7 (in) |
| Physical Dimensions – (WxHxD) (mm) | 310 x 79 x 178 (mm) |
| Physical Weight (kg) | 3.49 |
| Physical Weight (lb) | 7.7 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 8.87 |
| Shipping – Weight (lb) | 19.56 |
| Shipping Dimensions – (WxHxD) (cm) | 10.92 x 24.13 x 38.1 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 4.3 x 9.5 x 15.0 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 109.22 x 241.3 x 381.0 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
UL1778 FCC Part 15 Class B CSA C22.2 No. 107.3-05 FCC DOC Class B |
| Warranty | |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U1B |
| Product Warranty | 3 Year Limited Warranty |
