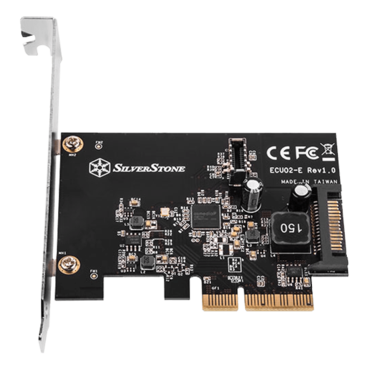

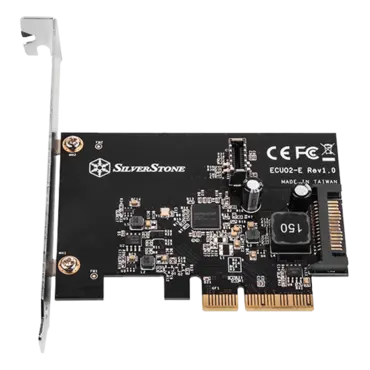

ECU02-E, 1 x USB-C Type-E Connector to PCI Express 3.0 x2 Add-On Card

Quantity:
  • SKU: 13619772
  • Manufacturer: SILVERSTONE
  • MPN: ECU02-E
  • Availability: LOW STOCK
Starting At
$55.55
Quantity:
  • Includes one USB 3.2 Gen 2 internal 20pin Key-A connector
  • PCIe Gen 3.0 x2 throughput up to 16GT/s
  • Compliant with eXtensible Host Controller Interface (xHCI) specification Revision 1.1
  • Compliant with USB Attached SCSI Protocol Revision 1.0 (UASP)
  • Includes optional low profile slot cover for supporting low profile cases
Model No. SST-ECU02-E
Power requirement 5V via SATA 15pin power connector
Form factor Low profile - PCIe 3.0 x2 (16GT/s)
USB Ports Internal 20 pin Key-A connector for USB 3.2 Gen2 Type-C port
USB 3.1 controller ASMEDIA ASM3142
Transmitting Speed USB 3.2 Gen2 (10Gbps), USB 3.1 Gen 1 / USB 3.0 (5Gbps), USB 2.0 (480Mbps), USB 1.1 (12Mbps)
Operating system support Windows 7* / 8 / 8.1 / 10** (32bit / 64bit) or future release version, Ubuntu / Linux / Mac OS***
Power Management Support USB 3.2 and USB 2.0 link power management
Extra UASP and Multiple INs function
Current protection Support over current detection and protection
Operation Temperature Operating temperature range: 0 ~ 70 ºC
Storage temperature range: -20 ~ +70 ºC
Humidity range: 5 ~ 95% RH
Net weight 47g
Dimension 123mm (W) x 21mm (H) x 105mm (D)
4.84" (W) x 0.83" (H) x 4.13" (D)
