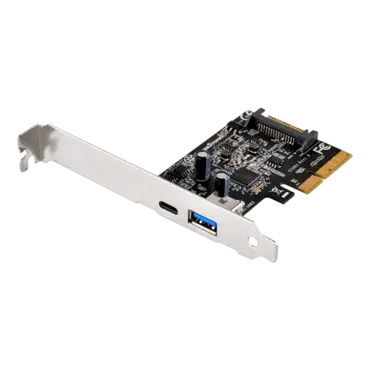

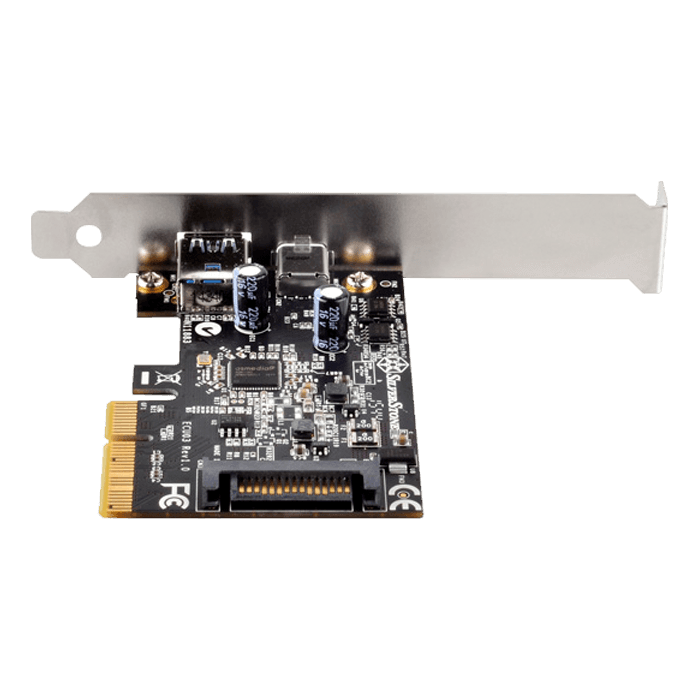

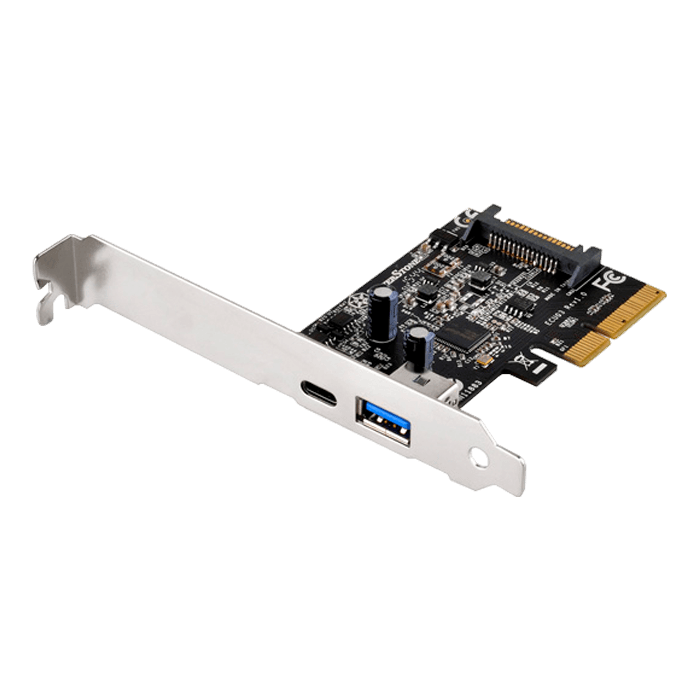

ECU03 2-Port USB 3.1 Gen 1/2 Type A/C PCI Express Host Card
Quantity:
- SKU: 10858213
- Manufacturer: SILVERSTONE
- MPN: ECU03
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$45.77
- SuperSpeed USB 3.1 with Type A and Type C ports
- PCI-E Gen2.0 x2, throughput up to 10Gbps
- Compliant with eXtensible Host Controller Interface (XHCI) specification Revision 1.1
- Compliant with USB Attached SCSI Protocol Revision 1.0 (UASP)
- Includes optional low profile slot cover for supporting low profile cases
| Model No. | SST-ECU03 |
| Power requirement | 5V via SATA 15-pin power connector |
| Form factor | Low profile - PCI-E 2.0 x2 (10Gbps) |
| USB Ports |
USB 3.1 Type-A x 1 USB 3.1 Type-C x 1, DFP with Rp=10KΩ and up to 5V 3A |
| USB 3.1 controller | ASMedia ASM1142 |
| Transmitting Speed | USB 3.1 Gen2 (10Gbps), USB 3.1 Gen1/USB 3.0 (5Gbps), USB 2.0 (480Mbps), USB 1.1 (12Mbps) |
| Operating system support | Windows 7 (32bit/64bit)*, 8/8.1/10(32bit/64bit)**, Ubuntu/Linux/Mac OS*** |
| Power Management | Support USB 3.1 and USB 2.0 link power management |
| Current protection | Support over current detection and protection |
