ECU07, 1 x USB-C Type-E Connector to PCI Express 3.0 x4 Add-On Card

  • SKU: 14607892
  • Manufacturer: SILVERSTONE
  • MPN: SST-ECU07
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
ECU07, 1 x USB-C Type-E Connector to PCI Express 3.0 x4 Add-On Card

SilverStone ECU07 (SST-ECU07). SuperSpeed USB 20Gbps / internal USB-C Key-A 3.2 Gen 2x2 PCIe expansion card.

  • SuperSpeed USB 20Gbps
  • Internal USB Type-C Key-A connector
  • PCI Express Gen3 x4 lanes, transfer rate up to 32GT/s
  • Compliant with PCI Express Base 3.1a specification.
  • Compliant with eXtensible Host Controller Interface (xHCI) specification Revision 1.1
  • Compliant with USB Attached SCSI Protocol (UASP) Revision 1.0

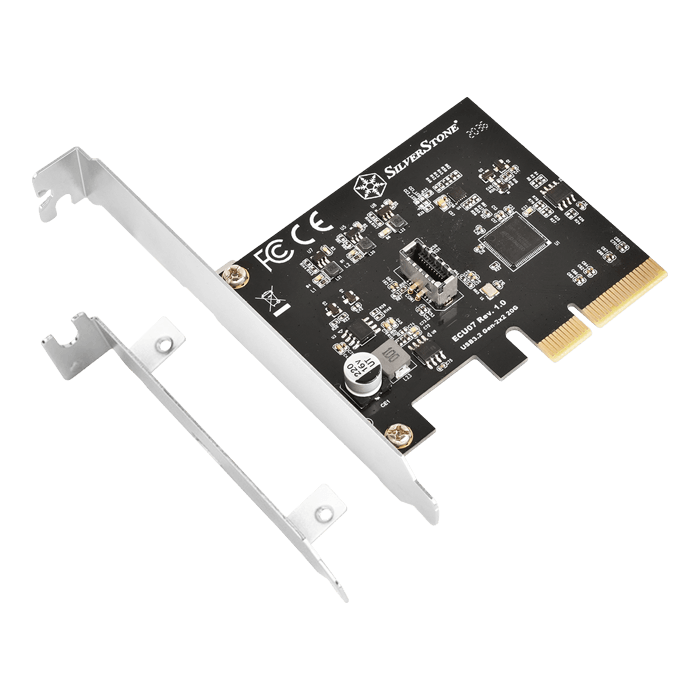

  • Includes optional low profile slot cover for supporting low profile cases
Model No. SST-ECU07
Power requirement PCI Express bus power
Form factor Low profile – PCI Express Gen 3 x4 (32GT/s)
USB Ports Internal USB 3.2 Gen 2x2 Type-C Key-A connector
USB 3.2 controller ASMedia ASM3242
Transmitting Speed USB 3.2 Gen 2x2 (20Gbps), USB 3.2 Gen 2x1 (10Gbps), USB 3.2 Gen 1 (5Gbps), USB 2.0 (480Mbps), USB 1.1 (12Mbps)
Operating system support Windows 8-10, Windows Server 2016-2019, Mac10.X, Linux OS* in-box xHCI driver natively support UASP, no additional driver required
Power Management Support USB 3.2 and USB 2.0 link power management
Extra UASP and Multiple INs function
Current protection Support over current detection
Operation Temperature Operating temperature range: 0 ~ 85 ºC
Storage temperature range: -20 ~ +70 ºC
Humidity range: 5 ~ 95% RH
Net weight 47g
Dimension 123mm(W) x 21mm(H) x 105mm(D)
4.84" (W) x 0.83" (H) x 4.13" (D)
