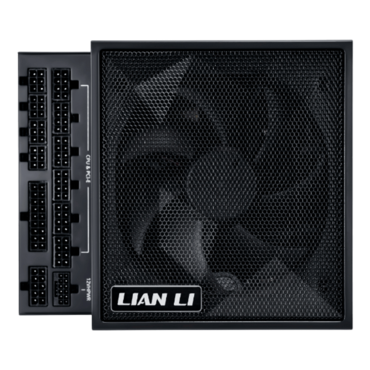

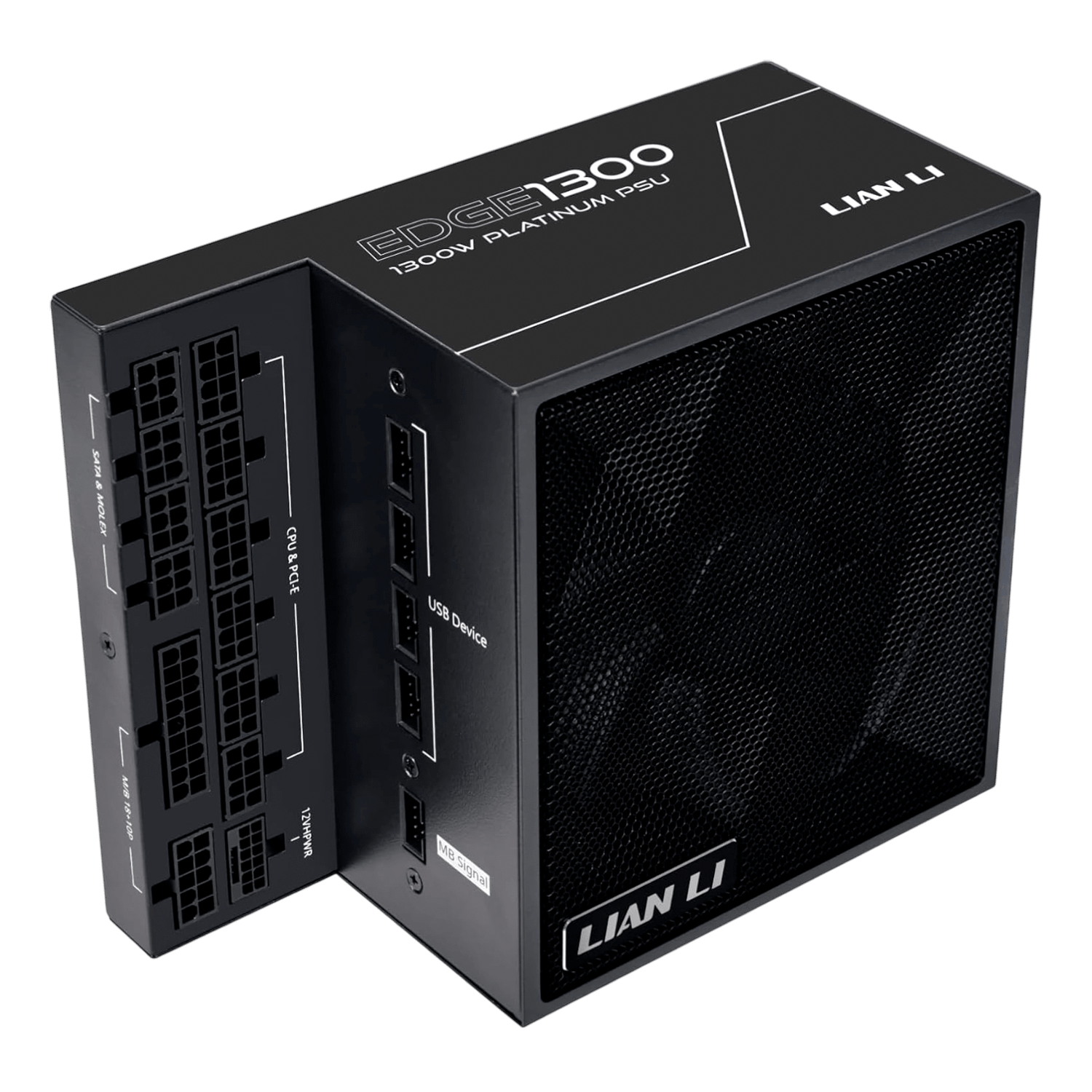

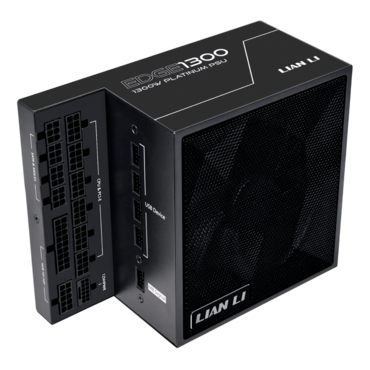

EDGE1300, 80 PLUS Platinum 1300W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 17789282
- Manufacturer: LIAN LI
- MPN: EG1300 BLACK
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$234.96
| MODEL NAME | EDGE1300 |
| MODEL NO. | EG1300 |
| COLOR | Black |
| DIMENSIONS | (D)182 mm X (W)86 mm X (H)150 mm |
| POWER SUPPLY DESIGN | Fully modular |
| MATERIAL | Steel |
| FORM FACTOR | ATX 3.1 |
| CERTIFICATION | 80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM |
| MAX. DC OUTPUT | 1300W |
| COMBINED +3.3V & +5V | 120W |
| COMBINED +12V | 1296W |
| INPUT VOLTAGE | 100-240Vac |
| INPUT FREQUENCY RANGE | 15-7.5A 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz |
| EFFICIENCY | 92.39% MAX |
| PROTECTIVE CIRCUIT | OCP/OVP/OTP/OPP/SCP/UVP/SIP/NLP |

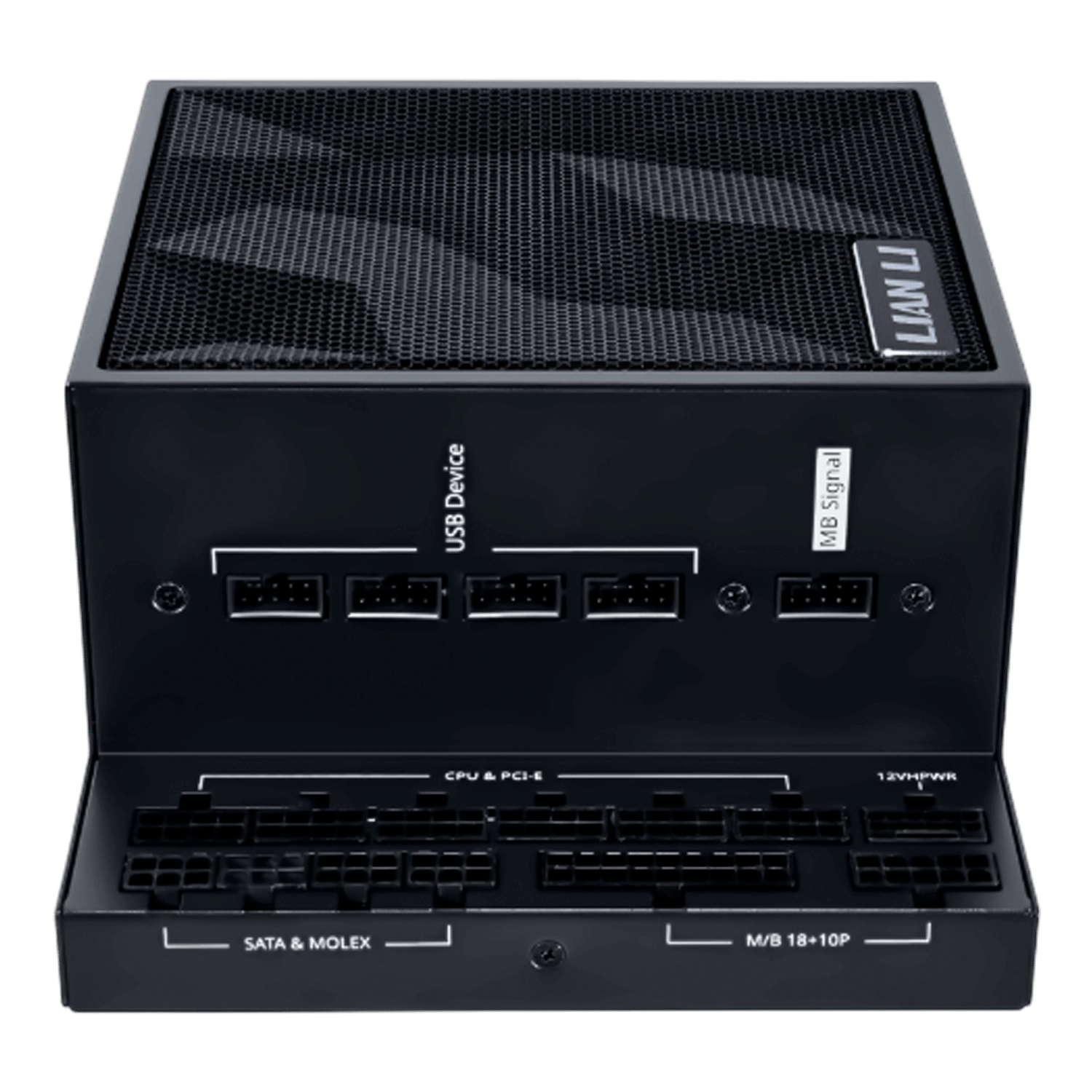

| CONNECTORS |
1 x 24/20-Pin motherboard connector (500mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs 1 x 8/6+2 Pin PCle connector (550m m) x4pcs 1 x 12V-2×6 connector (550mm) × 1pcs 1 x 12VHPWR – 2 x 8pin connector (550mm) × 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x2pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (400mm-125mm*2) x1pcs USB*9pin – USB*9pin connector (350mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
| FAN TYPE | 120mm FDB Fan |
| FAN SPEED | 2400RPM |
| FAN NOISE LEVEL | 33.61dBA |
| WARRANTY | 10 Years |
