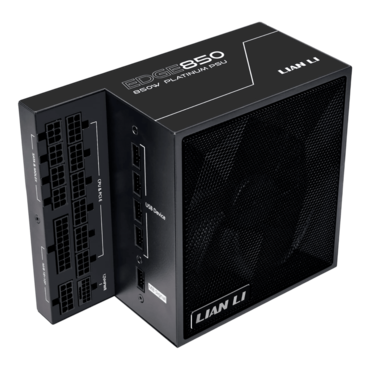

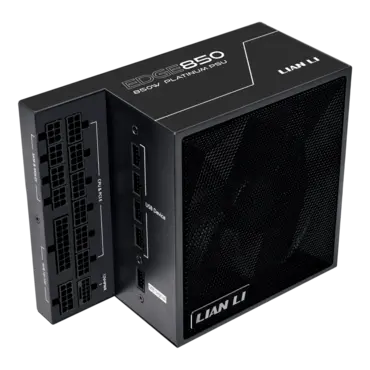

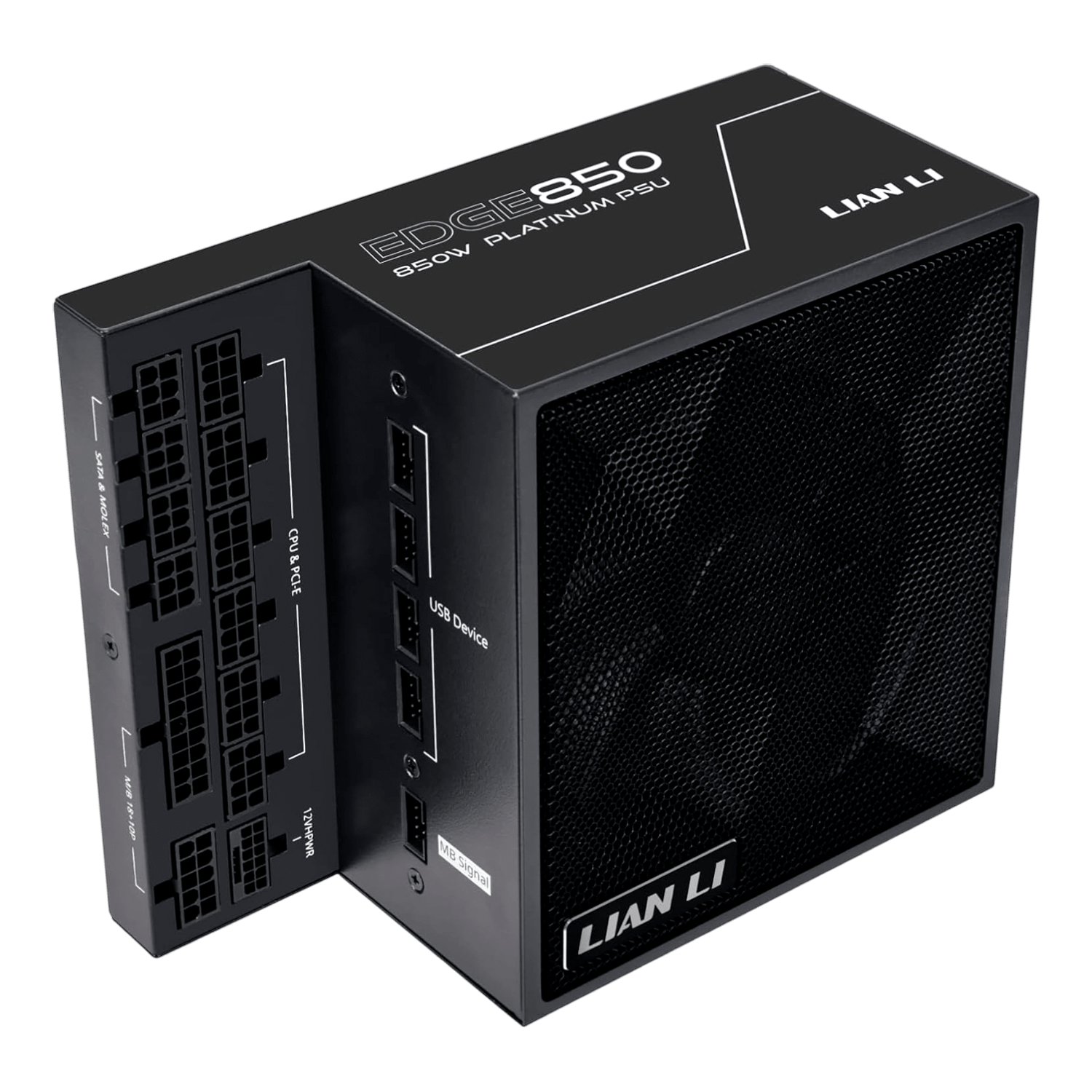

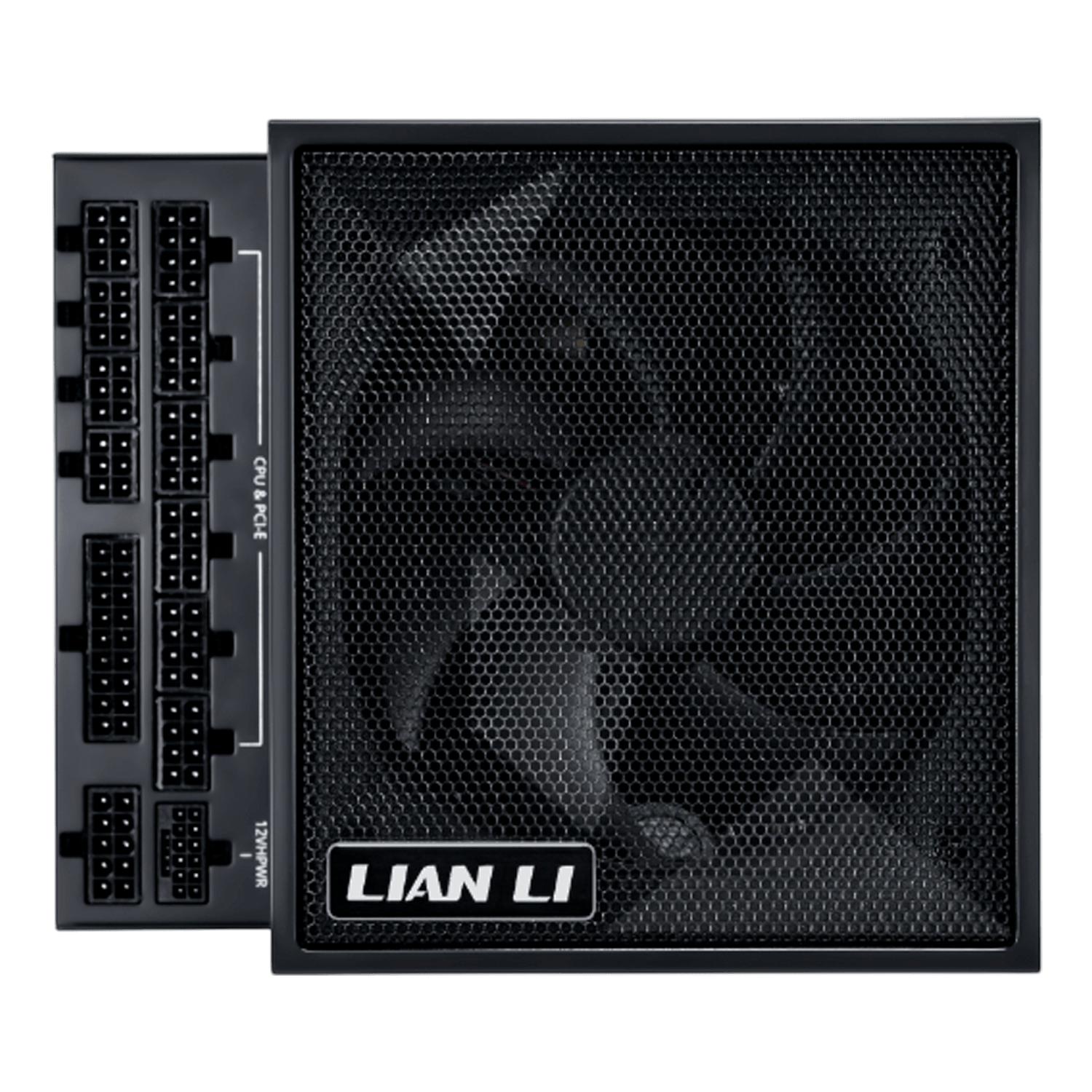

EDGE850, 80 PLUS Platinum 850W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 17822993
- Manufacturer: LIAN LI
- MPN: EG0850BE.US
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$159.42
| MODEL NAME | EDGE850 | ||
| MODEL NO. | EG0850 | ||
| COLOR | Black | ||
| DIMENSIONS | (D)182 mm X (W)86 mm X (H)150 mm | ||
| POWER SUPPLY DESIGN | Fully modular | ||
| MATERIAL | Steel | ||
| FORM FACTOR | ATX 3.1 | ||
| CERTIFICATION | 80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM | ||
| MAX. DC OUTPUT | 850W | ||
| COMBINED +3.3V & +5V | 120W | ||
| COMBINED +12V | 849.6W | ||
| INPUT VOLTAGE | 100-240Vac | ||
| INPUT FREQUENCY RANGE | 10-5A 50-60Hz | ||
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz | ||
| EFFICIENCY | 92.41%MAX | ||
| PROTECTIVE CIRCUIT | OCP/OVP/OTP/OPP/SCP/UVP/SIP/NLP | ||

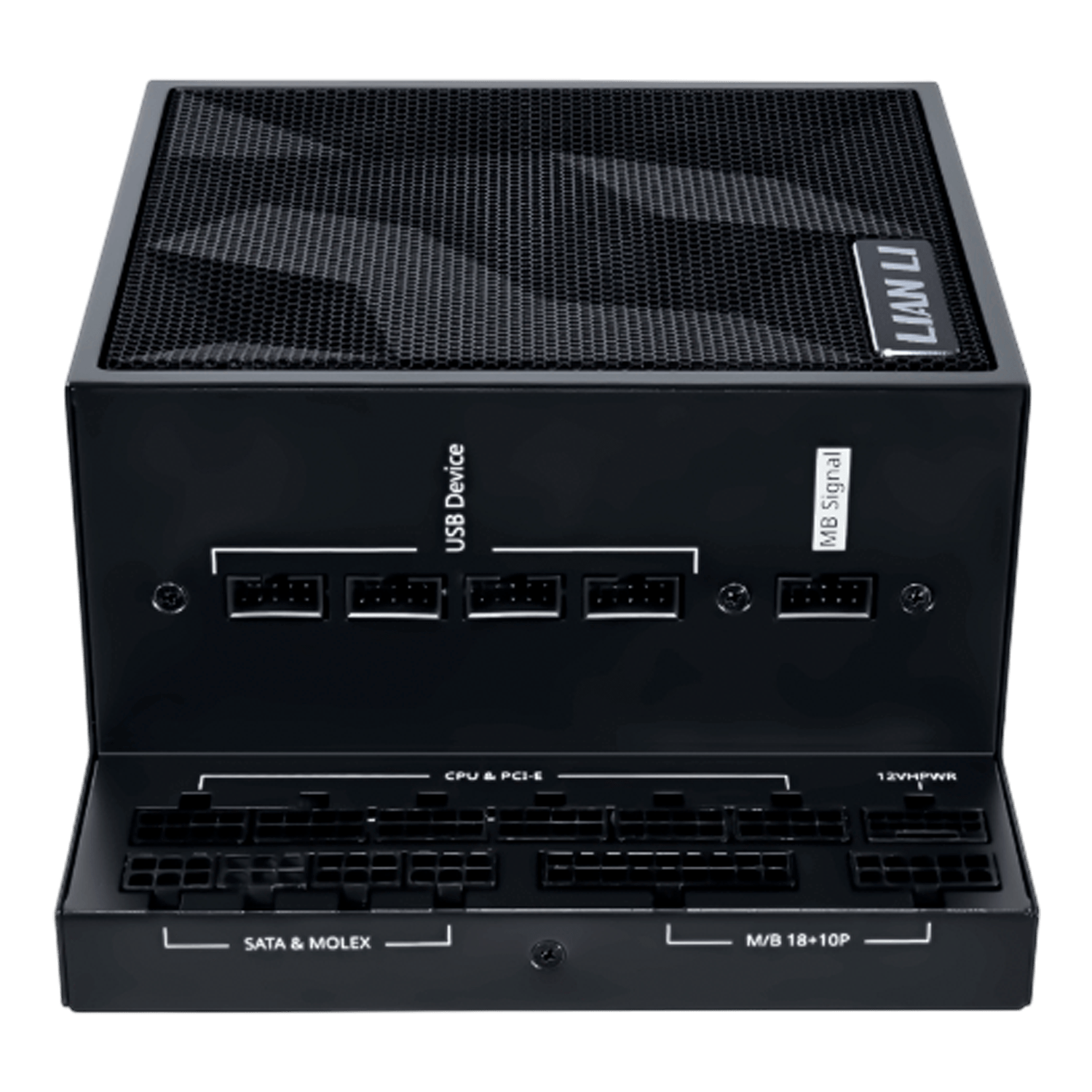

| CONNECTORS |
1 x 24/20-Pin motherboard connector (500mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs 1 x 8/6+2 Pin PCle connector (550m m) x3pcs 1 x 12V-2×6 connector (550mm) × 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (400mm-125mm x 2) x1pcs USB*9pin – USB*9pin connector (350mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
||
| FAN TYPE | 20mm FDB Fan | ||
| FAN SPEED | 2000RPM | ||
| FAN NOISE LEVEL | 25.96dBA | ||
| WARRANTY | 0 Years | ||
