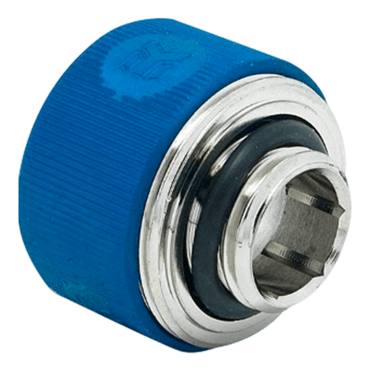

EK-HDC Fitting 16mm (5/8") G1/4 - Blue
- SKU: 11020063
- Manufacturer: ekwb
- MPN: 3831109846124
- Availability: LOW STOCK

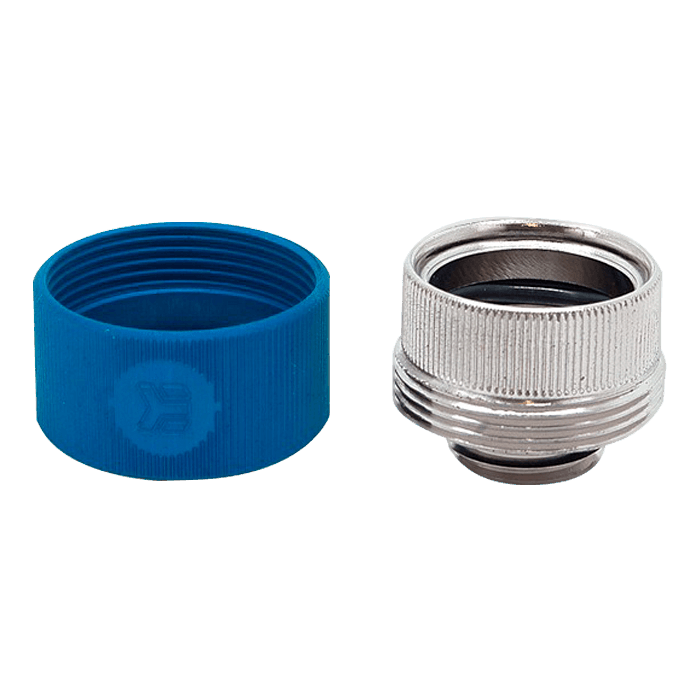

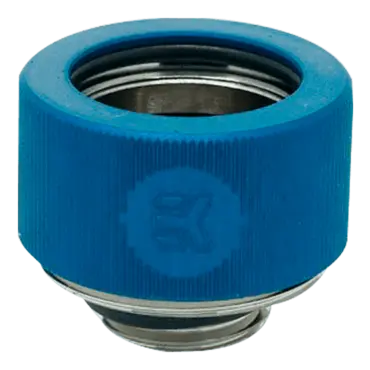

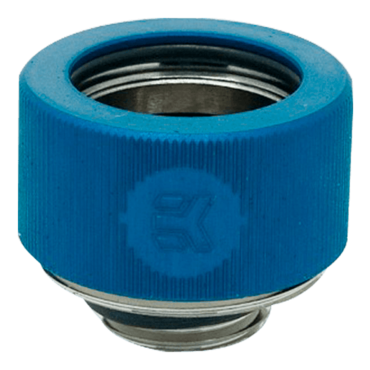

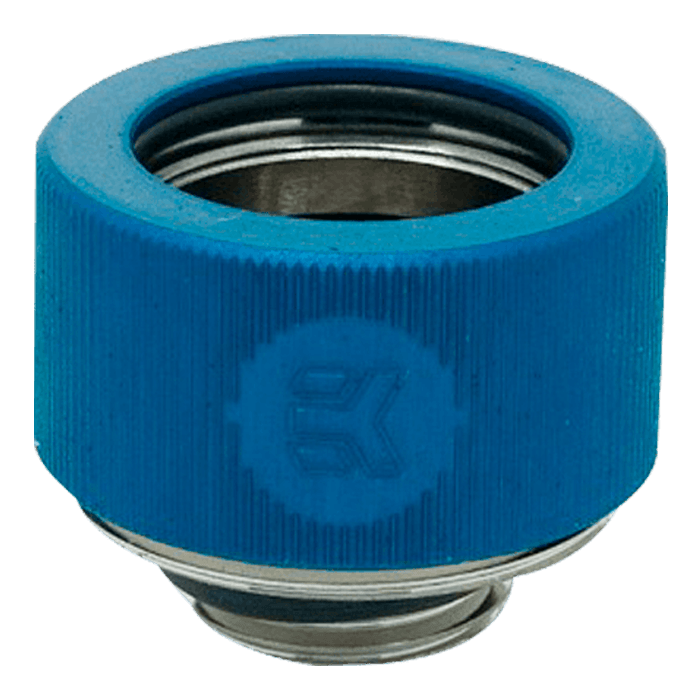

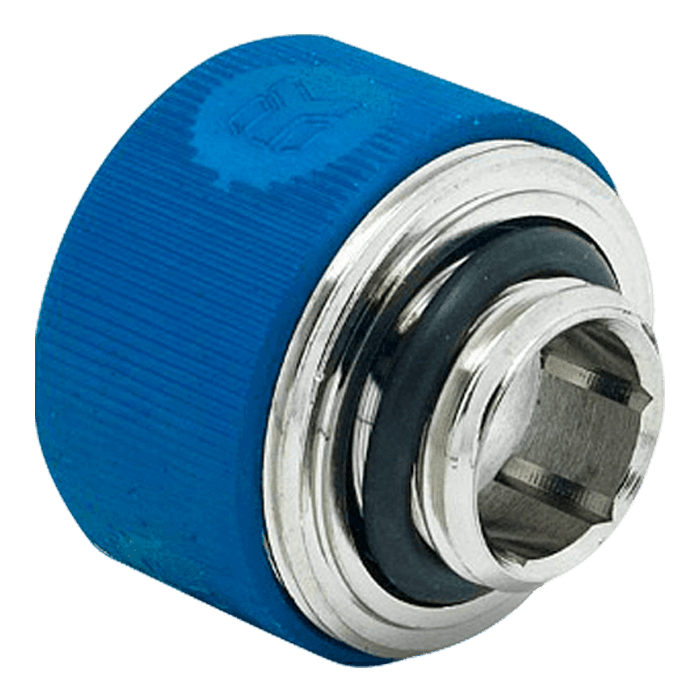

EK-HDC Fitting 16mm G1/4 - Blue is a solid-tube compression fitting, designed for use with solid tubing such as Acrylic, Copper, Stainless Steel or any other type of compatible hard tube.
Technical data:
- thread: G1/4" BSP; 4.5mm male thread lenght
- supported tube: 16mm (OD)
- outer diameter of a fitting: 23.8mm
- installed height: 14.5mm
- compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube
ROHS Compliant!
Made in Slovenia - Europe!
PLEASE NOTE:
- Please wet the gasket (o-ring) using drops of water prior to installing solid tube.
- Do not use excessive force when inserting solid tube!
- It is mandatory to chamfer the edges of freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer.
| Brand | EK Waterblocks |
|---|---|
| Model # | EK-HDC16-BL |
| Color | No |
| Fitting Type | Rigid Compression |
| Fitting Size | 12mm/16mm |
| Fitting Angle | Straight |
| Fitting Finish | Blue Chrome |
| Fitting Accents | No |
| Weight | 0.1000 |
