EK-HDC Fitting 16mm (5/8") G1/4 - Elox Black

Quantity:
  • SKU: 11020041
  • Manufacturer: ekwb
  • MPN: 3831109846094
  • Availability: LOW STOCK
Starting At
$5.59
Quantity:

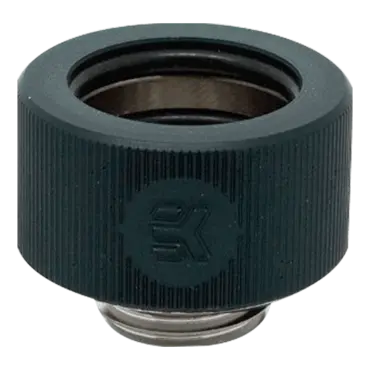

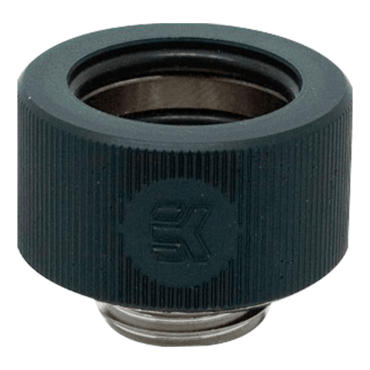

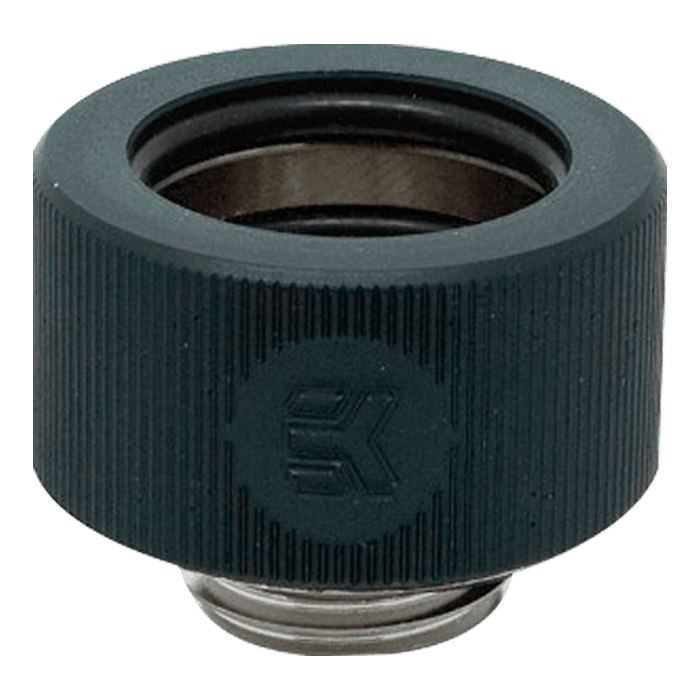

EK-HDC Fitting 16mm (5/8") G1/4 - Elox Black

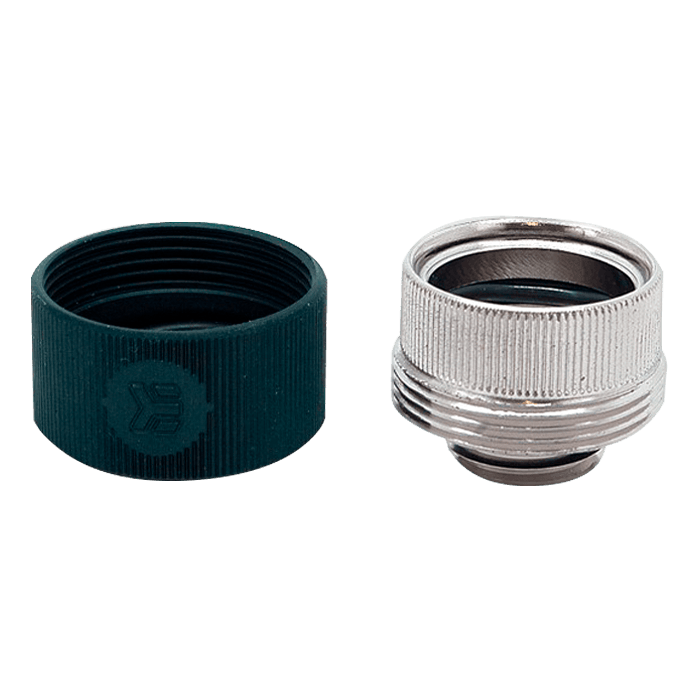

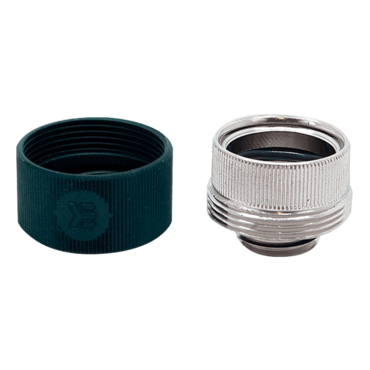

EK-HDC Fitting 16mm G1/4 - Elox Black is a solid-tube compression fitting, designed for use with solid tubing such as Acrylic, Copper, Stainless Steel or any other type of compatible hard tube.

Technical data:

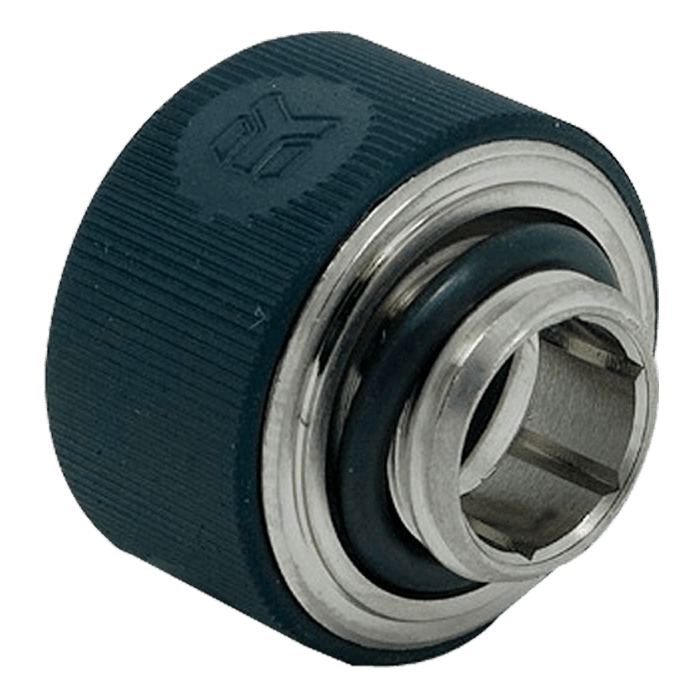

- thread: G1/4" BSP; 4.5mm male thread lenght
- supported tube: 16mm (OD)
- outer diameter of a fitting: 23.8mm
- installed height: 13mm
- compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube

ROHS Compliant!

Made in Slovenia - Europe!

PLEASE NOTE:

  • Please wet the gasket (o-ring) using drops of water prior to installing the solid tube.
  • Do not use excessive force when inserting solid tube!
  • Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
  • It is mandatory to chamfer the edges of the freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer.
