EK-HDC Fitting 16mm (5/8") G1/4 - Green

Quantity:
  • SKU: 11020098
  • Manufacturer: ekwb
  • MPN: 3831109847435
  • Availability: LOW STOCK
Starting At
$10.33
Quantity:

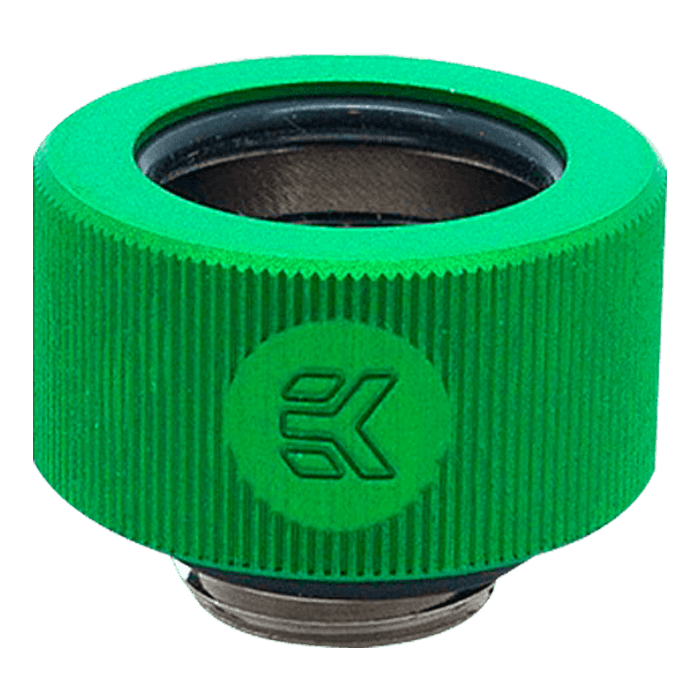

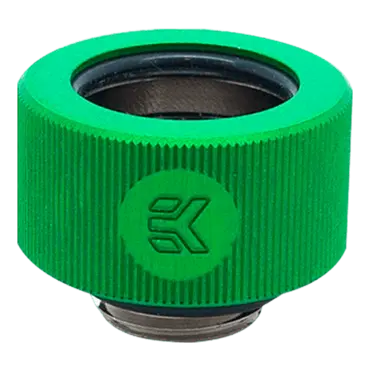

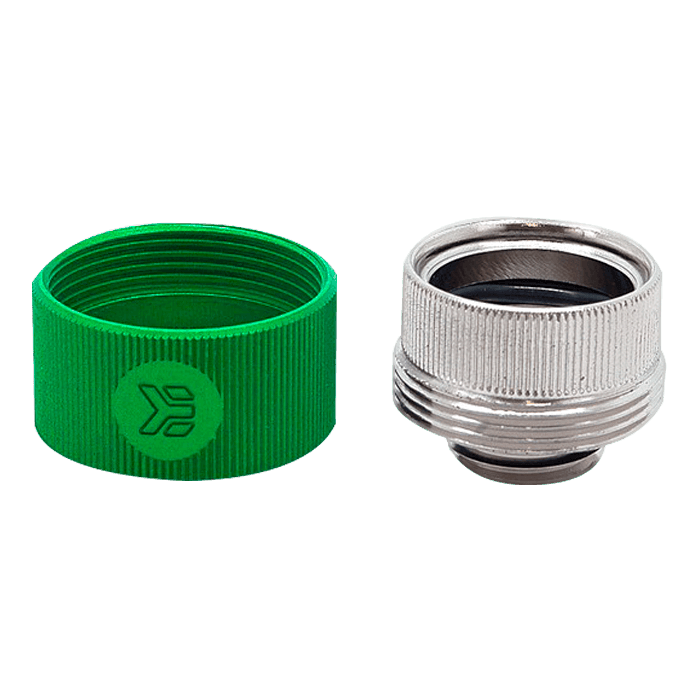

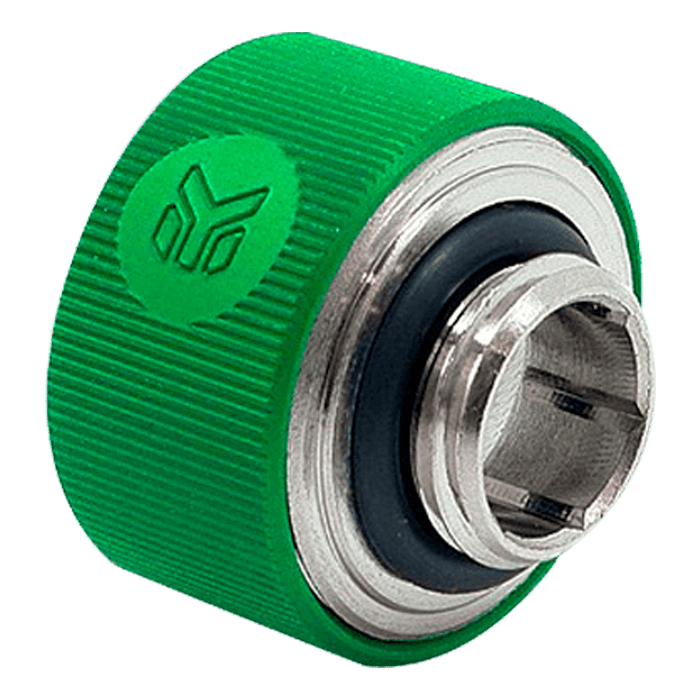

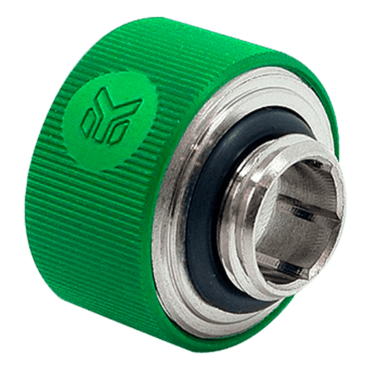

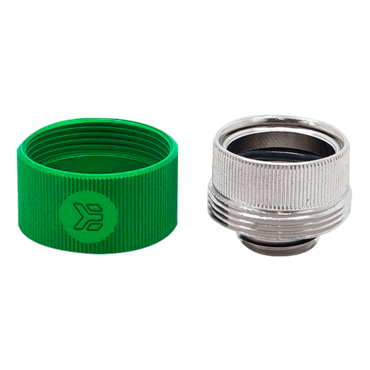

EK-HDC Fitting 16mm (5/8") G1/4 - Green

EK-HDC Fitting 16mm G1/4 - Green is a solid-tube compression fitting, designed for use with solid tubing such as Acrylic, Copper, Stainless Steel or any other type of compatible hard tube.

Technical data:
- thread: G1/4" BSP; 4.5mm male thread lenght
- supported tube: 16mm (OD)
- outer diameter of a fitting: 23.8mm
- installed height: 14.5mm
- compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube

ROHS Compliant!

Made in Slovenia - Europe!

PLEASE NOTE:
Please wet the gasket (o-ring) using drops of water prior to installing solid tube.
- Do not use excessive force when inserting solid tube!
- It is mandatory to chamfer the edges of freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer.

Brand EK Waterblocks
Model # EK-HDC16-GR
Color No
Fitting Type Rigid Compression
Fitting Size 12mm/16mm
Fitting Angle Straight
Fitting Finish Green Chrome
Fitting Accents No
Weight 0.1000
