EK-Loop OmniLink Molex Power
- SKU: 17351879
- Manufacturer: EK
- MPN: 3831109897461
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

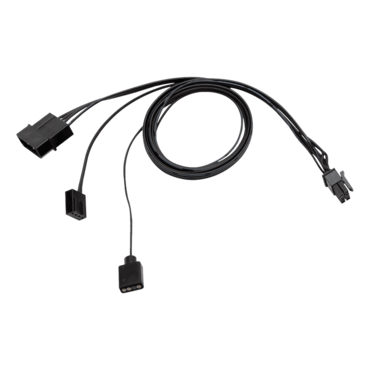

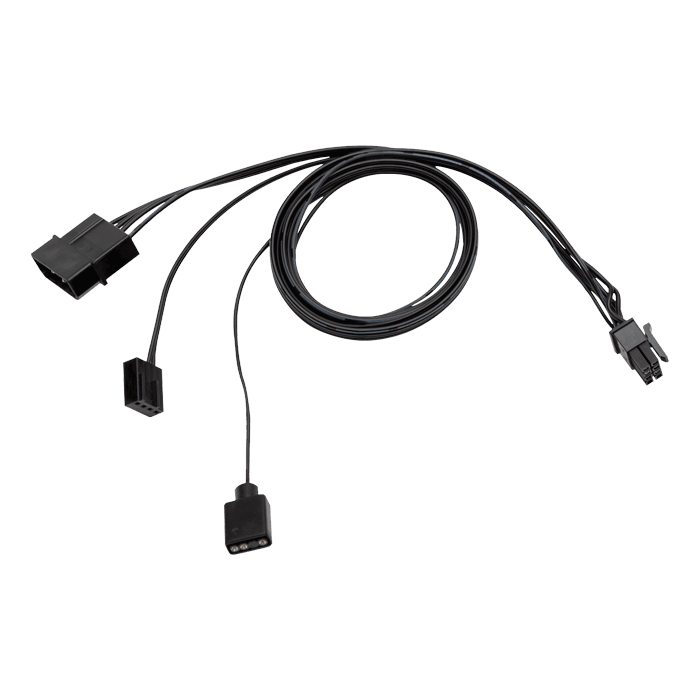

ekwb EK-Loop OmniLink Molex Power (3831109897461). EK-Loop OmniLink Molex Power cable is the starting point of the OmniLink cable harness with the necessary Molex power, D-RGB, and 4-Pin fan connectors. The OmniLink cable allows for easy transmission and distribution of 12V and 5V Power, PWM, TACHO, and D-RGB signals. The cable features a stylish black ribbon cable for easy build integration and cable management.
This cable can be installed without any modifications/re-pinning with any PSU while still providing the maximum 8.5A available on 5V and 12V by utilizing the Molex connector.
Content:
- EK-Loop OmniLink Molex Power cable
Technical Specifications:
- Molex Micro-fit 3.0 8-pin Female connector to:
- 1x Molex Connector 4pin (Power)
- 1x 4-Pin PWM 1 Source Female Fan Connector (TACHO, PWM)
- 1x 3-Pin D-RGB LED Source Female Connector (5V, Data, Blocked, Ground)
- Cable length: 500±10mm
- Color: Black
- Power Wire gauge: AWG20
- Signal Wire gauge: AWG22
- Molex Micro-fit Connector current rating: 8.5A
- Power Cable current rating: 8A
- Signal Cable current rating: 6A
EK-Loop OmniLink Molex Power cable is compatible with all EK OmniLink products, standard 4-pin PWM fan/pump motherboard headers, and standard 5V D-RGB (ARGB) connectors used by most major motherboard manufacturers.
