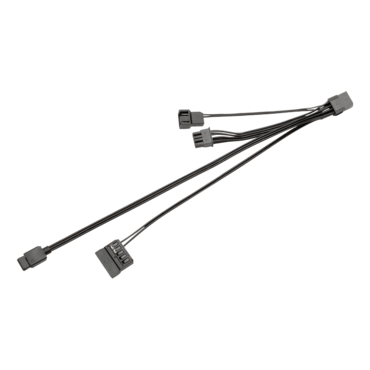

EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitt
- SKU: 17352650
- Manufacturer: EK
- MPN: 3831109897508
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
ekwb EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter (3831109897508). EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter cable allows users to connect D-RGB LED devices, SATA powered pumps and 4-Pin PWM fans to the OmniLink cable harness using their standard connectors. The OmniLink cable allows for an easy transmission and distribution of +12V and +5V Power; PWM, TACHO, and D-RGB signals. The cable features a stylish black ribbon cable for easy build integration and cable management.
Content:
- EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter cable
Technical Specifications:
- Molex Micro-fit 3.0 8-pin Male connector to:
- 1x Molex Micro-fit 3.0 8-pin Female Connector
- 1x SATA Power Female Connector (Ground, +12V)
- 1x 4-Pin PWM 2 Fan Male Connector (Ground, +12V, TACHO, PWM)
- 1x 3-Pin D-RGB LED Female Connector (+5V, Data, Blocked, Ground)
- Cable length: 250±10mm
- Color: Black
- Power Wire gauge: AWG20
- Signal Wire gauge: AWG22
- Molex Micro-fit Connector current rating: 8.5A
- Power Cable current rating: 8A
- Signal Cable current rating: 6A
EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter cable is compatible with all EK OmniLink products, PWM fan/pump speed control technology, and all popular D-RGB sync technologies from major motherboard manufacturers (if the header is supported).
Only the PWM 2 signal is accessible with this OmniLink splitter cable, which is intended to control the pump speed. For the PWM2 signal to work, the the EK-Loop OmniLink 6-Pin Power (dual PWM) cable must also be used. It’s primarily used for adding a distro plate/combo into omnilink and consolidating all of the connectors into the harness.
For PWM2 signal to work, EK-Loop OmniLink 6-Pin Power (dual PWM) cable must be also used.
