EK-Pro Manifold 2CPU 6GPU - Acetal
- SKU: 16674091
- Manufacturer: EK
- MPN: 3831109817261
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

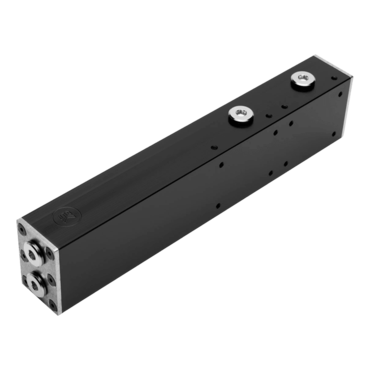

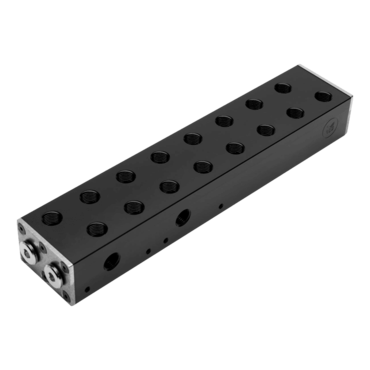

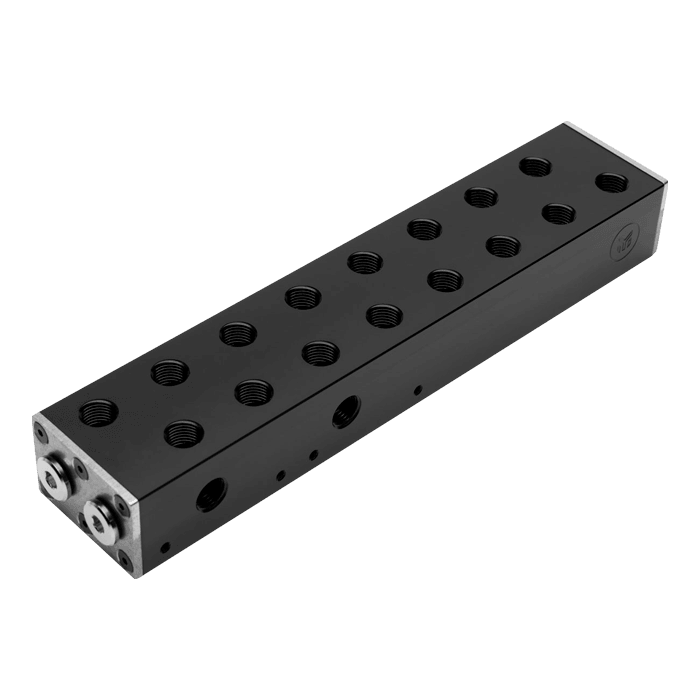

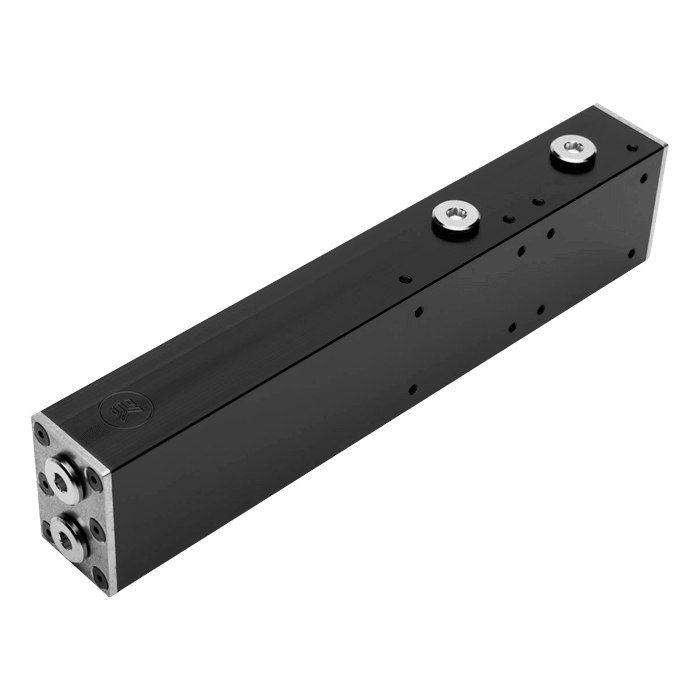

EK-Pro Manifold 2CPU 6GPU - Acetal
ekwb EK-Pro Manifold 2CPU 6GPU (3831109817261). The EK-Pro Manifold is a purpose-made coolant delivery system for multiple water blocks in workstation systems. It offers perfect coolant distribution by using multiple industry-standard G1/4" In and Out ports. The EK-Pro Manifold 2CPU 6GPU can support two CPU and six GPU water blocks in parallel or semi-parallel setups.
Technical specifications:
- Size (HxWxD): 139 x 54 x 36mm (without the mounting system)
Enclosed:
- EK-Pro Manifold unit
- Allen key 6mm (1pc)
- Allen key 2,5mm (1pc)

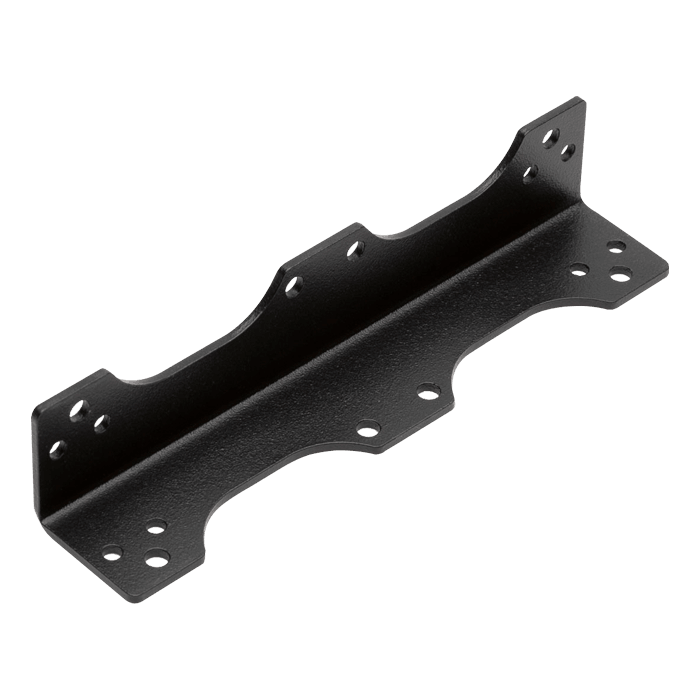

- Manifold mounting (1pc)
- Screws M4 x 6mm DIN7984 (4pcs)
- G1/4 Plugs (7pcs)
PLEASE NOTE:
- The manifold does not replace the role of the reservoir. A standalone reservoir is still recommended to be used.
- Please note that only seven G1/4 plugs are supplied with the manifold unit. If any of the In and Out ports are planned to be unused, additional plugs are needed for operation. Spare G1/4 plugs are sold separately.
Additional Info
| Material / Design / Color option | Acetal |
| Threads | G1/4 |
