EK-Pro Pump Reservoir Manifold X6 D5 - Acetal
- SKU: 17147115
- Manufacturer: EK
- MPN: 3831109910399
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

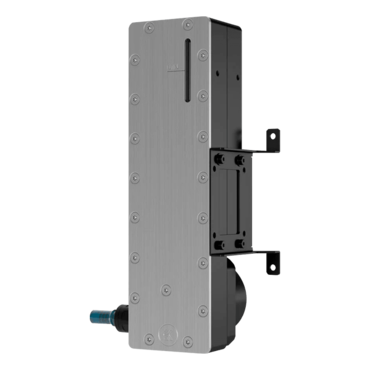

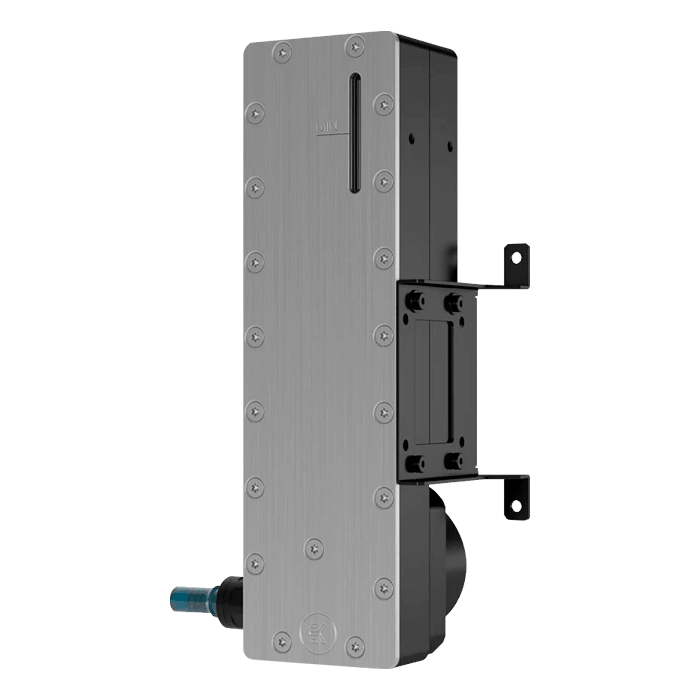

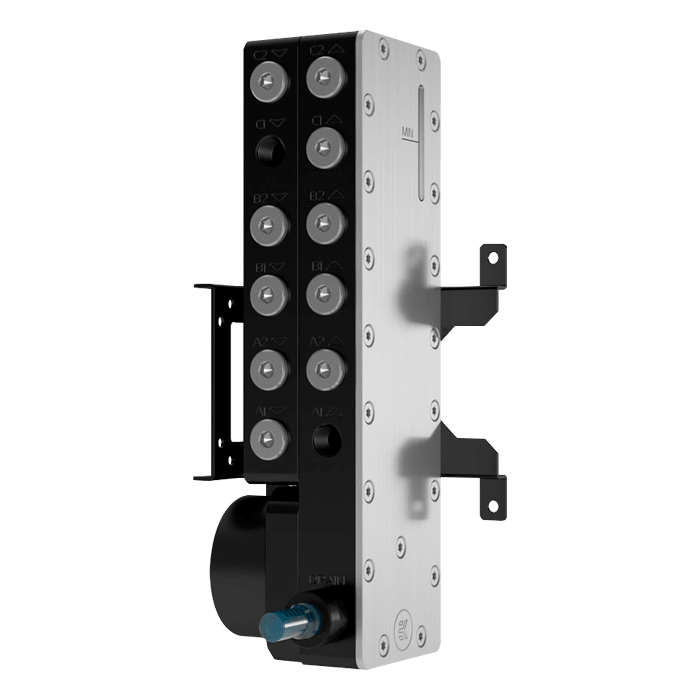

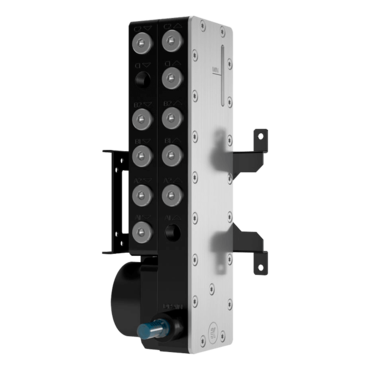

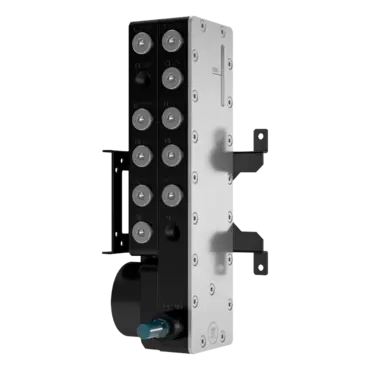

ekwb EK-Pro Pump Reservoir Manifold X6 D5 (3831109910399). EK-Pro Pump Reservoir Manifold X6 D5 - Acetal is a 3-in-1 product that acts as a pump, reservoir, and manifold. The X6 in the name designates the number of components it can directly connect as a manifold, and D5 indicates a single D5 pump pushing the liquid around the loop.
Reservoir:
- Dimensions with the attached pump (W x D x H): 75 x 115 x 235mm
- Dimensions with the attached QDC (W x D x H): 75 x 115 x 235mm
Pump Motor Technical Specifications:
- Motor: electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9m
- Maximum flow: 1500L/h
- Maximum system temperature: 60°C
- Materials: Stainless Steel, PPS-GF40, EPDM O-rings, Aluminum Oxide, Hard Coal
- Power connector: SATA and 4-pin PWM FAN connector
Operational Regime:
- PWM duty cycle: ~ 20-100%
- Default behavior: runs at 100% duty cycle when no PWM feedback signal is present
Enclosed:
- EK-Pro Combo unit
- Mounting Bracket
- QDC (quick disconnect fitting
- 1m ZMT tube
- Allen key 6mm (1pc)
- Allen key 2,5mm (1pc)
- G1/4 Plugs (11pcs)
| Threads | G1/4 |
