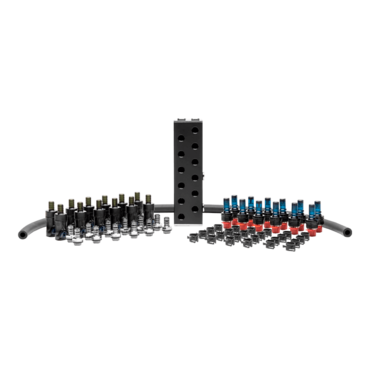

EK-Pro Quick Disconnect Manifold 2CPU 4GPU Kit

Technical specifications:

EK-Pro Manifold 2CPU 4GPU - Acetal

- Size (HxWxD): 204 x 54 x 36mm (without the mounting system)
- Materials: POM (Acetal) and Stainless-Steel

CPC Quick Disconnect Couplings

- Operating temperature: -17°C to 85°C
- Main component and latch material: PPSU
- Valve and external spring material: Stainless Steel
- Seals: EPDM
- Barb OD: 9,5mm
- Thread: G1/4”
- Flow coefficient: 1.37 (~2.11PSI pressure drop at 2GPM flow rate)

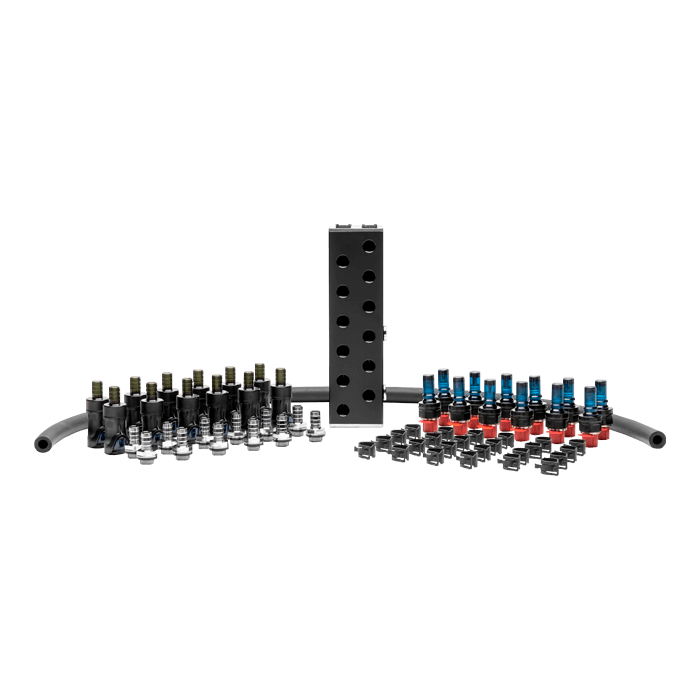

Enclosed:

- EK-Pro Manifold unit 2CPU 4GPU – Acetal (1pcs)
- EK-Pro Manifold mounting hardware
- CCPC Quick Disconnect Coupling – Male – G1/4” Thread (12pcs)
- CPC Quick Disconnect Coupling – Female – Barb 10mm OD (12pcs)
- EK-Pro Fitting – Barb 10mm OD – G1/4” Thread (12pcs)
- Tube Clamps – Black (24pcs)
- EK-Tube ZMT Matte Black 15,9/9,5mm (6m)

Made in Slovenia - EU!

PLEASE NOTE:

• The manifold does not replace the role of the reservoir. The use of a standalone reservoir is still recommended.
• Please note that only seven G1/4 plugs are supplied with the manifold unit. If any of the In and Out ports are planned to be unused, additional plugs are needed for operation. Spare G1/4 plugs  are sold separately.
• Do not overtighten the CPC QDCs as it may result in damaged or stripped threads, rendering them nonfunctional.
