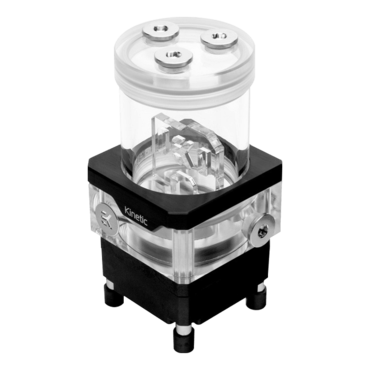

EK-Quantum Kinetic TBE 120 VTX PWM D-RGB - Plexi
- SKU: 13376860
- Manufacturer: EK
- MPN: 3831109825303
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
ekwb EK-Quantum Kinetic TBE 120 VTX PWM D-RGB (3831109825303). EK-Quantum Kinetic TBE 120 VTX PWM D-RGB combo unit is the new pump-reservoir assembly that is based upon a new VTX pump that is DDC mount compatible. The new Kinetic combo units are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation and a new VTX pump that has a small footprint, high performance, and requires no additional cooling! The reservoir is equipped with a total of six G1/4“ ports so that users can choose the most optimal setup for their liquid cooling loops.
Pump electrical and mechanical properties:
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 18W
- Maximum pressure head: 5.3m
- Maximum flow: 1100L/h
- Maximum system temperature: 60°C
- Materials: NORYL GFN2, EPDM O-rings, Copper Coils, Stainless Steel Shaft, Graphite Bushing
- Power connector: 4-Pin Molex and 4-Pin PWM FAN connector
Technical specifications:
- Reservoir diameter 60mm
- Reservoir free volume: ~115mL
- Overall unit height: 120mm
- Mounting hole pattern: 50x50mm
- D-RGB connector standard 3-pin (5+, Digital, Blocked, Ground)
Operational regime:
- PWM duty cycle: ~ 11-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present
Enclosed:
- EK-Quantum Kinetic TBE 120 VTX PWM D-RGB
- Mounting mechanism
- Installation manual
Made in Slovenia - EU!
VTX Pump motor made in the EU!
PLEASE NOTE:
- The VTX pump is water lubricated, in other words, it uses a wet rotor design. Therefore, it is strongly recommended not to run the pump dry.
- This product should NOT be installed with any aluminum Fluid Gaming parts!
Additional Info
| Threads | G1/4 |
