| Mechanical and electrical specifications: |
- RPM range: 550 – 2200 RPM
- Rated voltage: 12V
- Power draw: 2,68W
- PWM duty cycle: 20-100%
- Shaft bearing: FDB (Fluid Dynamic Bearing)
- Bearing durability: 70.000 hours (MTBF at 25?)
- Dimensions: 120mm x 120mm x 27mm
- Fan cable length: 100mm
- Fan connector: Micro-fit 8-pin connector
- Extender cable length: 500mm
|
| Performance characteristics: |
- Max Air Flow: 72,95 CFM = 123.94 m3/h
- Static Pressure: 3,05 mm H20 = 29,91 Pa
- Noise Level: 33,2 dBA (max. RPM)
|
| Enclosed: |

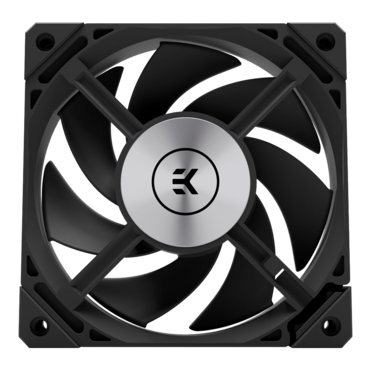

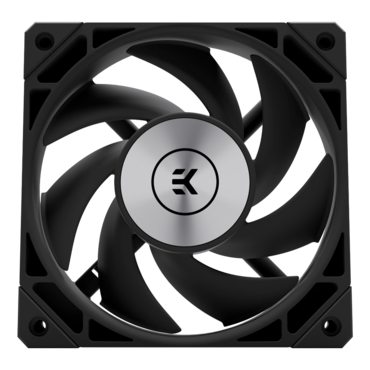

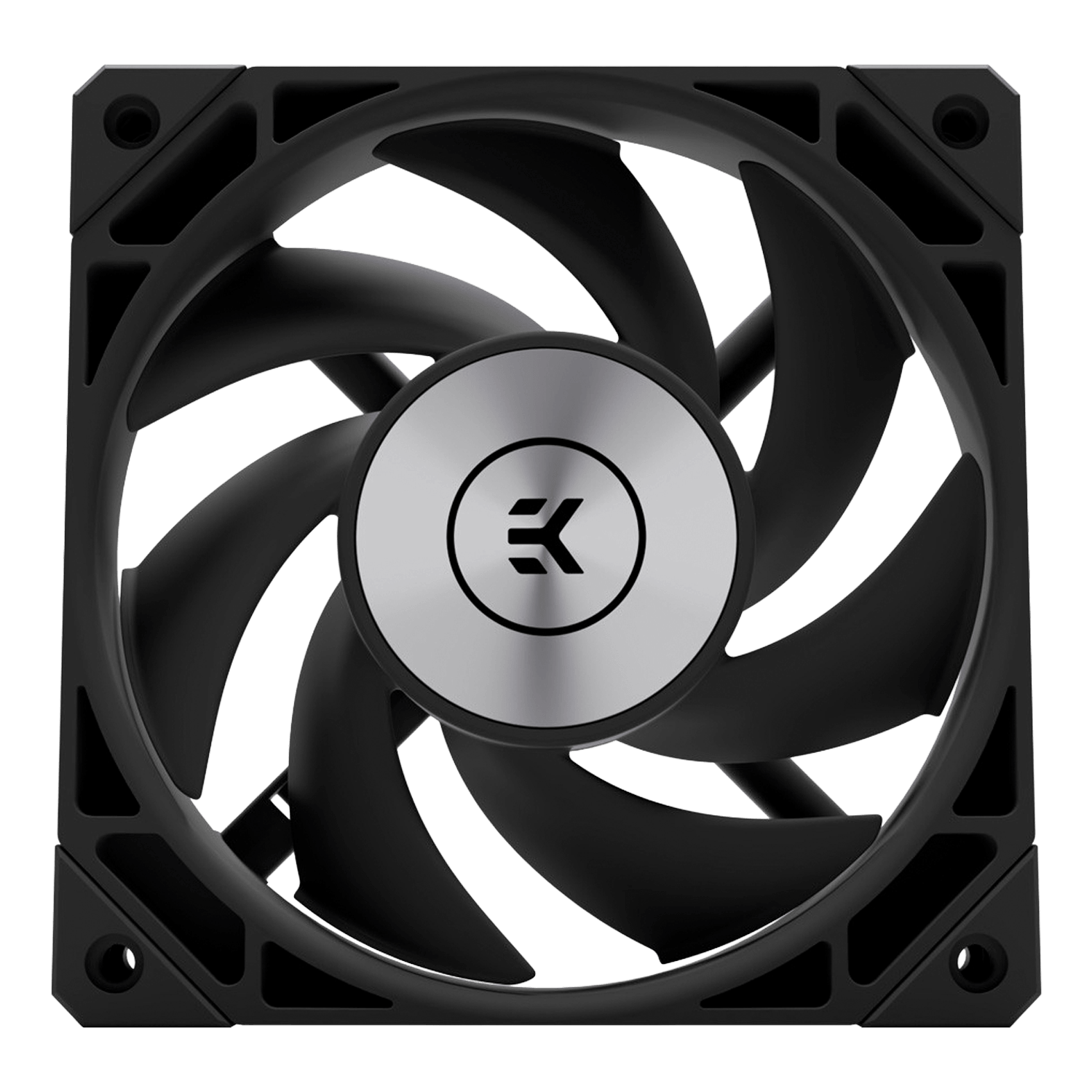

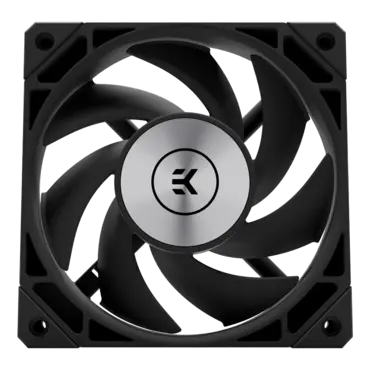

- 1x EK-Quantum Phase 120 - Black (550-2200 rpm)
- 1x Cable extender (PWM+RGB)
- 4x Self-tapping case screws
|
