EK-Quantum Reflection² MEG Prospect 700R D-RGB - Plexi
- SKU: 15202259
- Manufacturer: ekwb
- MPN: 3831109859797
- Availability: LOW STOCK

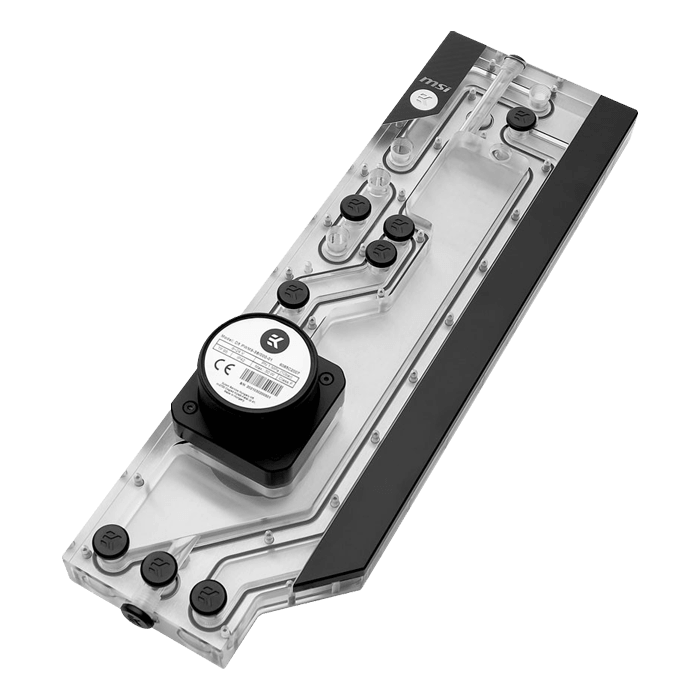

ekwb EK-Quantum Reflection² MEG Prospect 700R D-RGB (3831109859797). EK-Quantum Reflection² MEG Prospect 700R D-RGB - Plexi is a water cooling reservoir, routing, and pump solution made to fit award-winning MSI MEG Prospect 700R and 700RL cases. This "distro plate" is specifically designed to provide an advanced water cooling solution with a market-leading D5 pump for users who are building custom loop liquid cooling solutions in these mid-tower gaming cases.
Reservoir:
- Dimensions with the attached pump (W x D x H): 130 x 77 x 415mm
- Reservoir volume: ~310ml
- D-RGB LED count: 19
- D-RGB cable length: 450mm
- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
Technical specifications:
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9m
- Maximum flow: 1500L/h
- Maximum system temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: SATA and 4-pin PWM FAN connector
Operational regime:
- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present
Enclosed:
- EK-Quantum Reflection² MEG Prospect 700R D-RGB - Plexi
- Mounting mechanism and tools
- 12x MS - Quantum Plug - Ni (preinstalled)
- 10x EK-Quantum Torque Plug Cover - Black (preinstalled)
| Material / Design / Color option | Plexi |
| Threads | G1/4 |
