EK-Quantum Reflection² PC-O11D EVO XL D5 PWM D-RGB - Plexi
- SKU: 16642755
- Manufacturer: EK
- MPN: 3831109908532
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

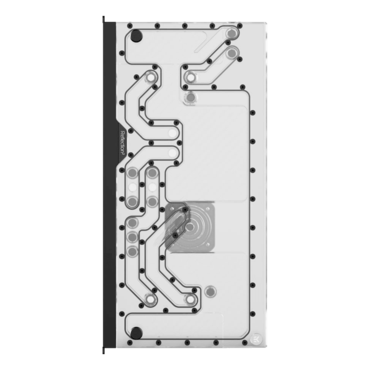

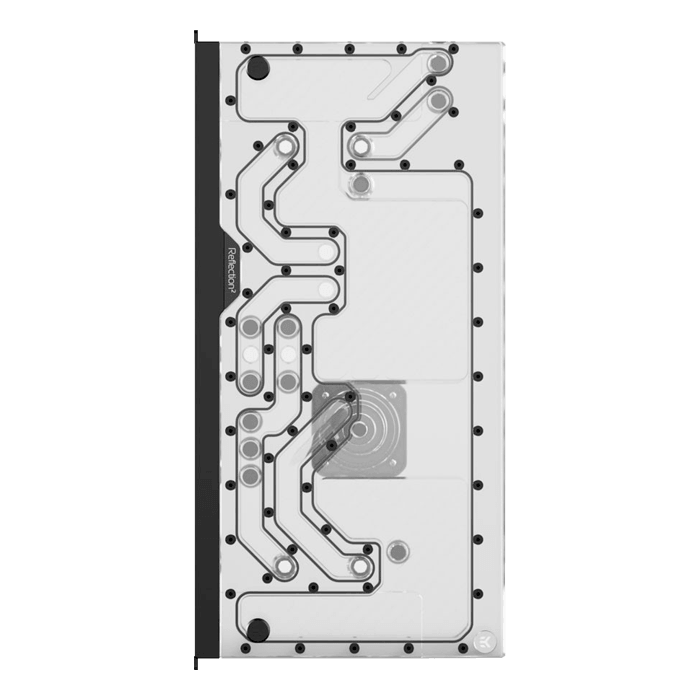

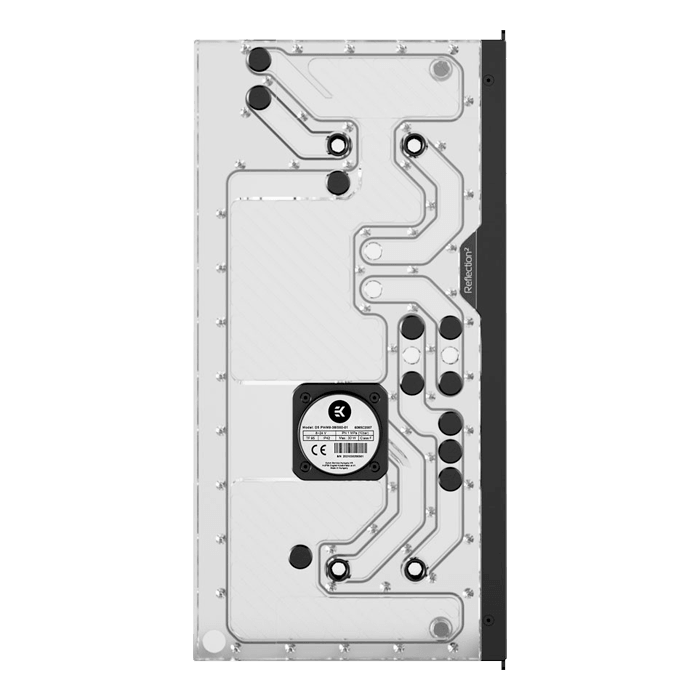

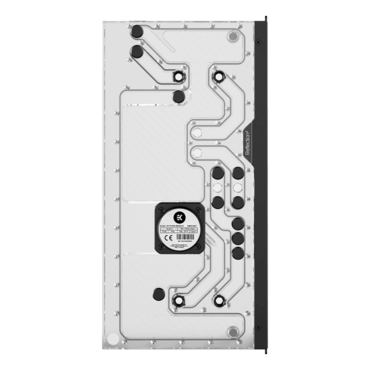

ekwb EK-Quantum Reflection² PC-O11D EVO XL D5 PWM D-RGB (3831109908532) is a custom water cooling reservoir, routing, and pump solution that seamlessly fits into the front of the Lian Li O11D EVO XL case. This waterway is also equipped with 5 innovative push-in ports that come with female G1/4? threaded adapters. The idea is that a user can assemble the whole radiator + fittings + tubing and use these push-in adapters to simply slide it into the distro plate.
- Top: EK-Quantum Surface P420 (X420 in limited motherboard tray configurations)
- Bottom: EK-Quantum Surface X420
- Side: EK-Quantum Surface P420
Reservoir:
– Dimensions with the attached pump (W x D x H): 230 x 75 x 472mm
– Reservoir volume: ~525ml
– G1/4" port count: 16
– D-RGB LED count: 24
– D-RGB cable length: 500mm
– D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
Pump Motor Technical Specifications:
– Motor: electronically commuted spherical motor
– Rated voltage: 12V DC
– Power consumption: 23W
– Maximum pressure head: 3.9m
– Maximum flow: 1500L/h
– Maximum system temperature: 60°C
– Materials: Stainless Steel, PPS-GF40, EPDM O-rings, Aluminum Oxide, Hard Coal
– Power connector: SATA and 4-pin PWM FAN connector
Operational Regime:
– PWM duty cycle: ~ 20-100%
– Default behavior: runs at 100% duty cycle when no PWM feedback signal is present
Enclosed:
- EK-Quantum Reflection² PC-O11D EVO XL D5 PWM D-RGB- All necessary mounting screws
- 5x Torque Push-in ports
- 1x 2mm Allen Key
- 1x EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- 13x Nickel-plated brass plugs
- 13x EK-Quantum Torque Plug cover - Black
Made in Slovenia - EU!
