EK-Quantum Reflection² PC-O11D Mini D5 PWM D-RGB – Plexi

Quantity:
  • SKU: 15068031
  • Manufacturer: ekwb
  • MPN: 3831109895504
  • Availability: CONTACT US
Starting At
$438.13
EK-Quantum Reflection² PC-O11D Mini D5 PWM D-RGB – Plexi

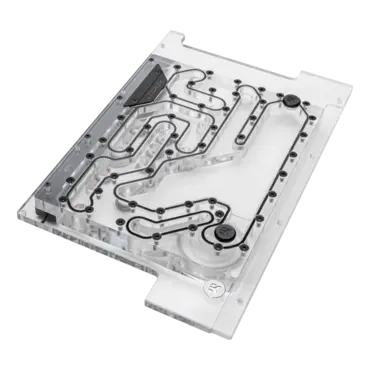

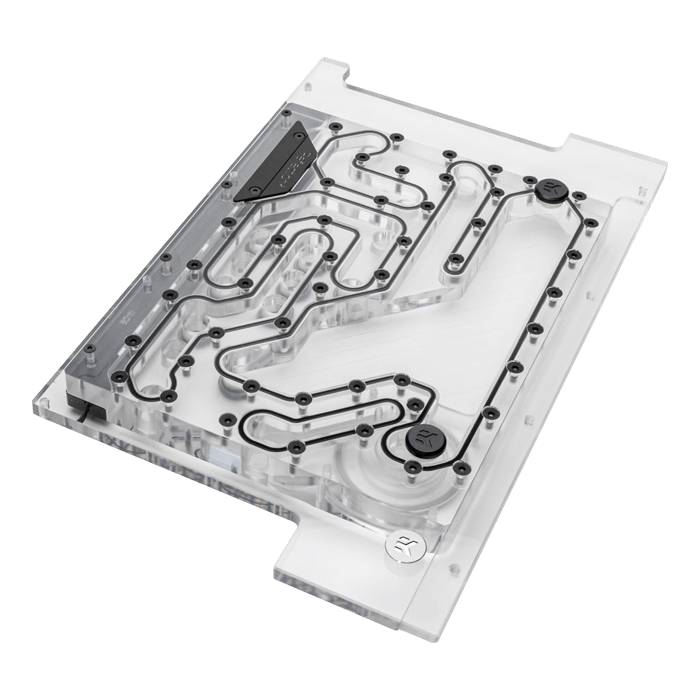

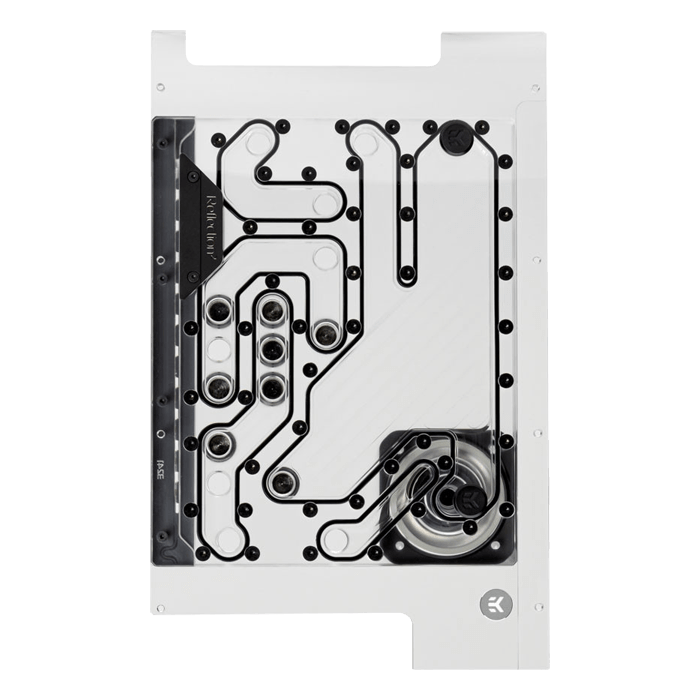

ekwb EK-Quantum Reflection² PC-O11D Mini D5 PWM D-RGB (3831109895504). The EK-Quantum Reflection² PC-O11D MINI D5 PWM D-RGB, a custom-designed water cooling distribution plate that serves as a reservoir, coolant routing, and pump solution. This “distro plate” is specifically designed to fit in the front of the Lian Li O11D MINI case to provide an exquisite aesthetical showpiece and an advanced water cooling solution with a genuine D5 pump already installed.

Reservoir:
– Dimensions with the attached pump (H x W x D): 332 x 206 x 76 mm
– Reservoir volume: ~264 ml
– D-RGB LED count: 12
– D-RGB cable length: 500mm
– D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Pump Motor Technical Specifications:
– Motor: electronically commuted spherical motor
– Rated voltage: 12V DC
– Power consumption: 23W
– Maximum pressure head: 3.9m
– Maximum flow: 1500L/h
– Maximum system temperature: 60°C
– Materials: Stainless Steel, PPS-GF40, EPDM O-rings, Aluminum Oxide, Hard Coal
– Power connector: SATA power and 4-Pin PWM FAN connector

Operational Regime:
– PWM duty cycle: ~ 20-100%
– Default behavior: runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:

– EK-Quantum Reflection² PC-O11D Mini D5 PWM D-RGB - Plexi
– 1x Allen key 2.5mm
– 1x EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
– 8x Screw M4x8 DIN7991
– 10x MS - Quantum Plug - Ni (preinstalled)
– 10x EK-Quantum Torque Plug Cover - Black (preinstalled)

Made in Slovenia - EU!

Material / Design / Color option Plexi
Threads G1/4
