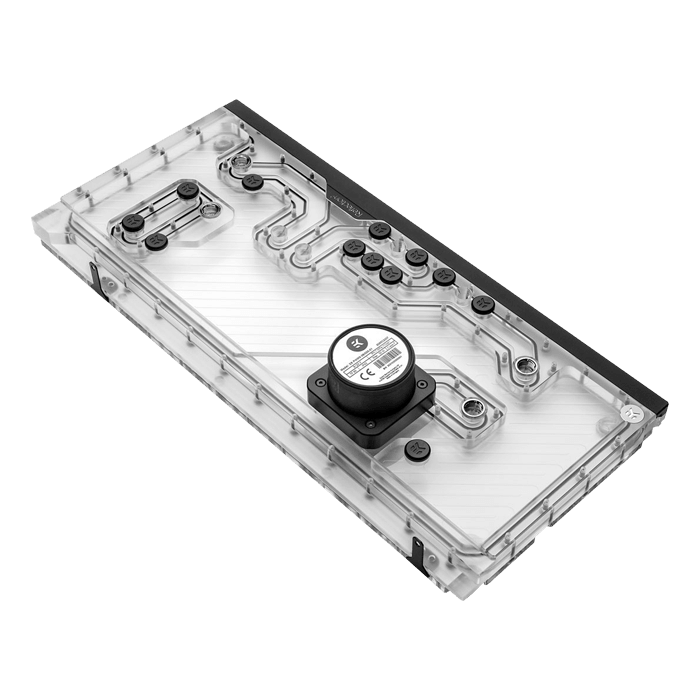

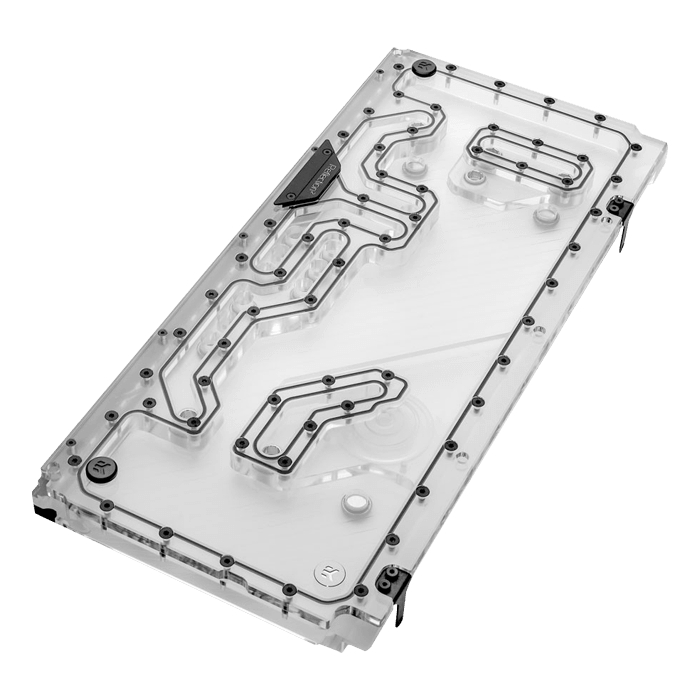

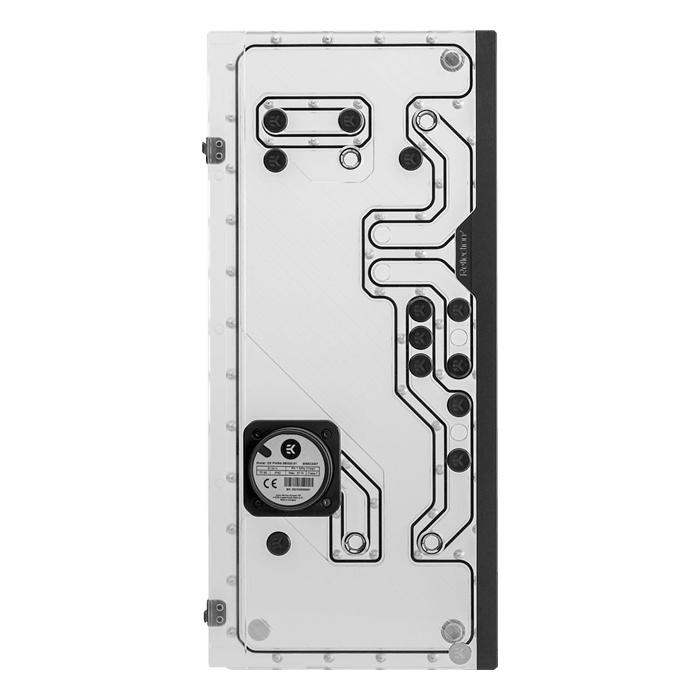

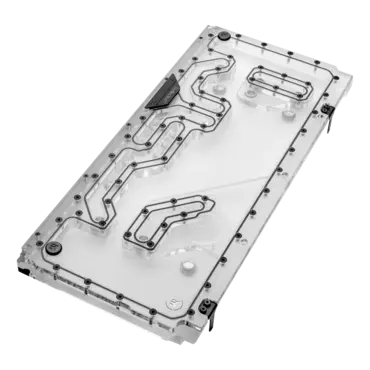

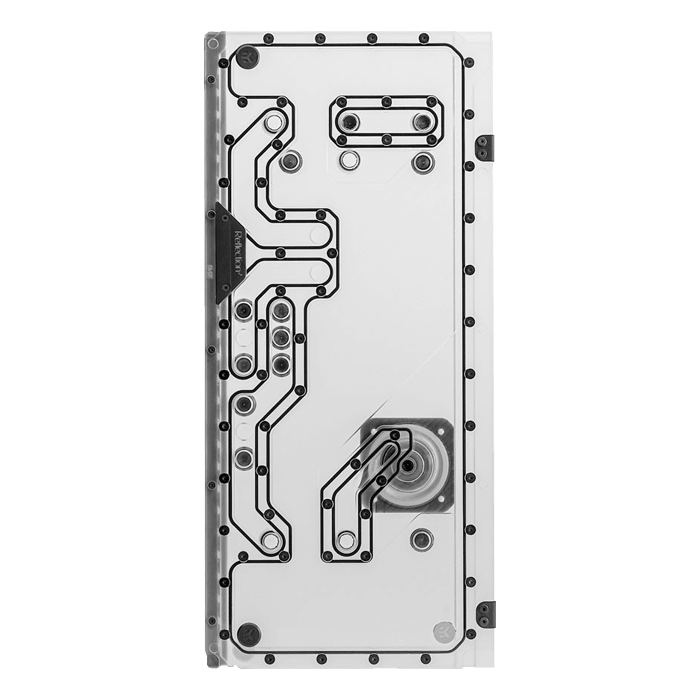

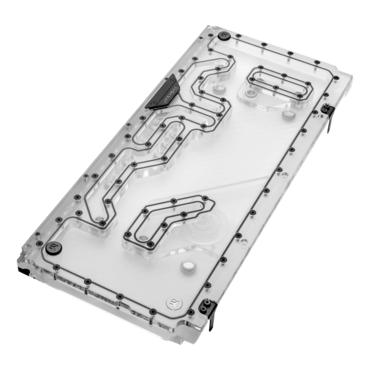

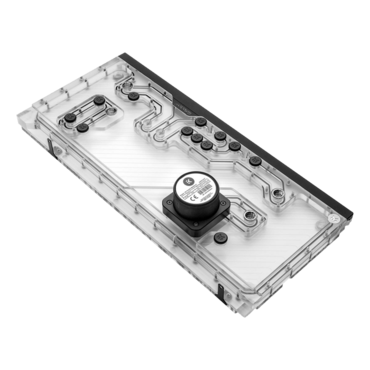

EK-Quantum Reflection² PC-O11D XL D5 PWM D-RGB - Plexi
- SKU: 15067900
- Manufacturer: EK
- MPN: 3831109892183
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
ekwb EK-Quantum Reflection² PC-O11D XL D5 PWM D-RGB (3831109892183). The EK-Quantum Reflection² PC-O11D XL D5 PWM D-RGB is a custom water cooling reservoir, routing, and pump solution that seamlessly fits into the front of the case. This waterway is also equipped with 6 innovative push-in ports that come with female G1/4? threaded adapters. The idea is that a user can assemble the whole radiator + fittings + tubing and use these push-in adapters to simply slide it into the distro plate.
Reservoir:
– Dimensions with the attached pump (W x D x H): 215 x 68 x 472mm
– Reservoir volume: ~787ml
– D-RGB LED count: 27
– D-RGB cable length: 800mm
– D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
Pump Motor Technical Specifications:
– Motor: electronically commuted spherical motor
– Rated voltage: 12V DC
– Power consumption: 23W
– Maximum pressure head: 3.9m
– Maximum flow: 1500L/h
– Maximum system temperature: 60°C
– Materials: Stainless Steel, PPS-GF40, EPDM O-rings, Aluminum Oxide, Hard Coal
– Power connector: SATA and 4-pin PWM FAN connector
Operational Regime:
– PWM duty cycle: ~ 20-100%
– Default behavior: runs at 100% duty cycle when no PWM feedback signal is present
Enclosed:
- EK-Quantum Reflection² PC-O11D XL D5 PWM D-RGB- All necessary mounting screws and a bottom radiator bracket
- 6x Female threaded adapters
- 1x 2.5mm Allen Key
- 1x 2mm Allen Key
- 1x EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- 14x Nickel-plated brass plugs
- 14x EK-Quantum Torque Plug cover - Black
Made in Slovenia - EU!
| Material / Design / Color option | Plexi |
| Threads |
G1/4 |
