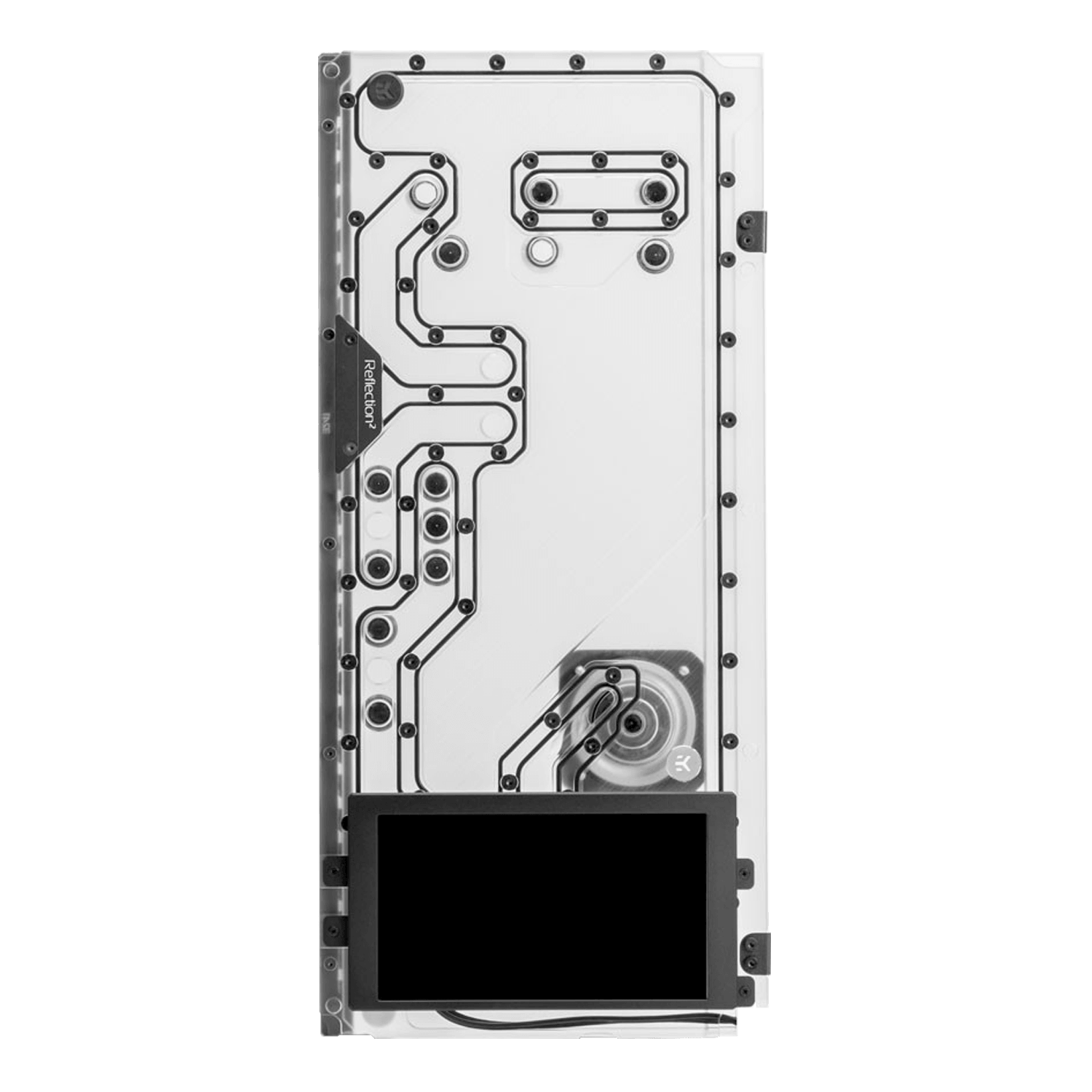

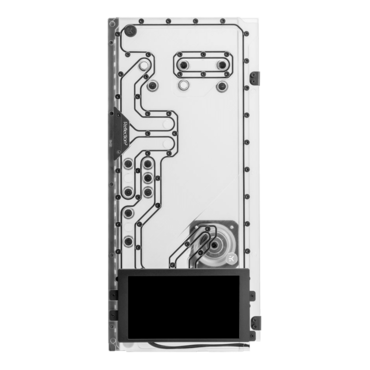

EK-Quantum Reflection² PC-O11D XL D5 PWM D-RGB - Screen Edition
- SKU: 18156068
- Manufacturer: EK
- MPN: 3831109894316
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
| Reservoir: |
– Dimensions with the attached pump (W x D x H): 215 x 80 x 472mm – Reservoir volume: ~787ml – D-RGB LED count: 27 – D-RGB cable length: 800mm – D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) |
| Pump Motor Technical Specifications: |
– Motor: electronically commuted spherical motor – Rated voltage: 12V DC – Power consumption: 23W – Maximum pressure head: 3.9m – Maximum flow: 1500L/h – Maximum system temperature: 60°C – Materials: Stainless Steel, PPS-GF40, EPDM O-rings, Aluminum Oxide, Hard Coal – Power connector: SATA and 4-pin PWM FAN connector |
| Screen Technical Specifications: |
– Panel Type: IPS – Resolution: 1024 x 600px – Diagonal: 7″ |
| Operational Regime: |
– PWM duty cycle: ~ 20-100% – Default behavior: runs at 100% duty cycle when no PWM feedback signal is present |
| Enclosed: |
- EK-Quantum Reflection² PC-O11D XL D5 PWM D-RGB - Screen Edition - All necessary mounting screws and a bottom radiator bracket - 6x Female threaded adapters - 1x 2.5mm Allen Key - 1x 2mm Allen Key - 1x EK-Loop Multi Allen Key (6mm, 8mm, 9mm) - 13x Nickel-plated brass plugs - 13x EK-Quantum Torque Plug cover - Black |
