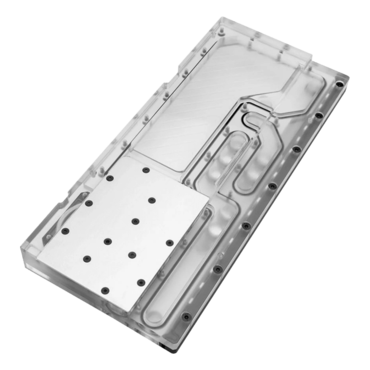

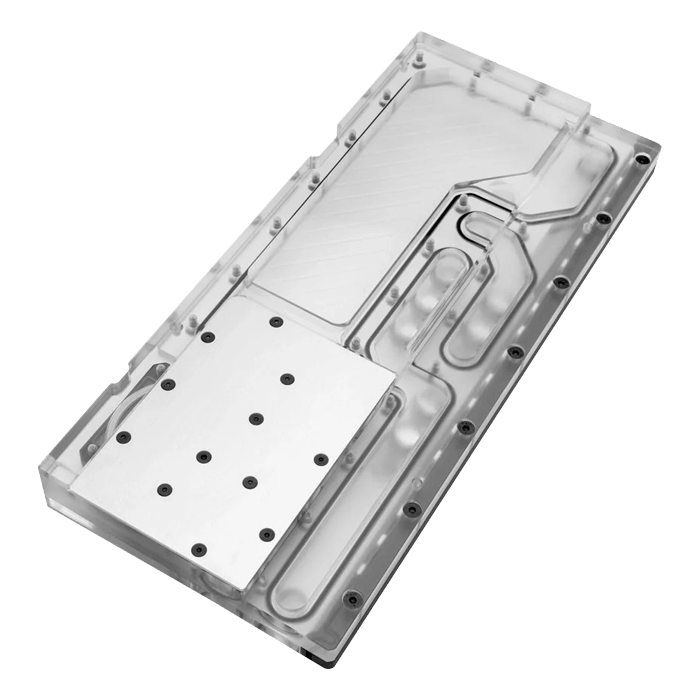

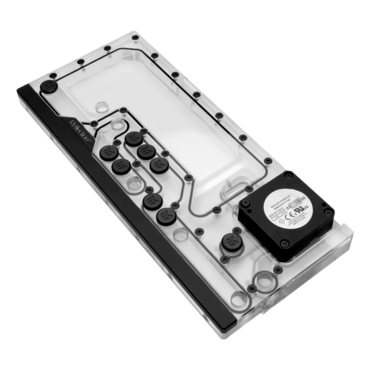

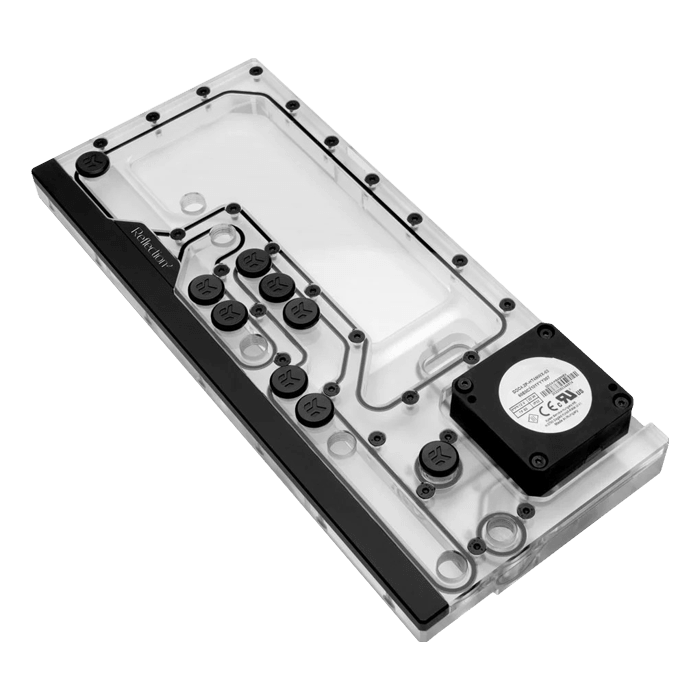

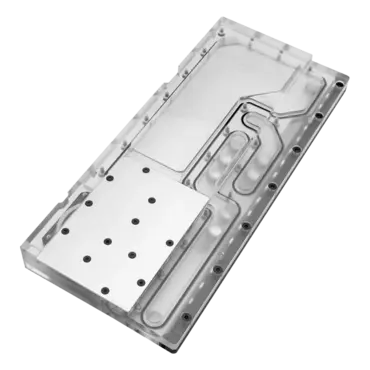

EK-Quantum Reflection² Torrent DDC 4.2 PWM D-RGB - Plexi
- SKU: 15501169
- Manufacturer: EK
- MPN: 3831109898345
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
ekwb EK-Quantum Reflection² Torrent DDC 4.2 PWM D-RGB (3831109898345). The EK-Quantum Reflection² Torrent DDC 4.2 PWM D-RGB – Plexi is a fully integrated water-cooling reservoir, coolant routing, and pump solution made to fit the Fractal Design Torrent case. This Reflection² distribution plate is EK-Matrix7 compatible.
Reservoir:
– Dimensions with the attached pump (W x D x H): 146 x 41 x 333mm
– Reservoir volume: ~234ml
– D-RGB LED count: 18
– D-RGB cable length: 450mm
– D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
Technical specifications:
– Motor: Electronically commuted ball bearing motor
– Rated voltage: 12V DC
– Power consumption: 20W
– Maximum head pressure: up to 5.2m
– Maximum flow rate: up to 1000L/h
– Maximum liquid temperature: 60°C
– Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminum oxide, hard coal
– Power connector: SATA power and 4-Pin PWM FAN connector for PWM / RPM readout
Operational Regime:
– PWM duty cycle: ~ 20-100%
– Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present
Enclosed:
- EK-Quantum Reflection² Torrent DDC 4.2 PWM D-RGB - Plexi
- Mounting mechanism and tools
- Metal radiator bracket
- 9x MS - Quantum Plug - Ni (preinstalled)
- 9x EK-Quantum Torque Plug Cover - Black (preinstalled)
Made in Slovenia - EU!
| Material / Design / Color option | Plexi |
| Threads | G1/4 |
