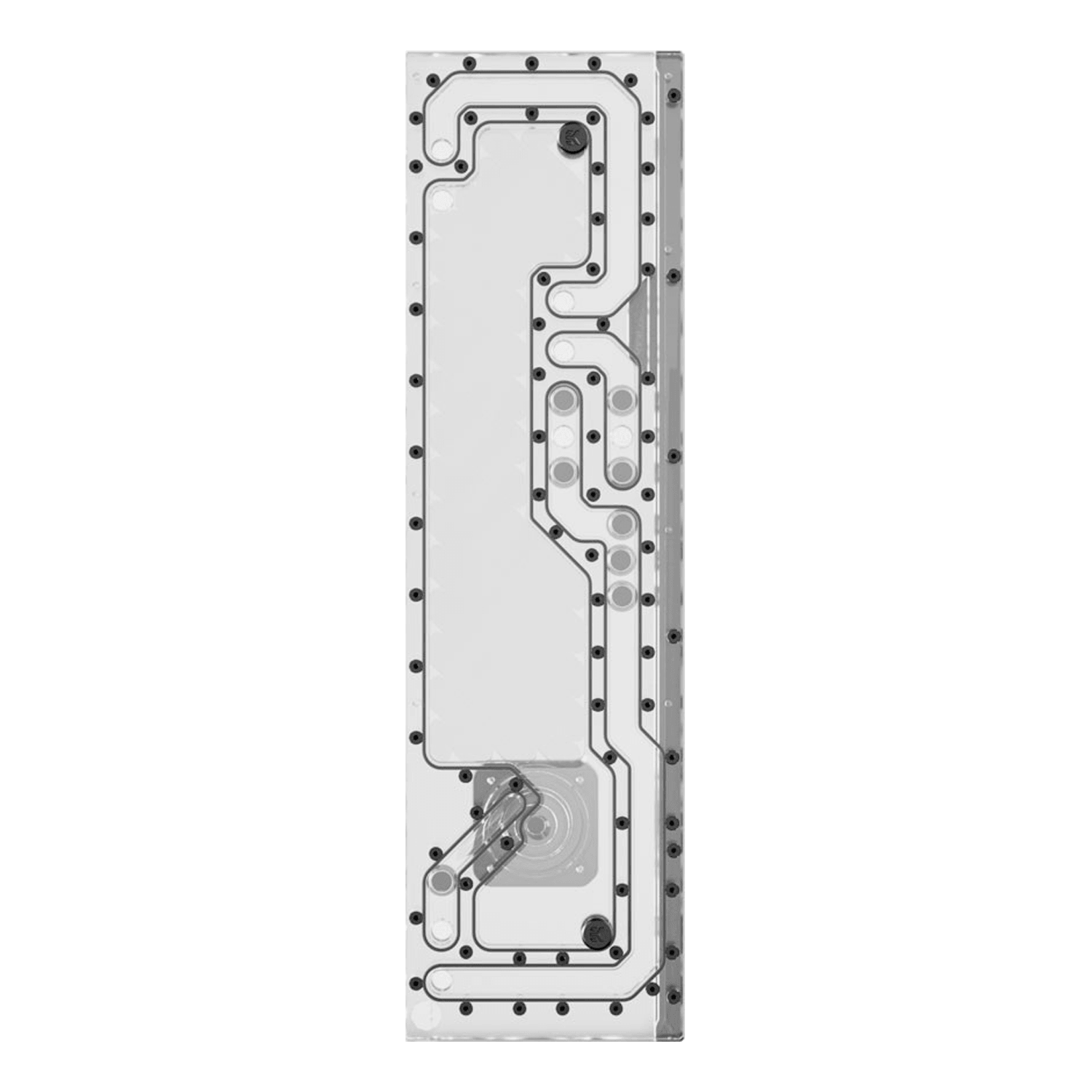

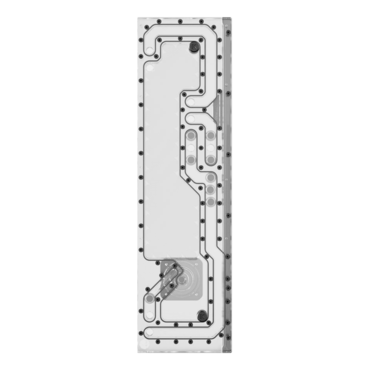

EK-Quantum Reflection² V3000 Plus D5 PWM D-RGB - Plexi
- SKU: 18160085
- Manufacturer: EK
- MPN: 3831109905708
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
| Reservoir |
- Dimensions with the attached pump (W x D x H): 157,5 x 29,5 x 555mm - Reservoir volume: ~550ml - D-RGB LED count: 32 - D-RGB cable length: 500mm - D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) |
| Pump Motor Technical Specifications: |
- Motor: electronically commuted spherical motor - Rated voltage: 12V DC - Power consumption: 23W - Maximum pressure head: 3.9m - Maximum flow: 1500L/h - Maximum system temperature: 60°C - Materials: Stainless Steel, PPS-GF40, EPDM O-rings, Aluminum Oxide, Hard Coal - Power connector: SATA and 4-pin PWM FAN connector |
| Operational Regime: |
- PWM duty cycle: ~ 20-100% - Default behavior: runs at 100% duty cycle when no PWM feedback signal is present |
| Enclosed: | - EK-Quantum Reflection² V3000 |
