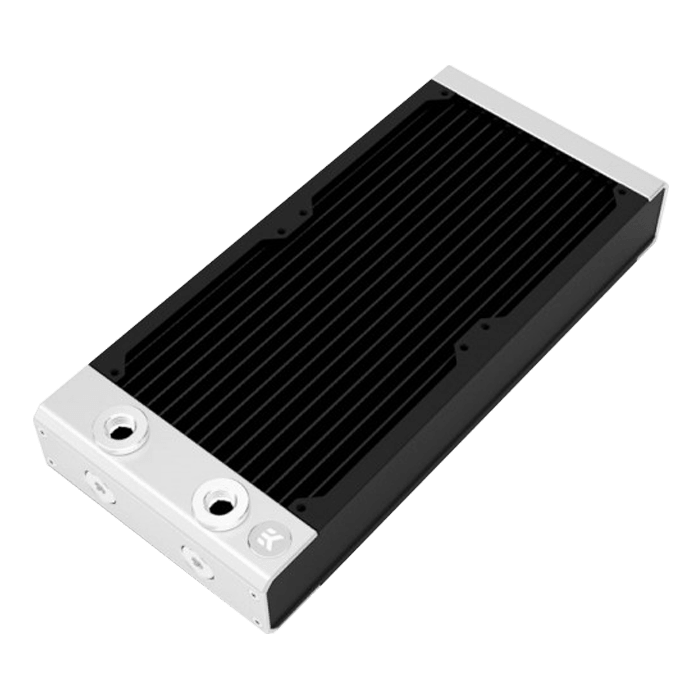

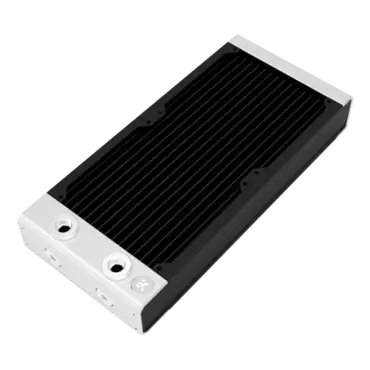

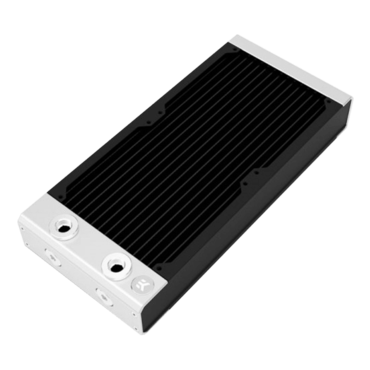

ekwb EK-Quantum Surface P240M (3831109838372). With a thickness of 44mm, the EK-Quantum P Series Surface radiators are the absolute all-rounders for low noise and high performance across the entire fan operational range. Equipped with a total of four G1/4“ threaded connection ports, it provides additional versatility during the loop planning process, while the fifth G1/4“ port located on the end-tank is an irreplaceable feature when it comes to draining the loop and air bleeding. A total of sixteen 2mm-wide copper tubes across the entire radiator length assure optimal coolant flow, putting no stress on your cooling loop. High-grade non-louvered copper fins with 18 FPI density provide the best balance between thermal transfer and air resistance, enabling optimal performance even at low-speed fan operation. To maximize cooling performance, a Push/Pull setup can be utilized on any P Series EK-Quantum Surface radiator.
Technical and Material Specifications:
- High-grade 99.9% copper fins
- Copper H90 tubing
- Brass H62 end tank chambers
- Stainless Steel side plates
- Extruded Aluminum Silver anodized end piece covers
- Brass nickel-plated extenders and plugs
Dimensions: 285 x 130 x 44mm (L x W x H)
Weight: 1.21kg
FPI: 18
Port threads: 5x G1/4"
Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar
Enclosed:
- EK-Quantum Surface P series radiator
- 8x Phillips Slotted M4x30mm for 25mm thick fans
- 8x Phillips Slotted M4x5mm for mounting the radiator directly to the case
- 6mm steel Allen (Hex) key
- 9mm steel Allen (Hex) key
Designed and Engineered in Slovenia
Made in China
Threads | G1/4 |
# of Fans | 2 |
Fan Dimension | 120mm |
