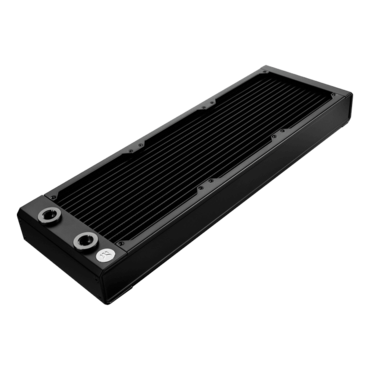

EK-Quantum Surface P360 - Black Edition
- SKU: 16036032
- Manufacturer: EK
- MPN: 3831109892060
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

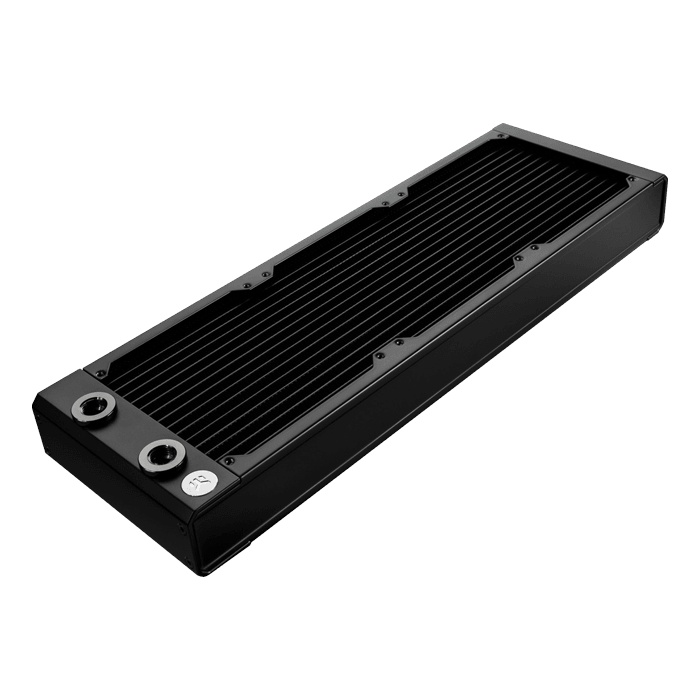

ekwb EK-Quantum Surface P360 (3831109892060). With a thickness of 44mm, the EK-Quantum P Series Surface radiators are the absolute all-rounders for low noise and high performance across the entire fan operational range. Black Edition Surface radiators are equipped with two G1/4“ threaded connection ports. A total of sixteen 2mm-wide copper tubes across the entire radiator length assure optimal coolant flow, putting no stress on your cooling loop. High-grade non-louvered copper fins with 18 FPI density provide the best balance between thermal transfer and air resistance, enabling optimal performance even at low-speed fan operation. To maximize cooling performance, a Push/Pull setup can be utilized on any P Series EK-Quantum Surface radiator.
Technical and Material Specifications:
- High-grade 99.9% copper fins
- Copper H90 tubing
- Brass H62 end tank chambers
- Stainless Steel side plates
- Extruded Aluminum Black end piece covers
- Brass nickel-plated adapters and plugs
Dimensions: 405 x 130 x 44mm (L x W x H)
Weight: 1.6kg
FPI: 18
Port threads: 2x G1/4"
Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar
Enclosed:
- EK-Quantum Surface P series radiator
- 12x Phillips Slotted M4x30mm for 25mm thick fans
- 12x Phillips Slotted M4x5mm for mounting the radiator directly to the case
- 6mm steel Allen (Hex) key
- 9mm steel Allen (Hex) key
Designed and Engineered in Slovenia
Made in China
| Material / Design / Color option | Black |
| Threads | G1/4 |
| # of Fans | 3 |
| Fan Dimension | 120mm |
| Radiator Size | 360mm |
