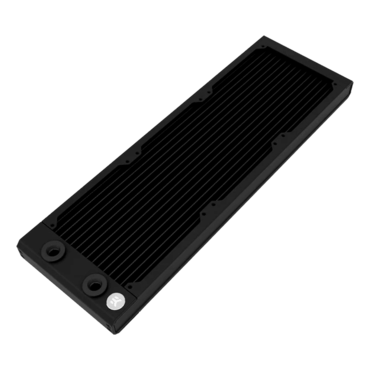

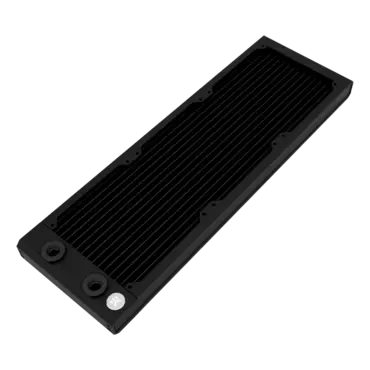

EK-Quantum Surface S360 - Black Edition
- SKU: 16673734
- Manufacturer: EK
- MPN: 3831109891483
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
ekwb EK-Quantum Surface S360 (3831109891483). With a thickness of only 30mm, the EK-Quantum S Series Surface radiators are ideal for space-constrained cases. Despite the reduced thickness, they deliver exceptional performance at very low and medium fan speeds. A total of 16 copper 2mm wide tubes across the entire length of the radiator assure optimal coolant flow putting no stress on your cooling loop. High-grade non-louvered copper fins with 20 FPI density provide the best balance between thermal transfer and air resistance for optimal performance even at low-speed fan operation. A Push/Pull setup on an S Series EK-Quantum Surface radiator is not something EK would recommend since it will not bring a proportional performance increase. If more cooling power is needed, adding additional radiators is the way to go.
Technical and Material Specifications:
- High-grade 99.9% copper fins
- Copper H90 tubing
- Brass H62 end tank chambers
- Stainless Steel side plates
- Extruded Aluminum Black end piece covers
- Brass nickel-plated adapters and plugs
- Dimensions: 405 x 130 x 30mm (L x W x H)
- Weight: 0.95kg
- FPI: 20
- Port threads: 2x G1/4"
- Fan compatibility: 120x120x25mm fan
- Pressure tested: 1bar
Enclosed:
- EK-Quantum Surface S series radiator
- 12x M4x30mm for 25mm thick fans
- 12x M4x5mm for mounting the radiator directly to the case
PLEASE NOTE:
- Use of the improperly long screws may result in piercing of the radiator core and irreparably damage the product. Such misuse is not covered by the product warranty!
- This product should NOT be installed with any aluminum parts!
- The radiator fins are made of copper, which is orange in nature. When painting the fins, a very thin layer of paint is applied not to reduce their thermal transfer capabilities. This is why the radiator fins are visibly orange when looking at them from a high angle.
Additional Info
| Material / Design / Color option | Black |
| Threads | G1/4 |
| # of Fans | 3 |
| Fan Dimension | 120mm |
| Radiator Size | 360mm |
