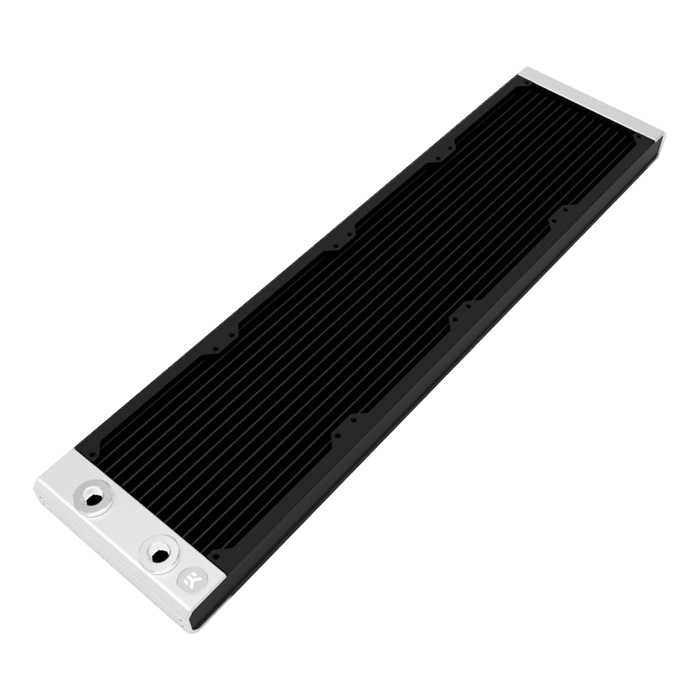

EK-Quantum Surface S480 - Black

  • SKU: 15006452
  • Manufacturer: EKWB
  • MPN: 3831109838211
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At

Technical and Material Specifications:

- High-grade 99.9% copper fins
- Copper H90 tubing
- Brass H62 end tank chambers
- Stainless Steel side plates
- Extruded Aluminum Silver anodized end piece covers
- Brass nickel-plated extenders and plugs

Dimensions: 525 x 130 x 30mm (L x W x H)
Weight: 1.17kg
FPI: 20
Port threads: 2x G1/4"
Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar


- EK-Quantum Surface S series radiator
- 16x Phillips Slotted M4x30mm for 25mm thick fans
- 16x Phillips Slotted M4x5mm for mounting the radiator directly to the case
- 6mm steel Allen (Hex) key
- 9mm steel Allen (Hex) key

Designed and Engineered in Slovenia

Made in China


  • Use of the improperly long screws may result in piercing of the radiator core and irreparably damage the product. Such misuse is not covered by the product warranty!
  • This product should NOT be installed with any aluminum parts!

Additional Info

Threads G1/4
# of Fans 4
Fan Dimension 120mm
