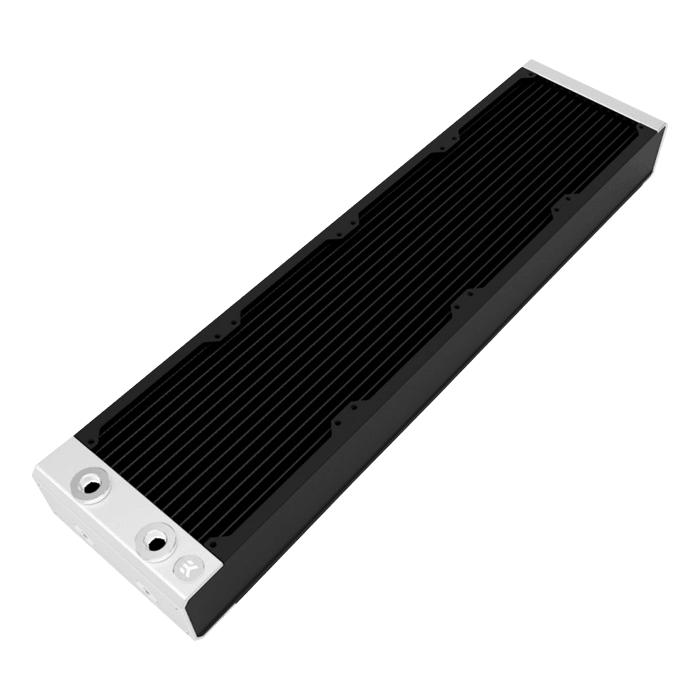

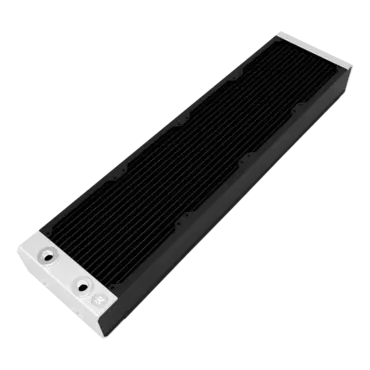

EK-Quantum Surface X480M - Black

  • SKU: 15120990
  • Manufacturer: ekwb
  • MPN: 3831109838778
  • Availability: LOW STOCK
Starting At
EK-Quantum Surface X480M - Black

ekwb EK-Quantum Surface X480M (3831109838778). For those who demand the most cooling power out of an EK-Quantum Surface radiator, the 58mm-thick X Series is the right choice. These thick radiators will benefit the most from medium and high-speed fans or even a Push/Pull setup. Equipped with a total of four G1/4“ threaded connection ports, the X Series provides additional versatility during the loop planning process. The fifth G1/4“ port located on the end-tank is an irreplaceable feature when it comes to draining the loop and air bleeding. A total of sixteen 2mm wide copper tubes across the entire radiator ensure optimal coolant flow, putting no stress on your cooling loop. High-grade non-louvered copper fins with 18 FPI density provide the best balance between thermal transfer and air resistance. EK doesn't recommend using slow-running fans on X Series EK-Quantum Surface radiators as they require adequate airflow to remove more heat than they absorb in their thick core.

Technical and Material Specifications:

- High-grade 99.9% copper fins
- Copper H90 tubing
- Brass H62 end tank chambers
- Stainless Steel side plates
- Extruded Aluminum Silver anodized end piece covers
- Brass nickel-plated extenders and plugs

Dimensions: 525 x 130 x 58mm (L x W x H)
Weight: 2.57kg
FPI: 18
Port threads: 5x G1/4"
Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar


- EK-Quantum Surface P series radiator
- 16x Phillips Slotted M4x30mm for 25mm thick fans
- 16x Phillips Slotted M4x5mm for mounting the radiator directly to the case
- 6mm steel Allen
- 9mm steel Allen

Designed and Engineered in Slovenia
Made in China

Threads G1/4
# of Fans 4
Fan Dimension 120mm
